User Manual for IGM 141-M3M Power Feeder

Quick guide from the manual

The IGM 141-M3M Power Feeder is designed for feeding wood into woodworking machinery. This manual provides essential information for installation, operation, and maintenance. Always keep this manual in the vicinity of the machine for quick reference.

Safety instructions

• Always wear safety eyewear, hearing protection, and respiratory protection in dusty environments.
• Keep hands away from rotating parts.
• Ensure the machine is on a stable surface and adequately lit.
• Never leave the machine unattended while running.
• Always switch off the feeder before switching off the machine being fed.
• Disconnect the power cord before performing any repairs or adjustments.
• Operate only in temperatures between +5°C and +40°C.

Specifications

• Motor power: 95 W (230V)
• Arm reach: 260 mm
• Max. workpiece height: 150 mm
• Number of rollers: 3
• Roller size: 76 x 30 mm
• Feed speed: 2 - 12 m/min
• Weight with stand: 10.5 kg

Assembly and mounting

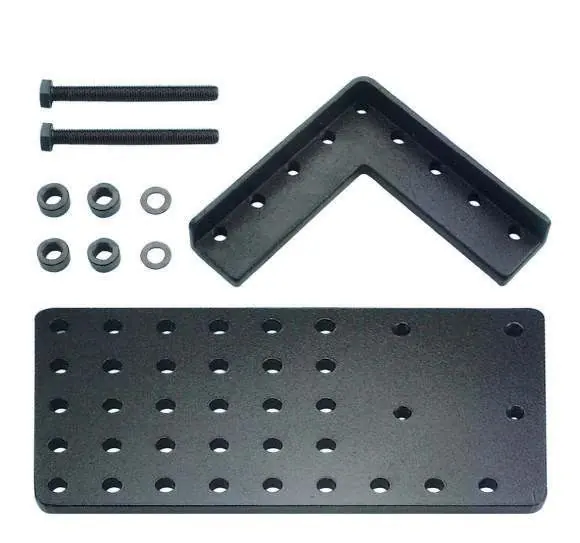

The machine is supplied unassembled. You can mount the feeder to a workbench using the provided 1:1 template or use a quick-fit universal plate (not included).

• Mounting to a workbench: Use the 1:1 template to mark holes. Prepare 4 bolts (M10) and spring washers. Ensure the base is positioned to avoid ribbing on the underside of the table.
• Fastening: Secure using nuts through the table or by drilling and threading the table directly.

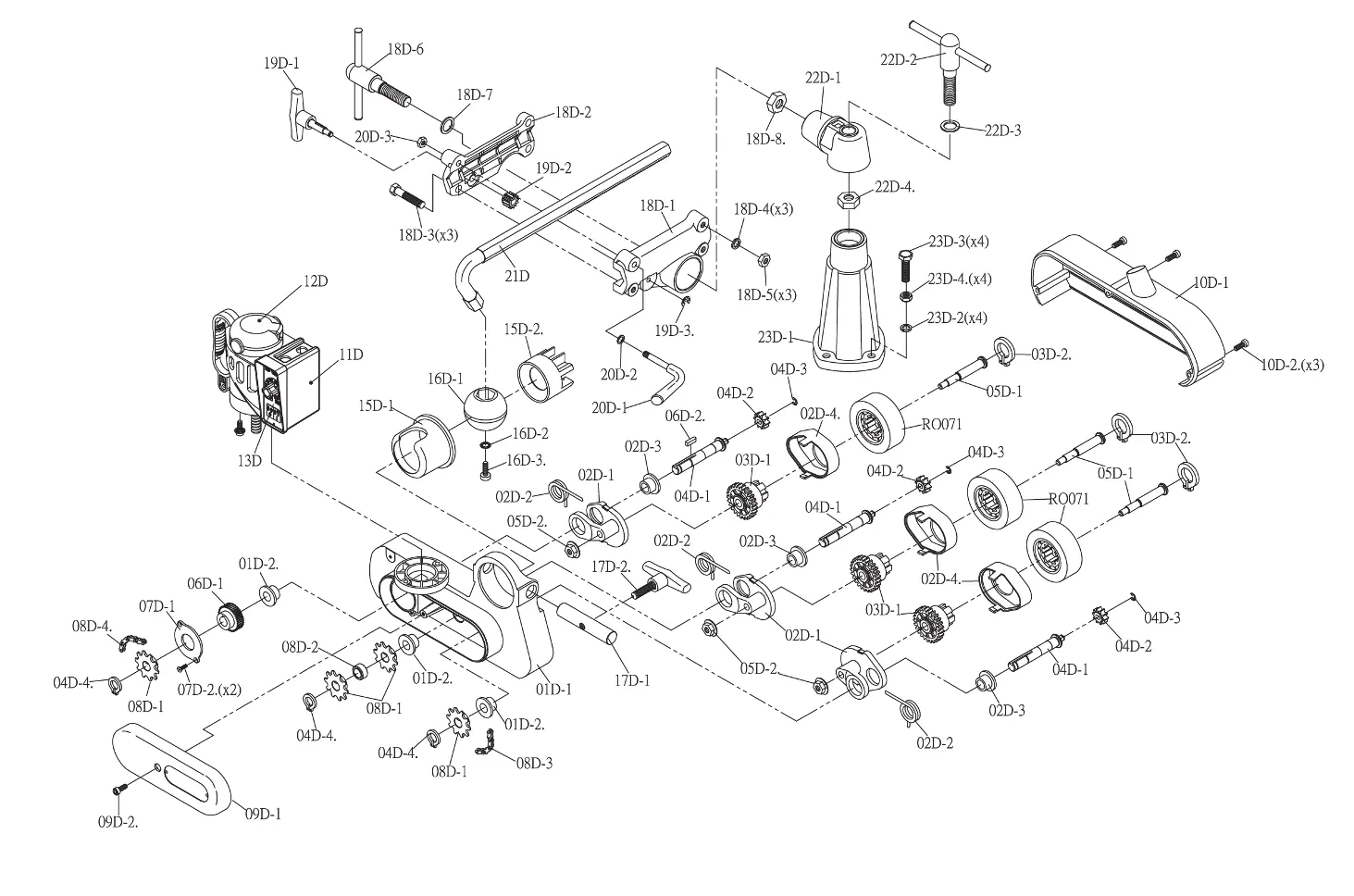

• Feeder assembly: Mount the swivel joint onto the stand and secure with the lever. Assemble the arm holder and joint components as detailed in the manual.

Set-up and adjustment

• Basic movements: Use the locking levers to rotate the feeder, adjust height, and move the arm protrusion.
• Feeding from above: Ensure constant pressure against the fence. The distance between the feeder and the fence should be 3-4 mm greater on the infeed roller than on the outfeed roller.
• Feeding from the side: Rotate the feeder to a vertical position using the locking lever.

Operating the machine

The feeder features a switch to indicate feed direction (middle position is OFF). The control wheel regulates feed speed (2-12 m/min) and acts as a power switch when pushed.

Maintenance and lubrication

• Replacing rollers: Disconnect from power. Remove the front cover, remove the circlip, and replace the roller. Use D76x30 mm rollers (code: 141-R76).
• Lubrication: Lubricate wheels every 200 hours of operation or every 30 days using a grease gun. Recommended greases include Shell Alvania Grease R2, Shell Gadus S2 V220 2, Mobilux EP 2, or Fuchs Renolit EP 2.
