User Manual for IKRA IAHS 20-1 Cordless Hedge Trimmer

Quick guide from the manual

The IKRA IAHS 20-1 is a cordless hedge trimmer designed for trimming hedges and shrubs in private gardens. Before using the device, ensure you have read all safety instructions. Always wear appropriate personal protective equipment, including safety goggles, ear protection, sturdy shoes, and long trousers. Before starting work, inspect the hedge for hidden objects like wire fences.

Product Description

The package includes the hedge trimmer, the battery, and the blade cover. Familiarize yourself with the controls, including the safety switch and the ON/OFF switch, before operation.

Operation

Battery Insertion and Removal: To insert the battery, slide it into the battery slot until it clicks into place. To remove, press the release button and slide the battery out.

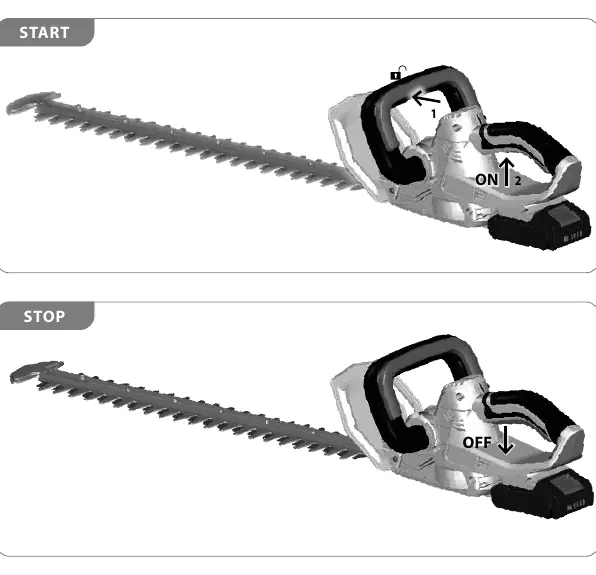

Starting and Stopping: To start the trimmer, hold the handle firmly, press the safety switch, and then press the ON switch. To stop the trimmer, release the OFF switch.

Maintenance and Care

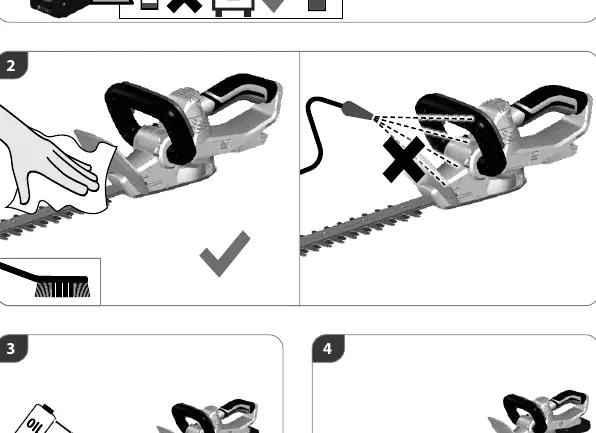

Cleaning: Always remove the battery before performing any maintenance. Keep the device, especially the air vents, clean. Use a damp cloth for cleaning. Never spray the device with water or use solvents.

Storage: Store the device in a dry, frost-protected place. If the battery is to be stored for a long period, charge it to approximately 50% and store it at room temperature (5°C to 20°C). Recharge the battery once a year to prevent deep discharge.

Blade Maintenance: Keep the cutting blades clean and sharp. Apply oil to the blades regularly to ensure smooth operation.

Safety Instructions

General Safety: Keep the work area clean and well-lit. Do not operate the tool in explosive atmospheres. Keep children and bystanders away while operating.

Hedge Trimmer Specific Safety: Keep all body parts away from the cutting blade. Do not attempt to remove jammed material while the blade is running; always switch off the device and remove the battery first. Carry the trimmer by the handle with the blade stopped. Always fit the protective cover during transport or storage.

Technical Specifications

• Battery Voltage: 20 V
• Cutting Length: 540 mm
• Weight (without battery/charger): 2.1 kg

Disposal

Do not dispose of the device or batteries with domestic waste. Dispose of them at designated recycling centers in accordance with local environmental regulations.
