Immax NEO DIAMANTE Smart 07132-G40 Ceiling Light User Manual
Quick guide for the Immax NEO DIAMANTE Smart ceiling light. Includes installation steps, technical specifications, safety warnings, and maintenance instructions.
Table of contents
Quick guide from the manual
This document provides essential installation and technical information for the Immax NEO DIAMANTE Smart ceiling light series (models 07132-G40, 07134-G60, 07132-G80). Before beginning installation, ensure the power supply is completely disconnected. The device operates on Zigbee 3.0 protocol and requires a standard AC 230-240V 50-60Hz power source.
Installation
- Ensure the main power supply is turned off (OFF!!).
- Prepare the ceiling surface for mounting.
- Connect the electrical wiring to the terminal block provided on the luminaire.
- Secure the luminaire to the ceiling using appropriate hardware.
- Attach the light cover to the base.
- Restore power to the unit.
Technical parameters
- Protocol: Zigbee 3.0
- Input voltage: AC 230-240V 50-60Hz
- Power consumption: 31W / 43W / 60W (depending on model)
- Luminous flux: 1850lm / 3450lm / 4450lm
- Light color: 2700-6500K
- Dimmable: Yes
- Lighting time: 50,000 hours
- CRI(Ra): >86
- Material: Metal, plastic
- Warranty period: 3 years
Maintenance and Disposal
The surface of the luminaire does not require special maintenance. Clean the surface using a soft cloth or duster. Do not dispose of this product with municipal waste; take it to a designated collection point for electronic waste (WEEE).
Support
For technical support or questions, contact the manufacturer at [email protected]. Full EU Declaration of Conformity is available at www.immax.cz or www.immax.eu.
Official resources from the manual
Manufacturer information
Immax
Practical help
Common problems
Light does not turn on
Verify that the main power supply is switched on and that all wiring connections to the terminal block are secure.
Before use
- Ensure the power supply is disconnected (OFF) before starting installation.
- Verify that the ceiling can support the weight of the luminaire.
- Check that the input voltage matches the AC 230-240V requirement.
- Ensure you have a Zigbee 3.0 compatible gateway for smart features.
Images and diagrams

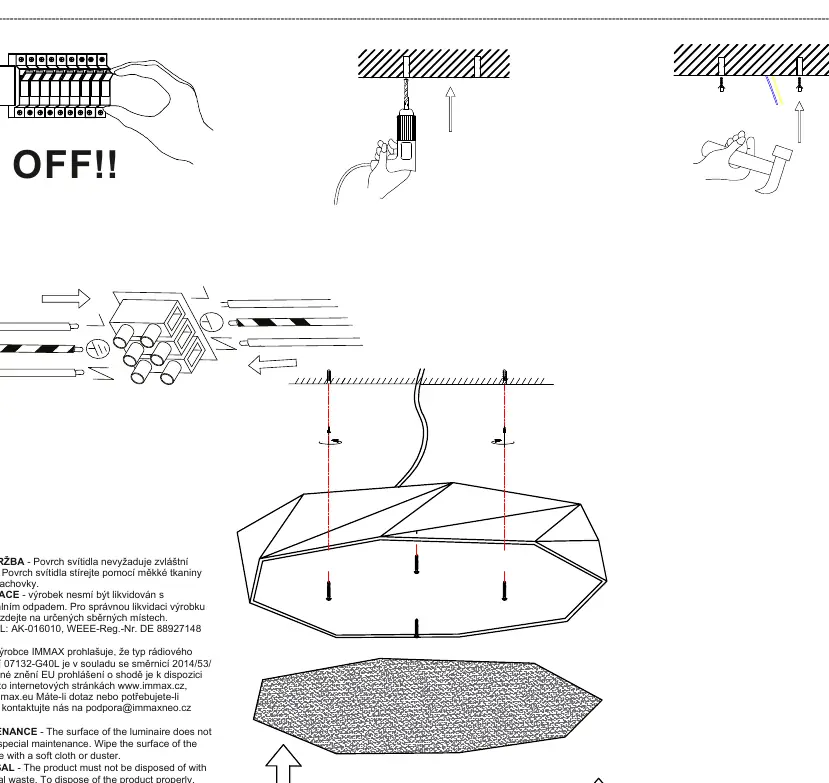

- The diagram illustrates the electrical connection process to the terminal block.
