User Manual for Immax NEO Smart Internal Socket Nexa 07552L
Quick guide for the Immax NEO Smart Internal Socket Nexa (07552L). Includes installation steps, Zigbee pairing instructions, technical specifications, and safety warnings.
Table of contents
Quick guide from the manual
This document provides essential instructions for the Immax NEO Smart Internal Socket Nexa (07552L). The device is a Zigbee 3.0 smart socket featuring USB-A and USB-C ports with Power Delivery (20W). It allows for remote ON/OFF control, timer settings, countdowns, and energy consumption monitoring via the Immax NEO PRO app.
Installation
Warning: Installation must be performed by a certified electrician in accordance with local regulations. Ensure the power supply is disconnected (circuit breaker turned off) before starting installation.
- The installation site must be equipped with appropriate wiring.
- Ensure the device is not overloaded beyond its 3200W/16A rating.
- Do not install in high humidity environments or near heat sources.
Pairing with the Application
- Ensure your mobile phone and the Immax NEO PRO smart gateway are connected to the internet.
- Power on the device. The LED should flash quickly. If it does not, reset the device by holding the ON/OFF button for at least 5 seconds until the LED flashes.
- Open the Immax NEO PRO app and tap the '+' icon to add a new device.
- Select the 'Immax NEO' category and choose the device (or 'Other zigbee devices').
- Select the smart gateway you wish to pair with.
- Follow the on-screen instructions to complete the pairing process, name the device, and assign it to a room.
Safety and Maintenance
- Do not attempt to repair, disassemble, or modify the device.
- Do not use the socket if the power cord is damaged.
- Clean only with a soft, dry cloth. Do not use solvents, aggressive cleaners, or chemicals.
- Keep out of reach of children.
- If you notice a strange smell or smoke, disconnect the device immediately and contact customer support.
Technical Specifications
- Protocol: ZigBee 3.0
- Voltage: AC 230V ± 10%, 50/60 Hz
- Max Load: 3200W, 16A
- USB Output: 20W (USB-A: 9V/2.2A, 12V/1.67A; USB-C: 9V/2.2A, 12V/1.67A)
- Protection: IP20
- Operating Temperature: 0 °C to 40 °C
Manufacturer information
Immax
Practical help
Common problems
Device LED is not flashing during pairing
Reset the device by holding the ON/OFF button for at least 5 seconds until the LED starts flashing.
Strange smell or smoke coming from the socket
Immediately disconnect the power and contact customer support.
Device overheating or damage
Ensure the connected load does not exceed the 3200W/16A rating.
Before use
- Ensure the installation site has proper wiring according to regulations.
- Verify the device is not damaged before installation.
- Ensure the mobile phone and smart gateway have an active internet connection.
- Confirm the circuit breaker is turned off before starting installation.
- Ensure the device is kept dry and clean.
Specs in practice
- Power Delivery (PD)
- Fast charging capability for USB-C devices up to 20W.
Images and diagrams

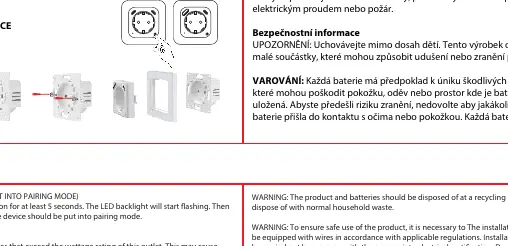

- The installation diagram shows the connection of Neutral, Live, and Earth wires to the socket terminals.
- The reset procedure involves holding the physical ON/OFF button for 5 seconds to enter pairing mode.
Model compatibility
- Requires an Immax NEO PRO smart gateway for Zigbee connectivity.
- Compatible with extension cords if they are rated for the socket voltage.
