Installation Guide for Innr OSL 23x C Spot
Quick installation guide for the Innr OSL 23x C outdoor spotlight. Includes step-by-step mounting instructions for ground and wall installation, daisy-chaining procedures, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Innr OSL 23x C is an outdoor spotlight designed for flexible installation. This guide covers the essential steps for mounting the light, connecting multiple units in a series (daisy-chaining), and connecting to power. Always ensure the product is used in accordance with the safety instructions provided.
Safety instructions
- Outdoor use: The product is suitable for outdoor use.
- Handling: Do not disassemble the product. If any part is damaged, do not use the product.
- Water: Do not immerse the product in water.
- Cleaning: Use a damp cloth for cleaning. Never use strong cleaning agents.
- Maintenance: The light source is replaceable by a professional.
Installation
The spotlight can be installed using a ground spike or mounted to a wall.
Ground spike installation
- Option 1A: Insert the ground spike into the ground, then attach the spotlight to the spike.
- Option 1B: Alternatively, secure the spotlight to the ground spike and insert it into the ground.
Wall mounting
- Option 1C: Use the provided bracket to mount the spotlight to a wall. Drill holes as necessary, insert wall plugs, and secure the bracket with screws.
Daisy-chaining and power connection
- Daisy-chaining: You can connect multiple spots in a series. Ensure the connectors are properly aligned and secured.
- Power connection: Connect the power adapter to an outdoor-rated power socket. Ensure the connection is protected from water ingress.
Manufacturer information
Innr Lighting
Practical help
Common problems
Product is damaged
Do not use the product if any part is damaged.
Cleaning the product
Use a damp cloth only. Do not use strong cleaning agents.
Before use
- Verify the product is suitable for outdoor use.
- Inspect all parts for damage before installation.
- Ensure you have the correct tools for wall mounting if not using the ground spike.
- Check that the power source is suitable for outdoor use.
Show more Show less
Specs in practice
- Energy Efficiency Class G
- The product contains light sources of energy efficiency class G.
Images and diagrams

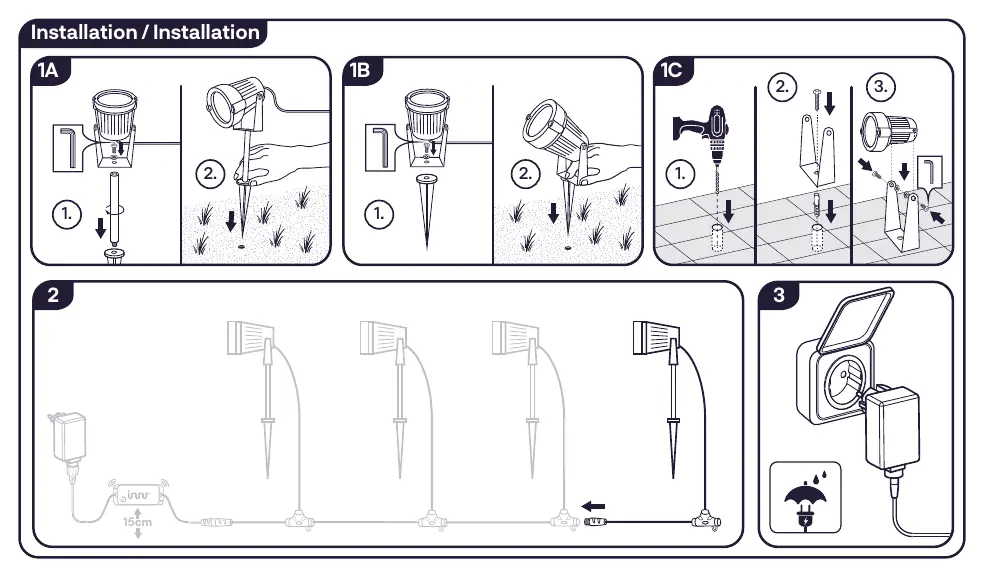

- Diagram 1A/1B: Shows ground spike installation methods.
- Diagram 1C: Shows wall mounting procedure using screws and wall plugs.
- Diagram 2: Shows how to daisy-chain multiple spotlights together.
- Diagram 3: Shows connection to the power supply.
Model compatibility
- The light source is replaceable by a professional.
