User Manual for Lightpro Rodas 239R Outdoor Lighting
Quick guide for the Lightpro Rodas 239R outdoor lighting system. Includes installation steps, safety instructions, technical specifications, and maintenance tips.
Quick answers from the manual
Quick answer
- The Lightpro Rodas 239R is a 12V outdoor lighting string. It connects to the Lightpro 12V system using the provided twist-and-connect system. p. 3, 4, 5
Key actions
- Connect to 12V system p. 3, 6, 7
- Clean stainless steel parts p. 6, 7
Problems and fixes
Water accumulation
Ensure the drain hole is pointing downwards.
p. 6, 7Show 3 more answers Show less
Maintenance and reset
- Clean regularly with a soft, clean cloth. Avoid abrasives. p. 6, 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 1W | Maximum power consumption | p. 4, 5 |
| Protection Class | IP65 | Dust tight and protected against water jets | p. 4, 5 |
| Light colour | 3000K | Warm white light | p. 4, 5 |
Where to find it in the PDF
- Product Overview p. 2
- Installation Diagram p. 3
- Specifications and Safety p. 4, 5, 6, 7
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Lightpro Rodas 239R is an atmospheric string of three lights designed for outdoor use. It operates on a 12V low-voltage system and must be connected to a compatible Lightpro transformer. The system uses a simple twist-and-connect mechanism for installation.
Product Description
The Rodas 239R consists of three lights on a string. It is intended exclusively for outdoor lighting in combination with the Lightpro 12V system. Any modifications to the product may affect safety, warranty, and system functionality.
Installation
Follow these steps to install your lighting system:
- Positioning: Place the lights in the desired location and route the cables so they can comfortably reach the transformer or main cable.
- Drainage: If the product has a drain hole for water, ensure it is pointing downwards to prevent water accumulation.
- Fixing: Use the provided non-corrosive fixing materials if you need to bolt the products down.
- Connection: Connect the lights to the main cable using the provided Lightpro connector. Ensure the connection is secure by twisting it as shown in the system diagram.
- Transformer: Consult the manual of your specific transformer for detailed setup instructions.
Safety
- Accessibility: Always install the product so it remains accessible for maintenance. Do not permanently embed or brick in the product.
- Power: This is a Class III product. Only connect to safety extra-low voltage (max 12V).
- Maintenance: Always disconnect the transformer from the power socket before performing maintenance.
- Environment: Do not use in areas where combustible gases, fumes, or liquids are stored.
- Temperature: Suitable for ambient temperatures between -20°C and 50°C.
Maintenance
- Clean the product regularly with a soft, clean cloth. Avoid abrasive materials that may damage the surface.
- For products with stainless steel parts, clean with a stainless steel cleaning agent once every 6 months.
- Do not use high-pressure washers or aggressive chemical cleaning agents, as these can cause irreparable damage.
Technical Specifications
- Product: Lightpro Rodas
- Article Number: 239R
- Light Source: LED 1W, 120 lm, 3000K
- Power (max): 1W
- Protection Class: IP65
- Cable Length: 3m
- Ambient Temperature: -20°C to 50°C
- Dimmable: No
- Replaceable: No
Practical help
Common problems
Light not turning on
Check the connection to the main cable and ensure the transformer is plugged into a working power outlet.
Water inside the light
Ensure the drain hole is pointing downwards. If it is not, adjust the position of the light.
Before use
- Verify all parts are present in the packaging.
- Ensure you have a compatible 12V Lightpro transformer.
- Plan the cable routing before installation.
- Check that the installation area is not subject to combustible gases or liquids.
Show more Show less
Images and diagrams

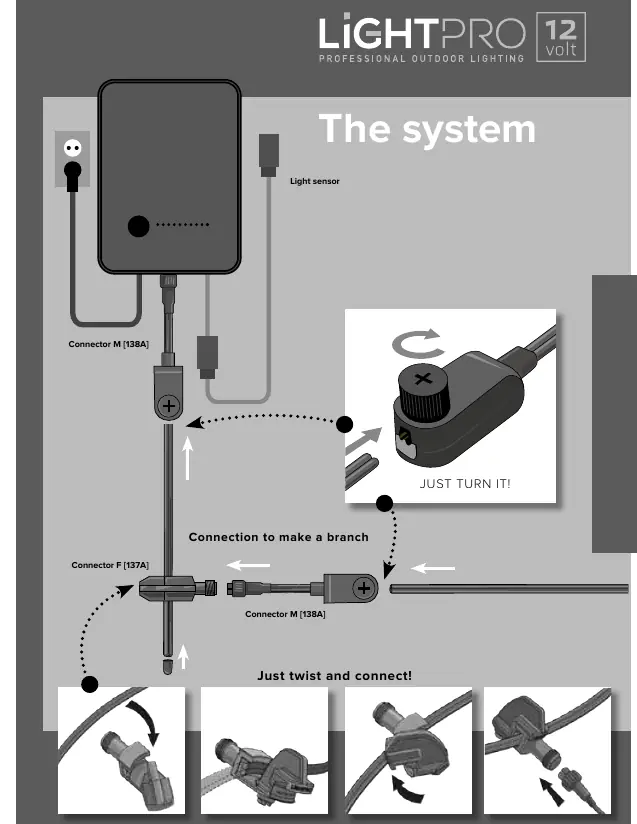

- The system uses a 'twist and connect' connector. Align the connector, push, and twist to secure the connection to the main cable.
Model compatibility
- Must be used with the Lightpro 12V system.
- Not dimmable.
- Light source is not replaceable.
