User Manual for Instant Vortex Plus 10L Air Fryer

Quick guide from the manual

This guide provides essential instructions for operating your Instant Vortex Plus 10L Air Fryer. Always read the full safety documentation before use. Key steps include proper placement with at least 13 cm of clearance, performing a test run without food, and using the correct accessories for rotisserie cooking. Never block air vents and always use oven mitts when handling hot accessories.

Important Safety Information

• Place the appliance on a stable, level, non-combustible surface.
• Maintain at least 13 cm of space around all sides of the appliance for airflow.
• Do not use ceramic-coated or stoneware pots for air frying.
• Do not cover air vents or overfill the cooking container.
• If the unit emits black smoke, press Cancel and unplug immediately.
• Do not immerse the power cord, plug, or appliance in water.

What is in the Box

• Air Fryer Oven
• Cooking trays (2)
• Drip pan
• Rotisserie basket
• Rotisserie fork/spit with setting screws (2)
• Rotisserie lift

Control Panel Overview

The control panel features a message bar for status updates, temperature and time controls, and dedicated buttons for Smart Programs (Air Fry, Roast, Grill, Bake, Reheat, Dehydrate). Use the Rotate button for rotisserie cooking and the Light button to view the cooking chamber.

Initial Setup

1. Remove all packaging material from inside and around the oven.
2. Wash accessories with hot water and dish soap.
3. Wipe the interior with a damp cloth.
4. Perform a test run: Select Air Fry, use default settings (400°F / 205°C for 18 minutes), and run the unit empty.

Cooking Instructions

1. Place food on the cooking utensil (tray or drip pan).
2. Insert the utensil into the air fryer and close the door.
3. Select the desired Smart Program.
4. Adjust temperature and time using the + / - buttons.
5. Press Start to begin pre-heating.
6. When prompted, turn or flip food if necessary.
7. The unit will beep when cooking is complete.

Rotisserie Cooking

The rotisserie function rotates food for even cooking.

• Using the basket: Place food in the basket, align the tab with the notch in the lid, and secure by turning the lid clockwise.
• Using the spit: Remove forks, push food onto the spit, slide forks onto both ends, and tighten the setting screws.

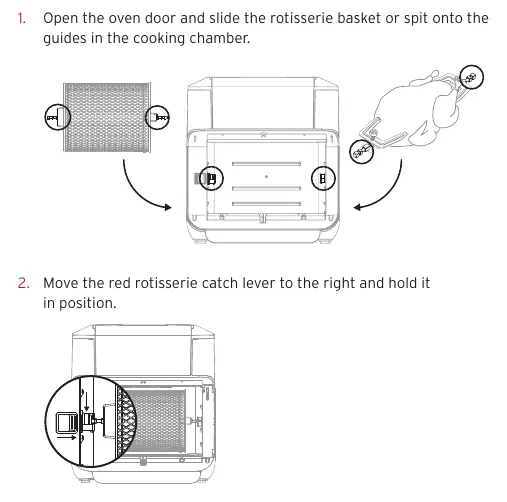

• Placement: Open the door, slide the accessory onto the guides, move the red rotisserie catch lever to the right, align the accessory, and release the lever. Ensure it is held securely before closing the door.

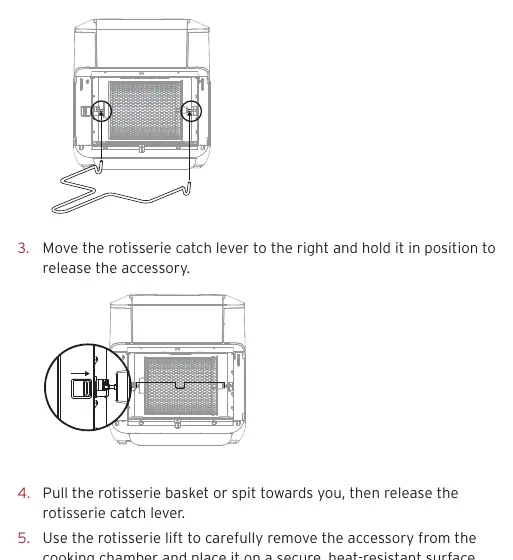

• Removal: Use the rotisserie lift to hook the accessory, move the catch lever to release, and carefully pull the accessory out.

Cleaning and Maintenance

• Always let the appliance cool before cleaning.
• Drip pan, cooking trays, rotisserie basket, spit, forks, and lift are dishwasher safe.
• Clean the removable door with a damp cloth and mild soap; allow to air dry completely.
• Clean the cooking chamber with a damp cloth and mild soap.

Specifications

• Volume: 10 Quart / 9.46 Litres
• Wattage: 1400-1600 watts
• Power: 220-240V~, 50-60Hz
• Weight: 7.7 kg
