Adler AD 6310 Air Fryer

Important information from the manual

This air fryer is intended for domestic use only. Always ensure the device is placed on a cool, stable, and heat-resistant surface. Maintain at least 10 cm of free space on each side and 30 cm above the device for proper air circulation. Do not cover ventilation openings. The device is not designed to be operated by external timers or separate remote control systems.

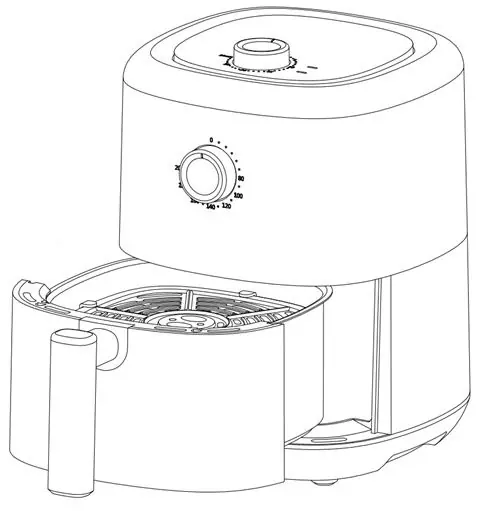

Device description

The Adler AD 6310 consists of the following main components:

• 1: Time control knob
• 2: Temperature control knob
• 3: Power indicator lamp
• 4: Heating indicator lamp
• 5: Grate
• 6: Handle
• 7: Main body
• 8: Pot
• 9: Air outlet
• 10: Power cord

Before first use

1. Remove all packaging, stickers, and accessories from inside and outside the device.
2. Clean the grate (5) and the pot (8) with warm water and a little dishwashing liquid using a soft sponge. Wipe dry with a clean, soft cloth.
3. Place the main body (7) on a stable horizontal surface.
4. Connect the power cord (8) to a grounded socket.
5. Set the temperature knob (2) to 200°C and the timer knob (1) to 10 minutes to remove factory odors.
6. Once finished, unplug the device and allow it to cool completely before cleaning again.

Using the device

1. Hold the handle (6) and pull the pot (8) with the grate (5) out of the body (7).
2. Place prepared food on the grate (5) at the bottom of the pot (8). Do not exceed the MAX level inside the pot.
3. Insert the pot (8) back into the main body (7).
4. Connect the device to a grounded power outlet.
5. Turn the timer knob (1) to the desired time and the temperature knob (2) to the desired temperature. The power (3) and thermostat (4) lamps will light up.
6. The thermostat lamp (4) will switch on and off during operation to maintain the set temperature.
7. A beep indicates the set time has passed. Pull the pot (8) out and empty the contents.
8. After use, set both knobs to the 0 position and disconnect from the power supply.

Cooking tips

• Arrange food pieces so that hot air can circulate freely between them.
• If the time or temperature is insufficient, you can adjust the knobs at any time.
• It is recommended to check the food status and stir products at least once during operation.

Cleaning and maintenance

Warning: The inside of the device is very hot. Allow the device to cool down completely before cleaning.

• Unplug the device.
• Clean with a damp cloth or paper towel.
• For stubborn residue, brush with a little edible oil, wait a few minutes, and remove gently with a wooden spatula.
• Do not use sharp, abrasive cloths, sponges, or scouring powders, as these can damage the non-stick coating.
• Do not immerse the device in water.
• Do not wash the grate (5) or the pot (8) in a dishwasher.

Technical data

• Capacity: 3 L
• Voltage: 220-240V ~50/60Hz
• Nominal Power: 1300W
• Maximum Power: 2200W
