Jayco Caravan Accessories Catalogue and Installation Guide

A comprehensive guide to Jayco caravan accessories, including diesel heaters, air-conditioning, awnings, brake controllers, and hot water systems. Features product specifications, installation services, and selection advice.

Table of contents

Manual images

Click an image to enlarge
Autoterm Diesel Air Heater 12V 2KW Kit Page 4 Dometic Air-conditioning unit Page 5 Awning measurement diagram Page 7 Cruisemaster DO35 coupling Page 8 AL-KO ESC operation diagram Page 9 Elecbrakes E-Brake 2 controller Page 9

Quick guide from the manual

This document serves as an accessories catalogue and installation guide for Jayco caravan owners. It provides an overview of available upgrades, including heating, cooling, towing, and utility systems, along with professional installation services offered by MAKS Caravan Centre.

Diesel Heating

The Autoterm Diesel Air Heater 12V 2KW kit is designed for efficient, quiet heating. Key features include:

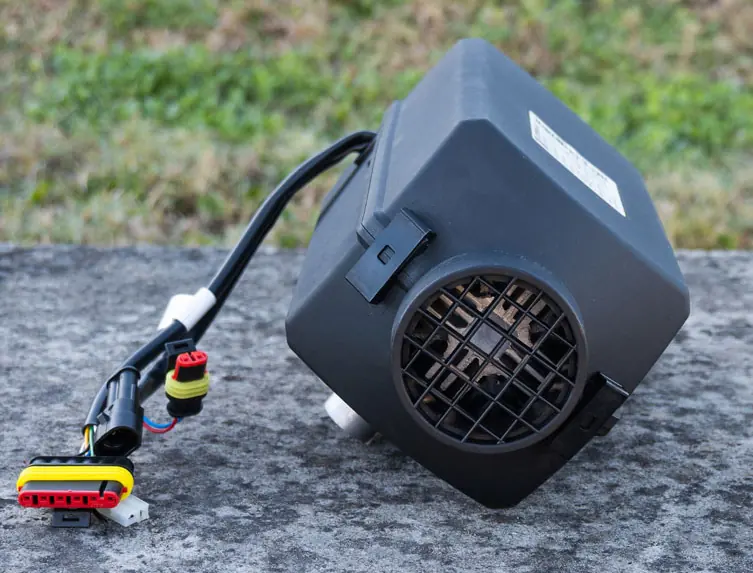

Autoterm Diesel Air Heater 12V 2KW Kit
Autoterm Diesel Air Heater 12V 2KW Kit
  • Silent operation: Features a silent fuel dosing pump, balanced fan, and intake/exhaust silencers.
  • Durability: Utilizes a brushless fan motor for increased lifespan and minimal maintenance.
  • Quality Assurance: Each unit is tested for one hour; batches are tested for 3000 hours.

Air-conditioning & Dust Reduction

Options include roof-mounted and under-bed/cabinet units. Selection depends on caravan type (Standard, Large, or Pop-Top).

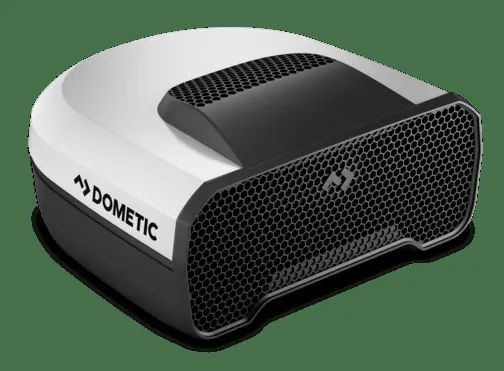

Dometic Air-conditioning unit
Dometic Air-conditioning unit
  • Dometic Fresh Jet Series 7: Available in Pro, Plus, and Lite versions tailored to caravan size.
  • Dust Reduction Systems: Includes Carafan Sahara 12V Pressuriser and Dometic Dust Reduction System to maintain a dust-free atmosphere.

Awnings & Anti-Flap Kits

The catalogue covers awning rolls and hardware from Dometic and Carefree.

Awning measurement diagram
Awning measurement diagram
  • Anti-Flap Kits (AFK): Provide stability in windy conditions and prevent flapping. Available in Short, Medium, and Long sizes.
  • Curved Rafters: Help maintain awning shape and prevent water pooling. Sized based on the age of the awning fabric.

Couplings

Two main types of hitches are available:

Cruisemaster DO35 coupling
Cruisemaster DO35 coupling
  • Cruisemaster (DO35/DO45): Pin-style hitches offering superior articulation and safety on uneven terrain.
  • AL-KO: Offers off-road ball couplings for extreme adventures and overrun brake couplings for trailers between 750kg and 2000kg ATM.

Brake Controllers & ESCs

Advanced towing safety systems:

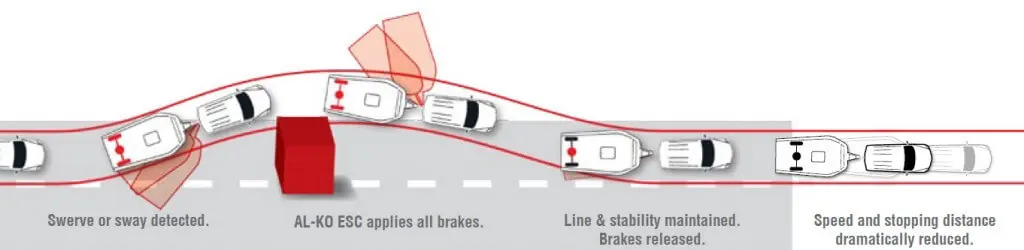

AL-KO ESC operation diagram
AL-KO ESC operation diagram
Elecbrakes E-Brake 2 controller
Elecbrakes E-Brake 2 controller
  • Elecbrakes E-Brake 2: A "Plug & Play" electric brake controller with multi-vehicle compatibility and smartphone app control.
  • AL-KO Electronic Stability Control (ESC): Automatically applies brakes to all wheels upon detecting dangerous lateral movements to prevent jack-knifing.

Antenna & Satellite

Solutions for mobile connectivity:

  • Winegard TV Antenna: Available as a complete kit or retrofit kit.
  • Sphere Satellite Systems: Includes Astrolink Satellite System and SatKing Vast Box.

Hot Water Systems

Two primary systems are featured:

  • Truma UltraRapid: 14-liter capacity, supports LPG, 12V DC, and 230V/240V AC. Features multiple heating modes (gas, electric, mixed).
  • Suburban SW6DERA: 22.7-liter (6 gallon) capacity, supports propane and electric. Features Direct Spark Ignition (DSI) and adjustable thermostat.

Practical help

Common problems

Awning flapping in wind

Install an Anti-Flap Kit to keep the awning taut and secure.

Water pooling on awning

Install curved roof rafters to maintain the awning's shape and tension.

Trailer sway or instability

Install AL-KO Electronic Stability Control (ESC) for automatic braking intervention.

Before use

  • Measure awning extension to determine the correct Anti-Flap Kit size.
  • Identify caravan type (Standard, Large, or Pop-Top) before selecting air-conditioning units.
  • Verify trailer weight (ATM) to ensure coupling compatibility.
  • Check towing capacity of the vehicle before installing brake controllers.

Images and diagrams

  • Awning measurement: Shows how to measure the 'Awning Extension' to select the appropriate Anti-Flap Kit.
  • ESC operation: Illustrates the sequence of swerve detection, automatic braking, and stability recovery.

Model compatibility

  • Air-conditioning units are specific to caravan size (Standard, Large, Pop-Top).
  • Cruisemaster hitches use pin-style couplings; AL-KO uses standard ball couplings.
  • Elecbrakes E-Brake 2 is multi-vehicle compatible and does not require hard-wiring.
