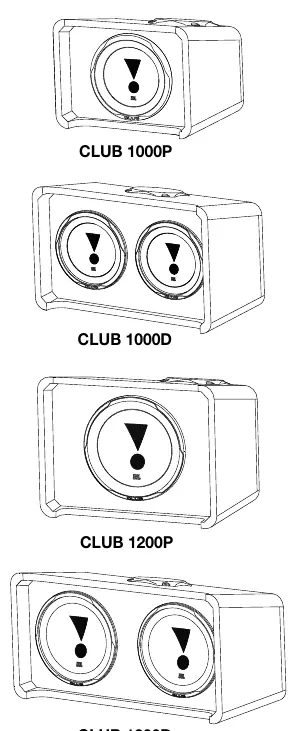

JBL Club Subwoofer Enclosures Owner's Manual
Quick guide for JBL Club 1000P, 1000D, 1200P, and 1200D subwoofer enclosures. Includes installation tips, wiring diagrams, mounting advice, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides installation and connection instructions for the JBL Club series subwoofer enclosures. Before beginning, ensure you have the necessary tools and experience, or consult a professional car audio dealer. Always disconnect the negative battery lead before starting any electrical work.
Installation warnings and tips
- Always wear protective eyewear when using tools.
- Turn off all audio components and other electrical devices before starting.
- Disconnect the negative (-) lead from your vehicle's battery.
- Check clearances on both sides of the planned mounting surface to ensure screws or wires will not puncture fuel lines, brake lines, or wiring harnesses.
- Ensure electrical connections are secure and properly insulated.
- Use a utility knife to remove unwanted fabric or vinyl before drilling or cutting holes to prevent snagging.
- Do not mount speakers where they will get wet.
Choosing a mounting location
Select a location that does not interfere with cargo. The best location is usually a corner of the trunk or cargo area. Securely mount the enclosure to the mounting surface.
Speaker connections
Connect the + and - terminals on the enclosure to the amplifier's outputs, observing proper polarity. Use at least 4mm² (11 AWG) speaker wire for Club 1000P and Club 1200P. Use 5mm² (10 AWG) speaker wire for Club 1000D and Club 1200D.
General care
The loudspeaker may be cleaned with a damp cloth. Do not use any cleaners or solvents. This product is designed for mobile applications and is not intended for connection to the mains.
Specifications
Club 1000P: 1x 10" (250mm) Polypropylene Driver, 350W RMS (1050W peak), 83dB sensitivity, 35Hz - 400Hz frequency response, 2 ohms impedance.
Club 1000D: 2x 10" (250mm) Polypropylene Driver, 700W RMS (1400W peak), 86dB sensitivity, 30Hz - 400Hz frequency response, 2 ohms impedance.
Club 1200P: 1x 12" (300mm) Polypropylene Driver, 400W RMS (1200W peak), 86dB sensitivity, 30Hz - 400Hz frequency response, 2 ohms impedance.
Club 1200D: 2x 12" (300mm) Polypropylene Driver, 800W RMS (1600W peak), 89dB sensitivity, 30Hz - 400Hz frequency response, 2 ohms impedance.
Manufacturer information
JBL
Practical help
Common problems
Hearing damage
Playing loud music in an automobile can permanently damage your hearing. Listen at low levels while driving.
Installation interference
Ensure mounting location does not interfere with cargo, trunk lid, or folding seats.
Before use
- Disconnect the negative (-) battery lead
- Wear protective eyewear
- Check clearances on both sides of the mounting surface
- Ensure wires do not puncture fuel or brake lines
- Securely mount the enclosure
- Ensure electrical connections are insulated
Specs in practice
- Power Handling
- The amount of power (RMS/Peak) the subwoofer can handle safely.
- Frequency Response
- The range of frequencies the subwoofer can reproduce (-6dB).
- Nominal Impedance
- The electrical resistance of the speaker, important for amplifier matching (2 ohms).
Images and diagrams
- The wiring diagram illustrates the connection from the Head Unit to the Amplifier, and from the Amplifier's 'Speaker Out' terminals to the Subwoofer Enclosure's + and - terminals.
Model compatibility
- Designed for mobile applications only.
- Not intended for connection to the mains.
