JBL STAGE 1200D Subwoofer Owner's Manual
Quick guide for the JBL STAGE 1200D subwoofer. Includes installation tips, wiring connection diagrams, technical specifications, and maintenance advice for your car audio system.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

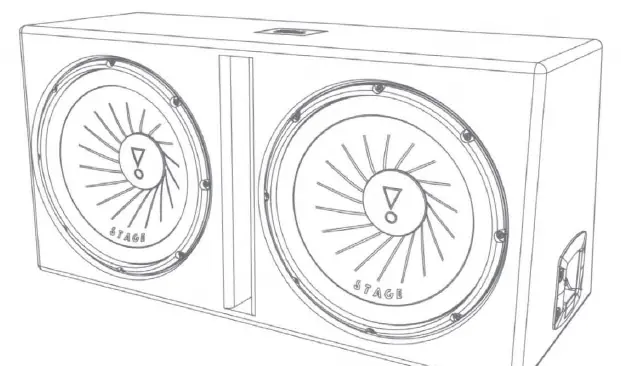

The JBL STAGE 1200D is a passive subwoofer enclosure designed for mobile car audio applications. For the best performance, JBL recommends professional installation. Always prioritize safety by disconnecting the vehicle's battery before starting any work and wearing protective eyewear when using tools.
Installation
Before installing the enclosure, consider the following safety and placement guidelines:
- Mounting Location: Choose a location that does not interfere with cargo, fold-down rear seats, or the trunk lid. A corner of the trunk or cargo area is typically the best location.
- Clearance Check: Always check both sides of the planned mounting surface to ensure that screws or wires will not puncture brake lines, fuel lines, or wiring harnesses.
- Preparation: Use a utility knife to remove unwanted fabric or vinyl before drilling or cutting holes to prevent material from snagging.
- Environment: Do not mount the speakers in locations where they will get wet.
- Security: Ensure the enclosure is securely mounted to the mounting surface.
Speaker connections
Connect the positive (+) and negative (-) terminals on the enclosure to the amplifier's speaker outputs. Observe proper polarity to ensure correct sound reproduction. Use at least 0.5mm² (20 AWG) speaker wire for these connections.
Specifications
- Woofer: 2 x 12" (300mm)
- Power handling (RMS): 600Wrms
- Power handling (Peak): 1200W
- Sensitivity (2.83V@1m): 94dB
- Frequency response: 34Hz - 200Hz
- Impedance: 2 ohms
- Dimensions (WxHxD1xD2): 30-1/8" x 15" x 13-11/16" x 10-1/2" (764.5mm x 380mm x 347.5mm x 266.7mm)
General care
The loudspeaker may be cleaned with a damp cloth. Do not use any cleaners or solvents. A valid serial number is required for warranty coverage. This product is designed for mobile applications and is not intended for connection to the mains.
Manufacturer information
JBL
Practical help
Common problems
Distorted sound or poor performance
Check wiring polarity and ensure all connections are secure and properly insulated.
Risk of hearing damage
Avoid playing music at high volumes for extended periods; establish a safe listening level before your hearing adapts.
Before use
- Disconnect the negative (-) lead from the vehicle's battery.
- Wear protective eyewear when using tools.
- Check clearances on both sides of the mounting surface to avoid puncturing lines.
- Ensure wire routing does not interfere with vehicle safety.
- Use at least 0.5mm² (20 AWG) speaker wire.
Specs in practice
- Power handling (RMS)
- 600Wrms - The continuous power the subwoofer can handle.
- Power handling (Peak)
- 1200W - The maximum short-term power the subwoofer can handle.
- Frequency response
- 34Hz - 200Hz - The range of bass frequencies the subwoofer reproduces.
Images and diagrams
- The connection diagram shows the subwoofer terminals connected to the amplifier's speaker output.
- The diagram illustrates the connection from the Head Unit to the Amplifier, including the Remote Turn-On wire.
Model compatibility
- Designed for mobile applications; not intended for connection to mains power.
