User Manual for JBL Stadium 192T Tweeters
Quick guide for the JBL Stadium 192T tweeters. Includes installation steps, wiring diagrams, technical specifications, and component list.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The JBL Stadium 192T is a 3/4 inch (19mm) edge-driven aluminum dome tweeter designed for high-performance car audio systems. This manual provides the necessary information for proper installation, wiring, and technical specifications to ensure optimal sound quality.

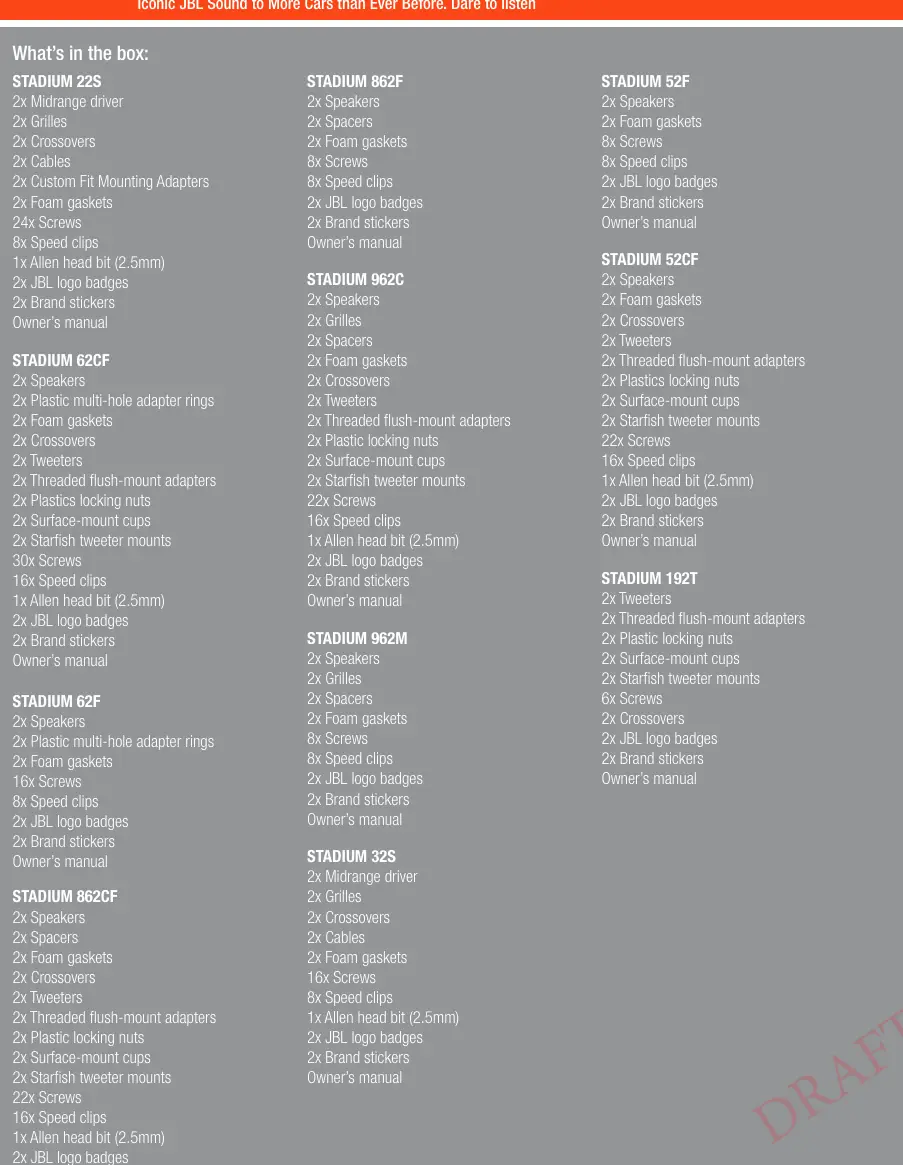

What's in the box
- 2x Tweeters
- 2x Threaded flush-mount adapters
- 2x Plastic locking nuts
- 2x Surface-mount cups
- 2x Starfish tweeter mounts
- 6x Screws
- 2x Crossovers
- 2x JBL logo badges
- 2x Brand stickers
- Owner's manual
Installation
Wiring
Connect the tweeter to the included crossover using the provided cables. Ensure correct polarity (+ and -) when connecting to your audio system to maintain proper phase and sound quality.
Flush Mount
To install the tweeter flush, use the threaded flush-mount adapter (C) and the plastic locking nut (D). Insert the tweeter into the adapter and secure it from behind the mounting surface using the locking nut.

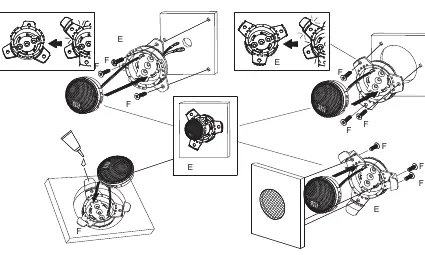

Surface Mount
For surface mounting, you can use the surface-mount cup (B) or the Starfish mount (E) depending on your vehicle's specific mounting requirements. Secure the chosen mount to the surface using the provided screws (F).
Technical Specifications
- Type: 3/4 inch (19 mm) Edge-Driven Aluminum Dome Tweeter
- Power Handling: 50 Wrms, 150 W peak
- Sensitivity (@ 2.83 V): 93 dB
- Frequency Response: 2 kHz – 40 kHz
- Impedance: 3.0 ohms
Manufacturer information
JBL
Practical help
Common problems
Distorted sound or lack of high frequencies
Check that the crossover is correctly connected and that the tweeter is not being overdriven beyond its 50Wrms rating.
Tweeter does not fit in the desired location
The Stadium 192T includes multiple mounting options (flush, surface, and Starfish mounts). Verify which mount provides the best clearance for your vehicle's specific panel depth.
Before use
- Verify all components listed in 'What's in the box' are present.
- Check the mounting location for sufficient depth and clearance.
- Ensure the crossover is connected between the amplifier/head unit and the tweeter.
- Confirm correct polarity (+/-) for all connections.
- Test the tweeter at low volume before final installation.
Specs in practice
- Power Handling (50 Wrms)
- The continuous power the tweeter can handle without damage.
- Sensitivity (93 dB)
- Indicates how loud the speaker is relative to the power input; higher numbers are more efficient.
- Impedance (3.0 ohms)
- The electrical resistance; ensure your amplifier is stable at 3 ohms.
- Frequency Response (2 kHz – 40 kHz)
- The range of sound frequencies the tweeter can reproduce.
Images and diagrams
- Page 1: Dimensional drawings showing the physical size of the tweeter for installation planning.
- Page 2: Wiring diagram showing the connection between the tweeter, cables, and crossover.
- Page 3: Step-by-step guide for flush mounting the tweeter.
- Page 4: Step-by-step guide for surface mounting using the Starfish or cup mounts.
Model compatibility
- Designed for 3-ohm impedance systems.
- Requires crossover connection for proper operation.
