This product is shipped with the battery disconnected. You must connect the battery before the first use. The vehicle is designed for children aged 3 to 7 years with a maximum weight capacity of 77 lbs. Always ensure the child wears a helmet and fastens the seat belt during operation. The vehicle should only be driven on flat, hard surfaces and never near streets, water, or steep inclines.
Product Assembly

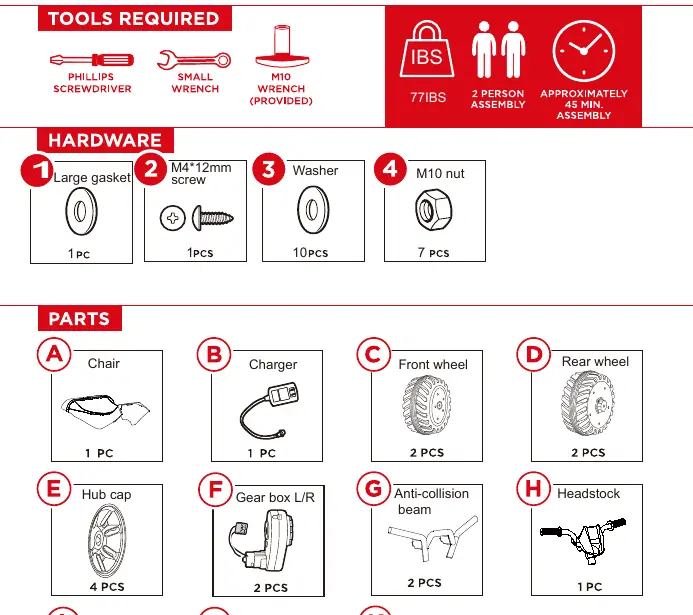

Assembly should be performed by an adult. Ensure all packaging materials are removed from under the vehicle body. Required tools include a Phillips screwdriver, small wrench, and the provided M10 wrench.
- Step 1: Insert the large gasket and steering rod into the body.
- Step 2: Attach the steering bracket to the square pipe using washers.
- Step 3-4: Secure the steering bracket and lock the nut using the provided M10 wrench.
- Step 5: Install front and rear wheels by placing the gasket, wheel, gasket, and nut onto the axles in order. Secure with the wrench and attach hub caps.
- Step 6: Install 2 AA batteries in the headstock, clamp it to the steering rod, and attach the anti-collision beams.
- Step 7: Connect the motor wire and secure the seat with the power cord.
Battery and Charging
Charge the battery for at least 18 hours before the first use. Subsequent charging takes 4-5 hours. Never charge for more than 20 hours to avoid permanent damage. Always charge in a well-ventilated area away from heat sources. Use only the supplied charger.
Dashboard and Controls
The dashboard features a power switch, forward/stop/back switch, high/low speed switch, and a foot pedal. The music/horn system includes a USB connector and Bluetooth functionality. Use the MODE button to switch between Bluetooth and Radio modes.
Care and Maintenance
Store the vehicle indoors or cover it with a tarp to protect it from wet weather. Do not leave the vehicle in direct sunlight for extended periods. Do not wash the vehicle with a hose or soap.
Manufacturer information
Kidzone Toys
Practical help
Common problems
Vehicle does not move
Check if the battery is charged, ensure the switch is in the correct position, and verify that battery connectors are plugged in.
Battery does not recharge
Ensure the charger is properly connected to both the vehicle socket and the wall outlet.
Slow speed
Charge the battery, reduce the weight on the vehicle, or ensure you are driving on flat pavement.
Forward and reverse switch is reversed
Ensure the left and right gear boxes are installed on their correct sides.
Before use
- Connect the battery before first use.
- Charge the battery for at least 18 hours initially.
- Verify all nuts and screws are tightened.
- Ensure the child is wearing a helmet.
- Check that the seat belt is fastened.
- Confirm the driving area is flat and hard.
Specs in practice
- Weight Capacity
- Maximum 77 lbs.
- Battery Life
- Approximately 1 year under normal use.
Images and diagrams
- Dashboard: Includes power switch, speed selector, and music/Bluetooth controls.
- Charging: Socket is located on the back of the vehicle near the rear left wheel.
- Steering: Headstock requires 2 AA batteries and clamps onto the steering rod.
Model compatibility
- Only use the supplied 12V battery and charger.
- Do not mix alkaline, standard, or rechargeable batteries in the headstock.
