Kidzone 060-ROT-18L Licensed Toyota Tacoma Ride On User Manual
Quick guide for the Kidzone 060-ROT-18L Licensed Toyota Tacoma Ride On. Includes assembly instructions, battery charging procedures, remote control pairing, and safety warnings.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the assembly, safe operation, and maintenance of the Kidzone 060-ROT-18L Licensed Toyota Tacoma Ride On. Adult assembly is required. The vehicle is intended for children aged 37-72 months with a maximum weight capacity of 66 lb (30 kg). Always ensure the child wears protective gear, such as a helmet, and is supervised by an adult at all times.
Assembly
The vehicle is shipped with the battery disconnected. Follow these steps for assembly:

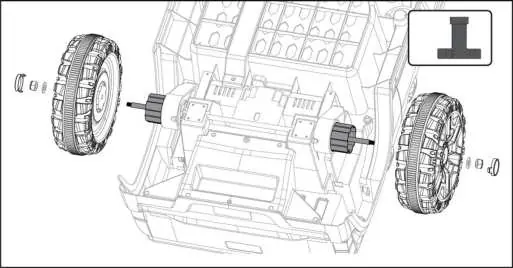

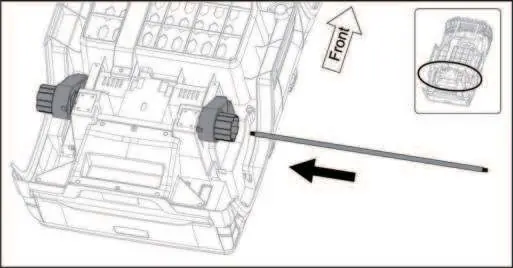

- Rear Axle: Remove M8 nuts and washers, insert the axle through the car body and motor, then secure wheels with washers and nuts.

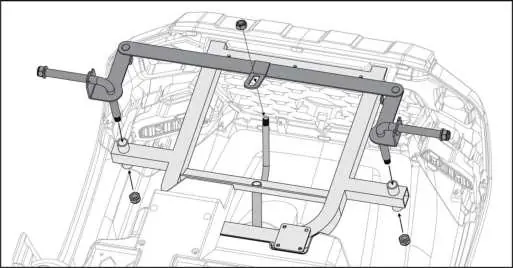

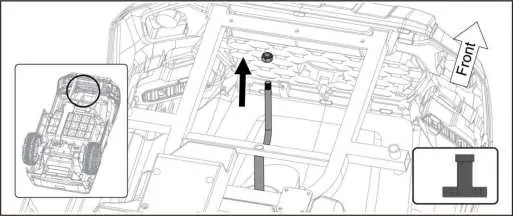

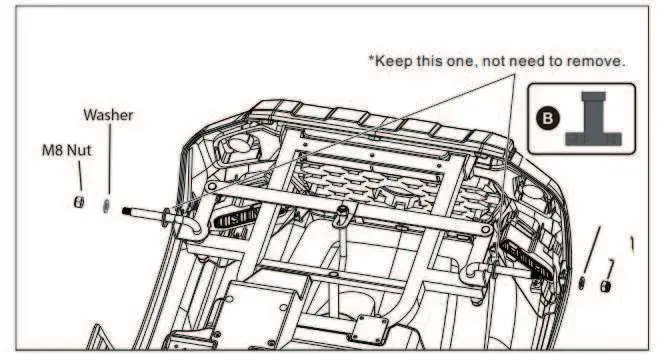

- Front Axle: Attach the front axle to the underbody frame and steering axle, then secure the wheels.
- Steering Wheel: Install 2 AA batteries into the steering wheel cover, then attach the wheel to the steering axle using the provided screw and nut.
- Seat and Accessories: Attach the wind deflector, rearview mirrors, backrest, and rear lamp assembly to the car body. Secure the seat using the provided self-tapping screws.

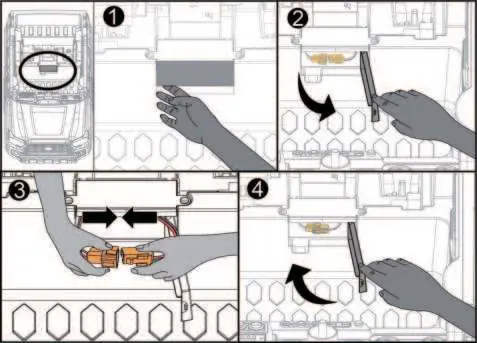

- Battery Connection: Locate the terminal cover in front of the seat, connect the battery terminal to the car terminal, and close the cover.
Charging
The battery must be charged by an adult. Do not allow the battery to drain completely.
- Disconnect the battery terminal from the car.
- Connect the battery terminal to the charger and plug into a wall outlet.
- Charging takes 8-12 hours. Do not exceed 20 hours of charging to prevent overheating.
- Reconnect the battery to the car after charging.
- Charge at least once a month if the vehicle is not in regular use.
Remote Control
The remote control must be paired with the vehicle:
- Turn off the car.
- Insert 2 AAA batteries into the remote.
- Turn on the car and wait for the LED indicator on the remote to stop flashing and remain lit.
- The remote will override manual controls when in use.
Safety and Maintenance
Regularly inspect the vehicle for loose parts or damaged wiring. Do not use the vehicle in wet conditions, near swimming pools, on steep inclines, or in traffic. The vehicle does not have braking capabilities; ensure the child is aware of this. Clean with a cloth and non-wax furniture polish; do not use a hose or immerse in water.
Manufacturer information
Kidzone Toys
Practical help
Common problems
Vehicle does not move
Check for low battery, ensure battery terminals are connected, or wait 60 seconds for the automatic fuse to reset.
Vehicle runs very slow
Charge the battery, check if the battery is old/damaged, or ensure the user weight is under 66 lb (30 kg).
Battery does not charge
Ensure the charger is firmly plugged into the power source and the battery terminal is correctly connected.
Before use
- Ensure the battery is fully charged (8-12 hours).
- Verify all parts are securely assembled and screws are tightened.
- Check that the seatbelt is fastened and the child is wearing a helmet.
- Ensure the riding area is flat, hard, and away from traffic or water.
- Confirm the battery terminal is connected to the car terminal.
Specs in practice
- Operation Time
- 40-60 minutes on a full charge.
Images and diagrams
- The control panel features buttons for FM radio, volume control, light toggle, and mode selection (engine sound, Bluetooth, AUX).
- The remote control includes directional buttons, a speed selection button, and a 'P' stop button to immediately halt the vehicle.
Model compatibility
- Only use the supplied charger and battery.
- Flash drive port supports MP3 format only.
- Bluetooth name: 'Kidzone Ride-on'.
