Kobalt 40V Backpack Sprayer KBSP 1040B-03 User Guide

Quick guide from the manual

This guide provides essential information for operating the Kobalt 40V Backpack Sprayer (KBSP 1040B-03). Always read the full manual before use. Key steps include ensuring the battery is charged, the tank is filled with thin, water-like chemicals, and the nozzle is adjusted for your desired spray pattern.

Safety Information

Warning: Always wear safety goggles or glasses with side shields and a full-face shield when needed. This product may contain chemicals known to cause cancer or reproductive harm. Do not use in the rain, do not spray toward electrical outlets, and never spray directly against skin. Keep children and bystanders away during operation.

Assembly Instructions

To Install/Remove Battery Pack:

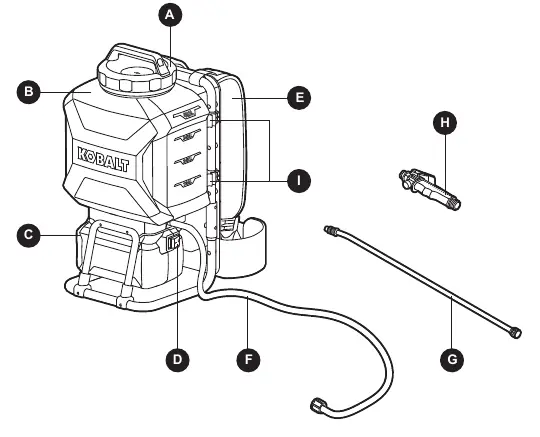

• Ensure the ON/OFF switch (D) is in the OFF “O” position.
• Open the battery bay cover (C).
• Align the mounting grooves on the battery pack with the raised ribs in the sprayer’s battery compartment.
• Slide the battery pack into the sprayer until it snaps into position.
• To remove, press the battery-release button and slide the pack out.

Operating Instructions

Connecting the Spray Wand and Hose

• Wand: Ensure the O-ring is in place inside the end cap. Thread the end cap of the spray wand (G) onto the handle (H) and tighten securely.
• Hose: Thread the end cap of the hose (F) onto the end of the handle (H) and hand-tighten.

Filling the Tank

Only use thin, water-like liquids. Do not overfill.

1. Remove the battery pack.
2. Unscrew the tank cap (A).
3. Fill the tank (B) with the desired amount of water and chemical.
4. Screw the cap (A) back on securely.

Spraying

• Turn the ON/OFF switch (D) to the ON “I” position.
• Depress the trigger on the handle (H) to start the flow.
• Use the Lock-On Trigger by depressing the trigger and sliding it forward for extended spraying. Slide it backward to release.
• Adjust the nozzle by loosening it for a stream or tightening it for a fan spray.

Care and Maintenance

Cleaning:

• Drain any remaining liquid from the tank.
• Fill the tank one-third full with clean water and spray until empty. Repeat if necessary.
• Clean the exterior with a soft, dry cloth. Never use detergent or alcohol.

Cleaning the Nozzle: If the nozzle becomes obstructed, unscrew it from the wand and push a small wire through the cross holes to clear debris. Rinse with clean water and reinstall.

Troubleshooting

If the sprayer does not work, check for low battery capacity or if the unit is overheated. If liquid leaks from joints, ensure end caps are tightened or replace the O-ring if damaged.
