User Manual for LED S Light Ceiling Light with Fan 0800619/0800626
Quick guide for installing and operating the LED S Light Ceiling Light with Fan (0800619/0800626). Includes wiring, safety, maintenance, and technical specifications.
Quick answers from the manual
Quick answer
- This is a ceiling light with an integrated fan. Installation must be performed by a qualified electrician. It is for indoor use only (IP20). p. 1, 4
Key actions
- Turn off main power before installation or maintenance. p. 4
- Ensure installation height is at least 2.3m. p. 4
First start
- Verify wiring, secure mounting screws, and check for damage before switching on power. p. 6
Show 4 more answers Show less
Problems and fixes
Abnormal vibration or noise
Do not operate the fan; report to qualified maintenance personnel.
p. 4Maintenance and reset
- Switch off main power before cleaning. Clean blades and housing with a soft, dry cloth. p. 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 25W | 16W LED + 9W Fan | p. 5 |
| Dimensions | 530mm x 187mm | Diameter x Height | p. 1, 5 |
Where to find it in the PDF

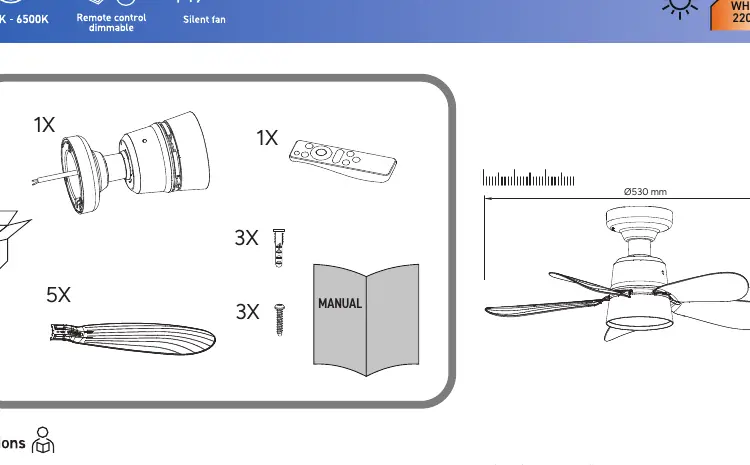

- Product Overview and Dimensions p. 1
- Installation Instructions p. 4
- Technical Specifications p. 5
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides instructions for the LED S Light Ceiling Light with Fan (Models 0800619 and 0800626). This product is designed for indoor use only and must be installed by a qualified electrician. It features adjustable color temperature and remote control operation.
Intended Use
The device is designed for general indoor applications requiring protection against dust and moisture consistent with an IP20 rating. It provides both illumination and air circulation. It is not suitable for bathrooms, wet rooms, outdoor areas, or environments exposed to moisture, condensation, or high dust/grease levels.

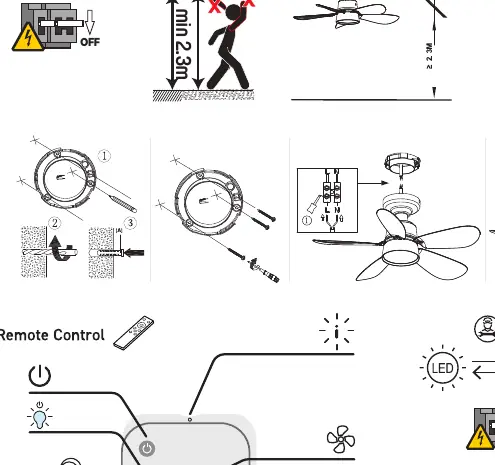

Installation
Installation must be performed by a qualified electrician. Ensure the installation height is more than 2.3 meters from the floor.
- Turn off the main power switch before starting.
- Loosen the mounting base and feed the external power wire through the center hole.
- Fix the mounting base to the ceiling using appropriate screws.
- Lift the safety rope on the bottom of the lamp and attach it to the mounting base.
- Insert the external power wires into the wiring bar (Neutral: N, Live: L).
- Position the fan lamp base into the mounting base and rotate to lock it.
- Tighten the four side screws to secure the fixture firmly.
- Turn the main power switch on and use the remote control to confirm operation.
Maintenance
Regular maintenance ensures safety and longevity.
- Switch off the main power supply before cleaning or servicing.
- Remove the fan grill and fan blade as shown in the cleaning diagrams.
- Clean the blades and housing with a soft, dry cloth only.
- Ensure all mounting screws and suspension hardware remain tight; retighten if necessary.
- Do not operate the fan if abnormal vibration or noise is present.
- Component replacement (motor, electronics, suspension parts) must only be performed by a qualified electrician.
Technical Specifications
The device operates on 220-240V~ 50/60Hz. Total power consumption is 25W (16W LED + 9W Fan). The light output is 2600lm with an adjustable color temperature of 2200K-6500K. The unit has a diameter of 530mm and a height of 187mm.
Safety and Disposal
The light cannot be operated on an external dimmer. If switched off via remote control, it cannot be switched on again from the wall switch due to the memory function. Electrical and electronic equipment must not be disposed of with household waste and should be recycled according to local regulations.
Practical help
Common problems
Fan vibrates or makes noise
Check mounting screws and suspension hardware; report to qualified personnel if persistent.
Light won't turn on
Check wiring connections and ensure the main power switch is on.
Remote control not working
Ensure main power is on; note that if switched off via remote, it cannot be turned on by the wall switch.
Before use
- Ensure installation height is greater than 2.3m
- Verify wiring connections are secure
- Check for visible damage
- Ensure all seals and covers are properly installed
Show more Show less
Images and diagrams
- The mounting base must be secured to the ceiling with appropriate screws.
- The safety rope must be attached to the mounting base during installation.
- The fan lamp base locks into the mounting base by rotation.
Model compatibility
- Not compatible with external dimmers.
- Indoor use only (IP20 rating).
