LeoVince GP One Slip-On Exhaust User Manual for Triumph Speed 400 / Scrambler 400 X
Quick guide for the LeoVince GP One Slip-On exhaust system for Triumph Speed 400 and Scrambler 400 X. Includes installation steps, maintenance tips, and important safety warnings.
Table of contents
Manual images
Click an image to enlargeImportant Information

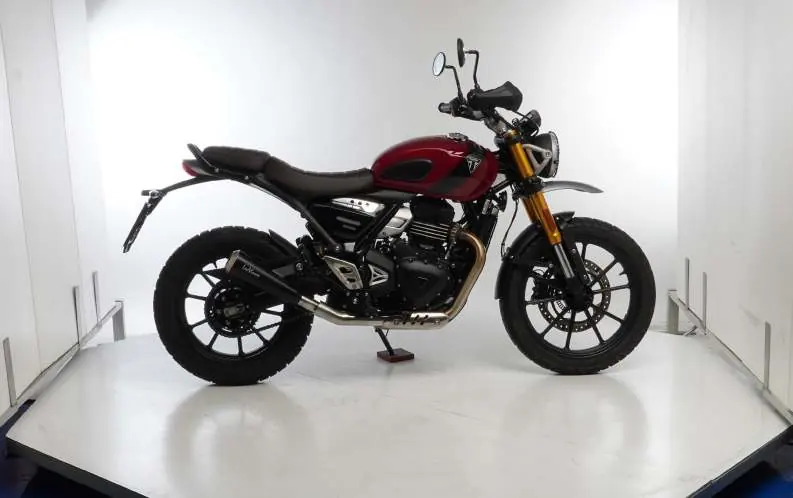

The LeoVince GP One Slip-On exhaust is designed for the Triumph Speed 400 and Scrambler 400 X. Before starting any work, ensure the exhaust system has cooled down completely to prevent burns or damage to heat-sensitive components like fairings or hoses. Professional installation is highly recommended.
Note: During the first kilometers of use, the exhaust system will undergo a break-in period. It is normal to observe slight gas leakage or white smoke during the first use, even after the engine is turned off. Check the tightness of all fasteners after approximately 100 km.
List of Components
The kit includes the following main parts:
- S.S. Muffler
- Linkpipe
- Bracket
- Fitting kit (spacers, washers, screws, nuts, springs)
Installation Instructions

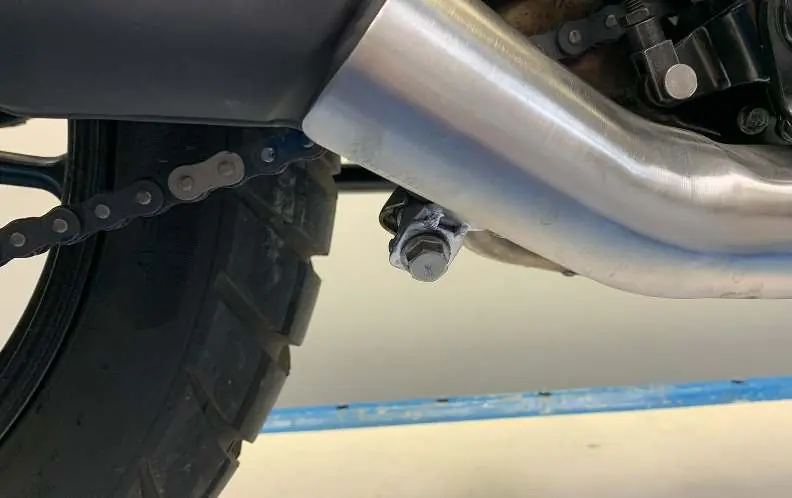

- Remove the original stock silencer.
- Verify that all mating surfaces are clean and in good condition.
- Mount spacers, washers, and brackets as shown in the technical drawing, securing them with the provided or original bolts.
- Fit the clamp onto the LeoVince pipe.
- Connect the LeoVince pipe to the stock pipe.
- Partially tighten the securing strap to allow for final adjustments.

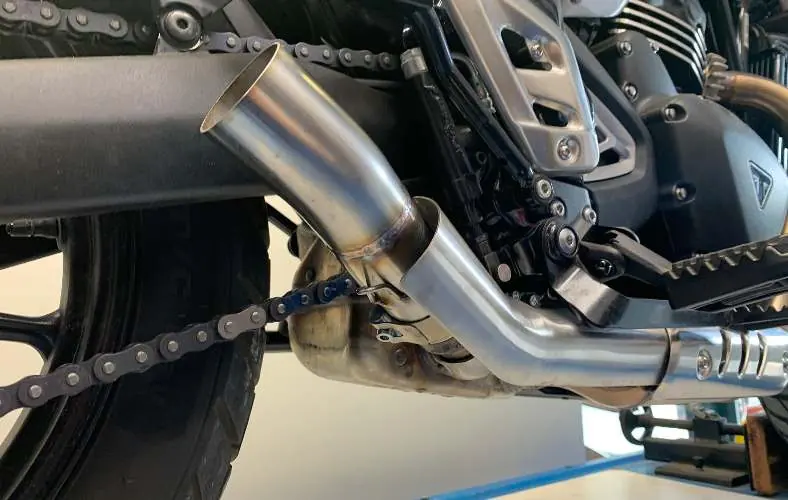

- Install the LeoVince muffler.
- Mount spacers, washers, and brackets, securing them with the provided or original bolts.

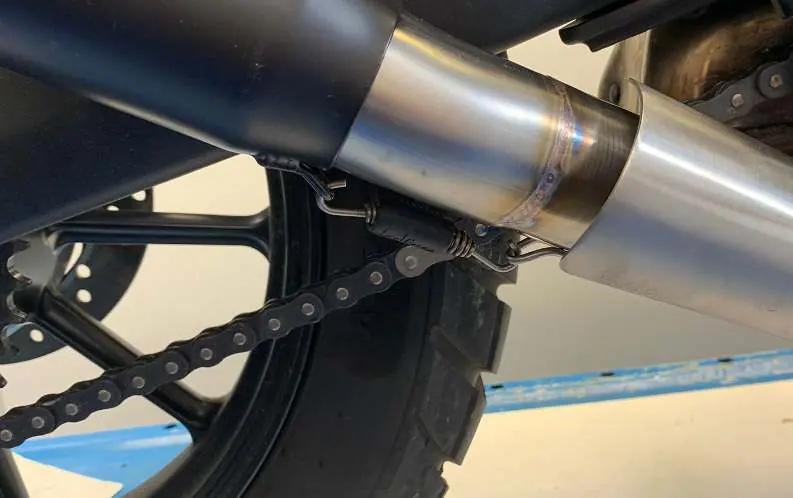

- Link the parts together using the supplied springs or clamps.
- Check for correct alignment of all components.
- Tighten all fasteners securely.
- Start the engine, wait a few minutes until it reaches operating temperature, and verify that there are no gas leaks.
Maintenance
Periodically check all brackets and fasteners, as they may be affected by heat and vibration. Replace worn components such as sound-deadening material, seals, or rubber parts as needed. For cleaning, use gasoline, diesel oil, or alcohol. Do not use any solvents. Discoloration of the silencer is normal due to heat and material properties. Any modification or tampering with the silencer is strictly prohibited and voids the warranty.
Manufacturer information
LeoVince
Practical help
Common problems
Slight gas leakage during first use
This is normal during the break-in period. Check all fasteners after 100 km.
White smoke appearing from exhaust
This is normal during the first use of the exhaust system.
Before use
- Ensure the engine and exhaust are completely cool
- Verify all components from the parts list are present
- Have a rubber mallet available for pipe fitting
- Professional installation is recommended
- Check for heat-sensitive parts near the exhaust
Specs in practice
- Stainless Steel
- The material construction of the exhaust components.
Images and diagrams
- The exploded view illustrates the assembly order of the muffler, bracket, spacers, and springs.
- Images show the step-by-step removal of the stock muffler and installation of the LeoVince system.
Model compatibility
- Compatible with Triumph Speed 400
- Compatible with Triumph Scrambler 400 X
