User Manual for Lightpro Kuma 184W LED Wall Lamp
Quick guide for the Lightpro Kuma 184W LED wall lamp. Includes installation steps, technical specifications, safety instructions, and maintenance tips for your 12V outdoor lighting system.
Quick answers from the manual
Quick answer
- The Lightpro Kuma 184W is a 12V LED wall lamp for outdoor use. It must be connected to a Lightpro 12V transformer system. p. 6, 7, 8, 9
Key actions
- Mounting the fixture p. 2, 4
- Connecting to the system p. 5
Maintenance and reset
- Clean regularly with a soft, clean cloth. Do not use high-pressure washers or aggressive chemicals. p. 10, 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 6W | Maximum power consumption | p. 6, 7, 8, 9 |
| Luminous flux | 300 lm | Maximum light output | p. 6, 7, 8, 9 |
| Protection class | IP44 | Water resistance rating | p. 6, 7, 8, 9 |
Where to find it in the PDF
- Installation diagrams p. 2, 3, 4
- System connection p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Lightpro Kuma 184W is an LED wall lamp designed for outdoor use. It must be connected to a Lightpro 12V transformer system. The light source is non-replaceable, and the unit is not dimmable. Ensure the product is accessible for maintenance and never embed it permanently in brickwork or concrete.
Product description
The Kuma is an LED wall lamp for outdoor use. It can be mounted on a solid surface. The product is rated IP44, making it suitable for outdoor environments with temperatures ranging from -20 °C to 50 °C.
Installation
Preparation: Check that all parts are present: fixture, screws, plugs, Lightpro connector, and hex key.
Step-by-step installation:
- Disassembly: Use the included hex key to remove the screws from the fixture and remove the hood.
- Cable routing (Optional): If routing the cable through a wall, drill a 10mm hole. Open the screw connector in the cable, pass the cable through the hole, and reconnect the screw connector.
- Mounting: Install the back plate using the provided screws and plugs if necessary.
- Reassembly: Place the hood back over the back plate, insert the screws, and tighten them using the hex key.
System connection
Connect the fixture to the main cable using the Lightpro connector. Ensure the connector is twisted securely to make a waterproof connection. Consult your transformer manual for detailed instructions on setting up your lighting plan.
Safety and maintenance
- Safety: This product is Protection Class III and must only be connected to safety extra-low voltage (max 12V). Do not use in areas where combustible gases, fumes, or liquids are stored.
- Cleaning: Clean regularly with a soft, clean cloth. Do not use abrasives, high-pressure washers, or aggressive chemical cleaning agents.
- Stainless steel parts: If applicable, clean stainless steel parts with a stainless steel cleaning agent once every 6 months.
Practical help
Common problems
Light does not turn on
Check the connection to the 12V transformer and ensure the main cable is powered.
Water ingress
Ensure the fixture is mounted correctly and that any drain holes are pointing downwards.
Before use
- Verify all parts are present (fixture, screws, plugs, connector, hex key).
- Ensure you have a compatible Lightpro 12V transformer.
- Check the mounting surface for suitability.
- Ensure the installation location is not permanently embedded or bricked in.
Images and diagrams

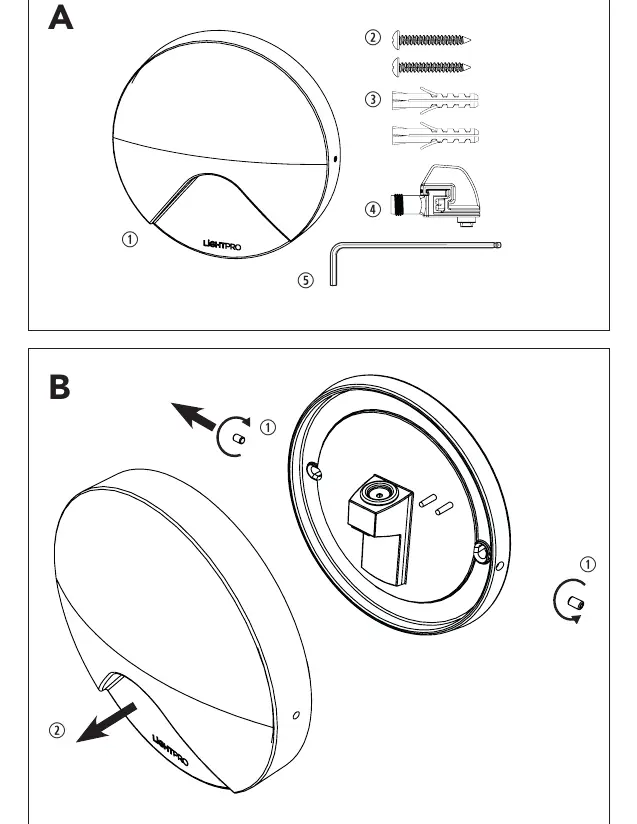

- Figure A: Package contents including fixture, screws, plugs, connector, and hex key.
- Figure B: Disassembly process using the hex key.
- Figure C: Cable routing through a wall.

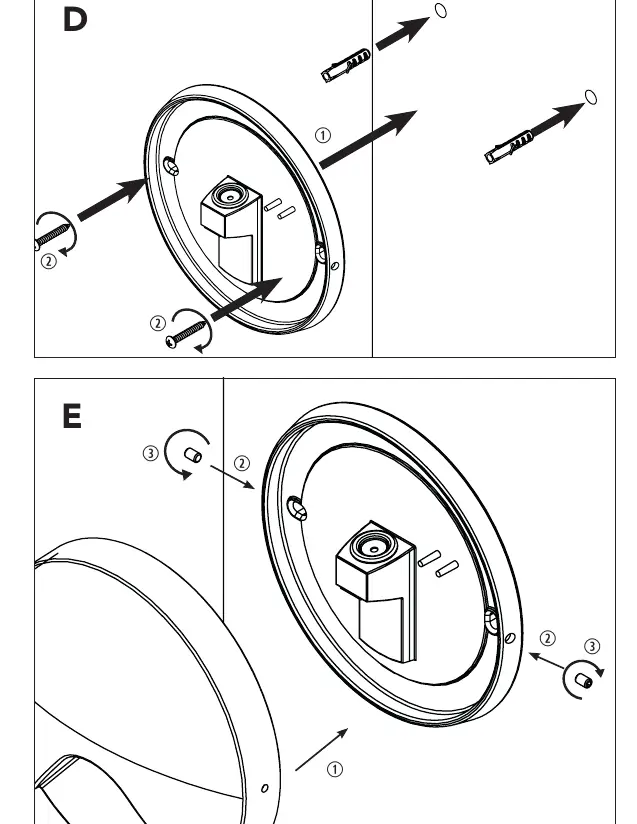

- Figure D: Mounting the back plate.
- Figure E: Reassembling the hood.
Model compatibility
- Must be used with the Lightpro 12V system.
- Not dimmable.
- Light source is not replaceable.
