The Lightpro Polaris 185W is an LED wall lamp designed for outdoor use. It operates exclusively on the Lightpro 12-volt system. This guide provides essential information for installation, safety, and maintenance. Always consult the manual of your specific transformer for detailed lighting plan connections.

Product Description

The Polaris is an LED wall lamp that can be mounted on solid surfaces or placed in the ground using supplied spikes. It is a 12V system component and is not dimmable. The light source is not replaceable.

Lightpro Polaris 185W
Lightpro Polaris 185W

Packaging Content

Parts list (Figure A)
Parts list (Figure A)
  • Polaris fixture
  • Screws
  • Plugs
  • Lightpro connector

Installation

Disassembly (Figure B)
Disassembly (Figure B)
Cable routing (Figure C)
Cable routing (Figure C)
Mounting (Figure D)
Mounting (Figure D)
System connection
System connection

Preparation

Ensure all parts are present. Plan your cable routing before starting the installation.

Step-by-Step Installation

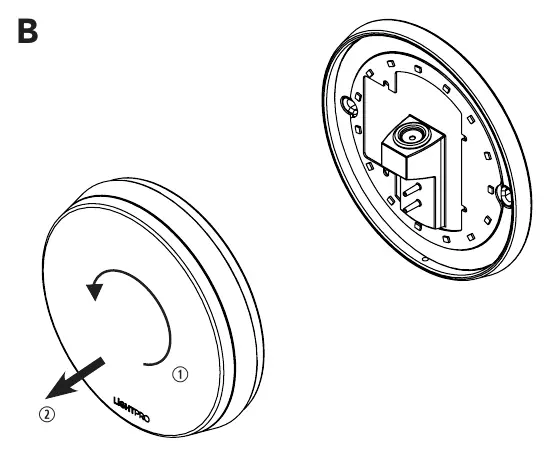

  1. Disassembly: Unscrew the cap from the back plate and remove it from the fixture.
  2. Cable Routing (Optional): If passing the cable through a wall, drill a 10mm hole. Open the screw connector in the cable, pass the cable through the hole, and reconnect the screw connector.

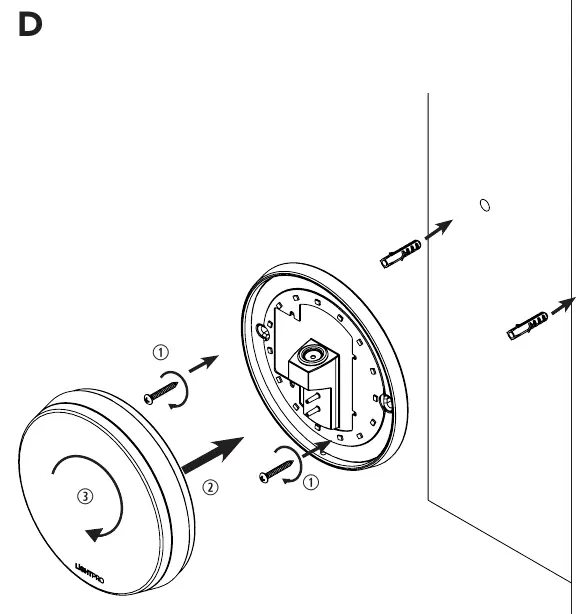

  3. Mounting: Install the back plate using the included screws. If necessary, drill holes in the wall and use the included plugs.
  4. Final Assembly: Place the cap back onto the back plate and fasten it securely.

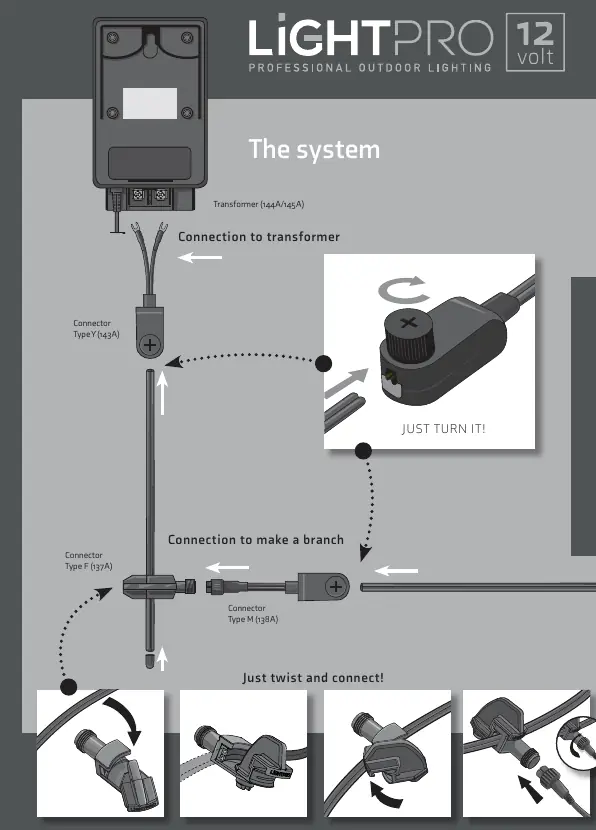

  5. System Connection: Connect the fixture to the main cable using the Lightpro connector as shown in the system diagram.

Safety and Maintenance

  • Safety: Always install the product so it remains accessible for maintenance. Do not permanently embed or brick in the product.
  • Power: Turn off the system by unplugging the transformer before performing maintenance.
  • Cleaning: Clean regularly with a soft, clean cloth. Avoid abrasives.
  • Stainless Steel: Clean stainless steel parts with a stainless steel cleaning agent once every 6 months.
  • Restrictions: Do not use high-pressure washers or aggressive chemical cleaners. Do not use in areas where combustible gases, fumes, or liquids are stored.
  • Environment: Suitable for ambient temperatures between -20 °C and 50 °C.

Practical help

Common problems

Light does not turn on

Check the connection to the transformer and ensure the 12V system is powered.

Cable installation through wall

Drill a 10mm hole, open the screw connector, pass the cable through, and reconnect.

Before use

  • Verify all parts are present in the packaging
  • Ensure you have a compatible Lightpro 12V transformer
  • Plan the cable layout for the lighting system
  • Check that the mounting surface is suitable for the screws and plugs

Specs in practice

Protection class
IP44, suitable for outdoor use
Ambient temperature
Operating range from -20 °C to 50 °C

Images and diagrams

  • Figure A: Identification of parts
  • Figure B: Disassembly of the fixture
  • Figure C: Cable routing through a wall
  • Figure D: Mounting the back plate and cap
  • System Diagram: Connecting to the transformer and branching

Model compatibility

  • Only for use with Lightpro 12V system
  • Not dimmable
  • Light source is not replaceable
