User Manual for Lincoln Electric WELD-PAK® 180i MP® DV Welder
Quick guide for the Lincoln Electric WELD-PAK® 180i MP® DV multi-process welder. Learn about setup, included accessories, specifications, and welding processes.
Quick answers from the manual
Quick answer
- The WELD-PAK® 180i MP® DV is a multi-process welder capable of MIG, Flux-Cored, Stick, and DC TIG welding, compatible with both 120V and 230V power sources. p. 1
Key actions
- Change drive rolls p. 2
- Select welding process p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| MIG Output | 165A/22V/30% Duty Cycle | Rated output for MIG welding. | p. 4 |
| Weight | 34.5 lbs (15.6 kg) | Net weight of the unit. | p. 4 |
Where to find it in the PDF
- Features and Overview p. 1
- Wire Drive and Drive Rolls p. 2
- Included Items and Accessories p. 3
- Specifications p. 4
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Lincoln Electric WELD-PAK® 180i MP® DV is a portable, multi-process welding machine capable of MIG, Flux-Cored, Stick, and DC TIG welding. It is designed for home, shop, farm, and autobody applications. The unit features a dual-voltage input (120V or 230V) and an intuitive user interface with a simple two-knob operation and single-button process selection.

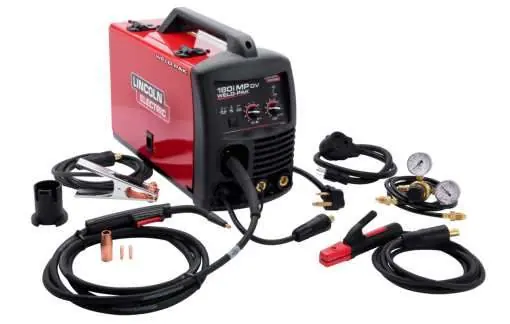

Included Accessories
The package includes the following items:
- Gun: Magnum® 100L gun with 10 ft. cable, brass connection, and 8-pin trigger connector.
- Consumables: .025 in. and .030 in. contact tips, gasless nozzle for Innershield® welding, and gas nozzle for MIG welding.
- Wire Feed: Spindle adapter for 8 in. diameter spools and a dual track drive roll (.025 - .035 in.).
- Gas Apparatus: Harris® Gas Regulator and 52 in. hose for Ar/CO2 blend gases.
- Other: Work clamp with 10 ft. cable, electrode holder with 10 ft. cable for stick welding, and a Quick Start guide.
Welding Processes
This machine supports multiple welding methods:
- MIG Welding: 20-180 Amps.
- DC TIG Welding: 10-165 Amps.
- Stick Welding: 25-160 Amps.
- Flux-Cored Welding: Supported.
Wire Drive Operation
The heavy-duty wire drive system includes:
- Brass-to-brass gun connection: Enhances conductivity.
- Drive Tension: Easy-turn adjustment with numeric tension indicators.
- Toolless Changeovers: Fast drive roll change capability.
- Spool Gun Ready: Switch allows selection between spool gun or standard push gun operation.
Technical Specifications
The unit operates on 120/230V input power. Key performance metrics include:
- MIG Output: 165A/22V at 30% duty cycle.
- TIG Output: 165A/16.6V at 30% duty cycle.
- Stick Output: 160A/26.4V at 25% duty cycle.
- Weight: 34.5 lbs (15.6 kg).
Optional Accessories
Enhance your welding setup with these available options:
- Welding Cart (K2275-3): Designed to store the welder, gas cylinder, and cables.
- PTA-17 TIG Torch: Available in 125 Amp (K1782-16) and 150 Amp (K1782-17) versions.
- Foot Pedal (K4361-1): Controls amperage during TIG welding.
- Magnum® 100SG Spool Gun (K5341-1): Required for aluminum welding.
Practical help
Common problems
Aluminum welding not working
Aluminum welding requires the optional K5341-1 Magnum® spool gun.
Wire feeding issues
Check drive tension using the numeric indicators and ensure the correct drive roll is installed for the wire diameter.
Before use
- Verify input power source (120V or 230V).
- Ensure the correct contact tip is installed for the wire diameter.
- Connect the appropriate gas regulator if performing MIG welding.
- Select the correct process using the single button interface.
- Check that the drive roll matches the wire diameter.
Images and diagrams
- The wire drive mechanism features a numbered system (1-6) for components including the gun connection, drive tension adjustment, and spool gun switch.
Model compatibility
- Aluminum welding requires the optional K5341-1 Magnum® spool gun.
- TIG welding requires an optional PTA-17 TIG torch and foot pedal for optimal control.
