Installation Guide for Matchmaster 04MM-TB02X Full-Motion TV Wall Mount
Step-by-step installation guide for the Matchmaster 04MM-TB02X full-motion TV wall mount. Includes mounting instructions for concrete and wood stud walls, VESA compatibility, and safety guidelines.
Table of contents
Quick guide from the manual
The Matchmaster 04MM-TB02X is a full-motion TV wall mount designed for screens with VESA patterns ranging from 75x75mm up to 400x400mm. The maximum weight capacity for this mount is 30kg (66lbs). Ensure your wall structure is capable of supporting the combined weight of the mount and the television before installation.
Safety warnings
- Do not exceed the maximum weight capacity of 30kg.
- Ensure the wall is strong enough to support the mount and TV.
- Use the provided hardware; do not overtighten screws.
- This product is intended for indoor use only.
Installation
The installation process varies depending on your wall type (concrete/brick or wood stud).
Wall plate installation
For concrete or brick walls, use the appropriate anchors and screws. For wood stud walls, ensure the mount is secured directly into the center of the studs. Use a level to ensure the wall plate is perfectly horizontal before tightening the screws.
Attaching the mount to the TV
Select the correct screws (M5, M6, or M8) and spacers (if necessary) based on your TV's mounting hole depth. Attach the mounting brackets to the back of the TV using the provided hardware.
Final assembly
Once the wall plate is secured and the brackets are attached to the TV, hook the TV onto the wall plate. Secure the safety screws to lock the TV in place.
Adjustments
The mount allows for tilt adjustments. Loosen the adjustment knobs, set the desired angle, and tighten the knobs to secure the position.
Manufacturer information
Matchmaster Communications Pty Ltd
Practical help
Common problems
TV is not level after installation
Check the wall plate alignment with a level and adjust the tilt mechanism screws if necessary.
Mounting screws do not fit the TV
Verify you are using the correct size (M5, M6, or M8) provided in the kit. Use spacers if the screws are too long.
Before use
- Verify wall type (concrete/brick or wood stud).
- Check if TV weight is under 30kg.
- Confirm VESA pattern matches (75x75 to 400x400).
- Ensure all hardware (screws, spacers) is present.
- Have a drill, level, and screwdriver ready.
Specs in practice
- VESA Compatible
- The standard distance between mounting holes on the back of the TV (e.g., 200x200mm).
- 30kg (66lbs) RATED
- The maximum weight capacity the mount can safely support.
Images and diagrams

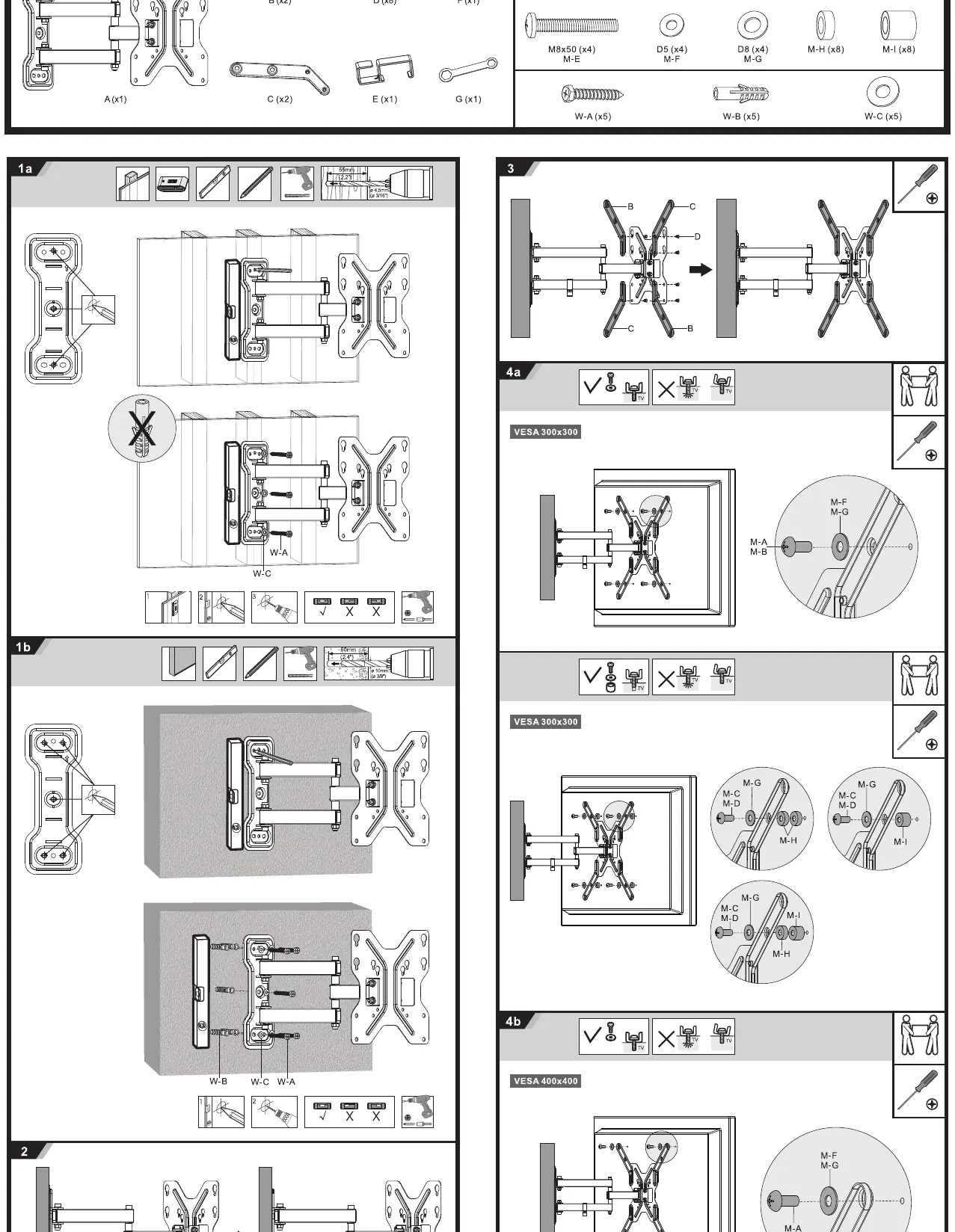

- 1a/1b: Wall plate installation for concrete/brick or wood stud walls.
- 3: Attaching the mount brackets to the back of the TV.
- 4a/4b: Hanging the TV on the wall plate and securing it.
Model compatibility
- Supports VESA patterns: 75x75, 100x100, 200x100, 200x200, 300x300, 400x400.
- Maximum load capacity: 30kg.
