Installation Instructions for Maxax 19186-1BN 1-Light Chandelier
A comprehensive installation guide for the Maxax 19186-1BN 1-Light Chandelier. Includes step-by-step assembly instructions, wiring diagrams, parts list, and safety precautions for proper setup.
Quick answers from the manual
Quick answer
- The Maxax 19186-1BN is a 1-light chandelier. Installation involves mounting the bracket to the ceiling junction box, connecting the wires (L, N, and Ground), attaching the canopy, and installing an E26 bulb. p. 2
Key actions
- Turn off power at the main circuit breaker before starting installation. p. 2
- Connect the hot wire (L), neutral wire (-), and ground wire (bare copper). p. 2
Problems and fixes
Risk of fire
Ensure wires are connected correctly and bulb wattage does not exceed 60W.
p. 2Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | E26 | Standard medium base | p. 2 |
| Max Wattage | 60W | Maximum power rating per bulb | p. 2 |
Where to find it in the PDF
- Installation Instructions p. 2
Table of contents
Manual images
Click an image to enlargeSafety and Preparation
Before beginning the installation, it is highly recommended to have a qualified electrician install the fixture. Ensure the electricity is turned off at the main circuit breaker before starting. Handle all glass components with care as they are fragile. If using special control devices, follow the instructions carefully to ensure compliance with N.E.C. requirements.
Parts Included
- A: Mounting Bracket (1 PCS)
- B: Canopy (1 PCS)
- C: Cover Nut (2 PCS)
- D: Chain (1 PCS)
- E: Lamp Shade (1 PCS)
Installation Steps
- Step 1: Screw the lamp shade (E) to the chain (D).
- Step 2: Screw the chain (D) to the canopy assembly (B).
- Step 3: Lock the crossbar (Mounting Bracket A) to the junction box of the ceiling using 2 pcs of 5/32 screws.
- Step 4: Connect the wires and attach the canopy (B) to the ceiling with screws (C).
- Step 5: Install 1 E26 light bulb (not included).
Wiring Instructions
Wires meeting safety standards are required to connect the electrical circuit. The hot/positive wire (+) has an "L" label. The other wire is the negative wire (-). The bare copper wire is the ground wire.
Technical Specifications
- Bulb Type: E26
- Voltage: 110-130V/60Hz
- Maximum Wattage: 60W
Support
If you have any questions or problems, please contact support at [email protected] or call 469-312-6428.
Practical help
Common problems
Fixture not working after installation
Ensure the bulb is properly installed and the main circuit breaker is turned on.
Risk of fire
Do not exceed the maximum bulb wattage of 60W and ensure all wiring connections are secure.
Before use
- Turn off electricity at the main circuit breaker
- Verify all parts (A, B, C, D, E) are present
- Ensure you have an E26 bulb (not included)
- Handle glass components with care
Show more Show less
Specs in practice
- 110-130V/60Hz
- Standard North American electrical supply
Images and diagrams

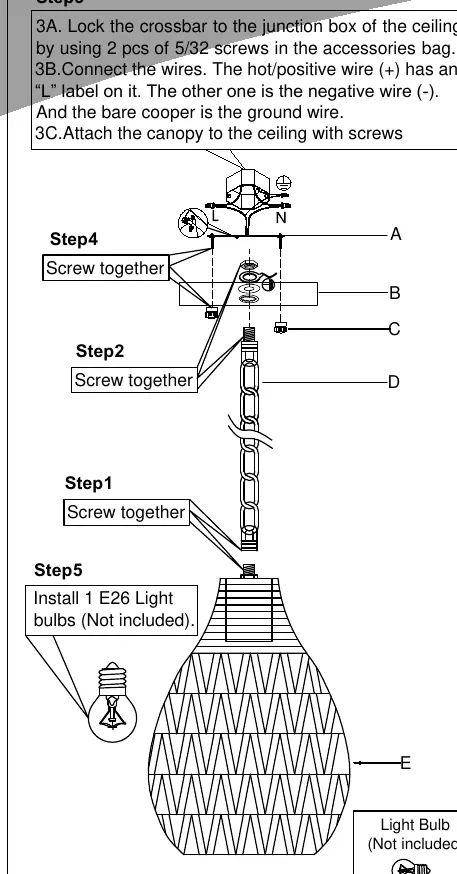

- The wiring diagram illustrates the connection of the hot (L), neutral (N), and ground (bare copper) wires to the junction box.
Model compatibility
- Requires E26 bulb (not included).
- Rated for 110-130V/60Hz.
