Installation Instructions for Minka Lavery 1701-781 Semi-Flush Mount Light
A comprehensive installation guide for the Minka Lavery 1701-781 3-Light Semi-Flush Mount Light. Includes step-by-step wiring instructions, assembly procedures, and safety warnings.
Quick answers from the manual
Quick answer
- This document provides instructions for installing the Minka Lavery 1701-781 3-Light Semi-Flush Mount Light, including wiring and assembly steps. p. 1
Key actions
- Shut off power at the circuit breaker. p. 1
- Connect wires: Black to Hot, White to Neutral, Bare Copper to Ground. p. 1
- Install three medium base bulbs (max 60W each). p. 1
First start
- Return power to the junction box and test the fixture. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Wattage | 60W per bulb | Maximum power rating per bulb socket. | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick Guide for Installation
This document provides the necessary steps to install the Minka Lavery 1701-781 semi-flush mount light. Before beginning, ensure you have all parts listed in the manual and that the power is completely shut off at the circuit breaker. The installation requires basic electrical knowledge; if you are unsure, consult a qualified electrician.
Preparation
1. Shut off power at the circuit breaker and remove the old fixture, including the existing mounting hardware.
2. Carefully unpack the fixture and verify that all parts are included as shown in the illustration.
Installation Steps
1. Secure the rod (F) to the top of the fixture body (G) and the canopy (D), pulling the wires through as you assemble.
2. Thread the mounting screws (A) into the pre-drilled holes in the crossbar (B). Adjust the length of the screws if necessary to match the holes in the canopy (D).
3. Attach the crossbar (B) to the junction box (S) using the provided mounting screws (Q). Ensure the side of the crossbar marked “GND” faces outward.
Wiring Connections
Connect the electrical wires as follows:
- Black or Smooth fixture wire: Connect to the Black (Hot) house wire.
- White or Ribbed fixture wire: Connect to the White (Neutral) house wire.
- Bare Copper fixture wire: Connect to the Green (Ground) house wire. If the junction box does not have a ground wire, connect the fixture's ground wire directly to the crossbar (B) using the provided green screw (R).
Ensure all wire connectors are secure and tuck them neatly into the junction box (S).
Final Assembly
1. Slide the canopy (D) over the screws (A) and secure it using the finials (E).
2. Install three medium base bulbs (up to 60 watts each) or equivalent CFL/LED bulbs. Do not exceed the maximum wattage rating.
3. Slide the metal washer (I), rubber washer (J), glass (N), and finial cap (M) over the bottom center stem (H).
4. Use the hex nut (K) and finial (L) to secure the glass (N) and finial cap (M) to the fixture body.
Once assembly is complete, restore power to the junction box and test the fixture.
Practical help
Common problems
Fixture does not turn on
Verify that power is restored at the circuit breaker and that all wire connections are secure.
Glass shade is loose
Ensure the hex nut (K) and finial (L) are tightened securely against the finial cap (M).
Before use
- Shut off power at the circuit breaker
- Verify all parts are present
- Ensure junction box is compatible
- Have a qualified electrician available if needed
Show more Show less
Images and diagrams

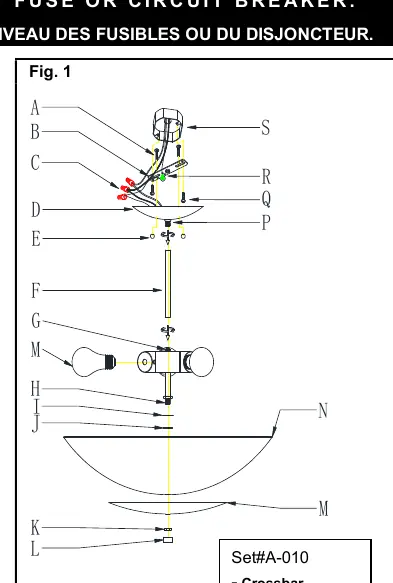

- Fig 1 shows the assembly order of the fixture components and canopy mounting.
- Fig 2 illustrates the correct wire-to-wire connections for hot, neutral, and ground wires.
