Installation Instructions for Minka Lavery 2001/2002-77-L Vanity Light
A complete installation guide for the Minka Lavery 2001/2002-77-L vanity light, including wiring diagrams, mounting steps, and dimmer compatibility information.
Quick answers from the manual
Quick answer
- To install the Minka Lavery 2001/2002-77-L, shut off power, attach the mounting plate to the junction box, connect the wires (Black to Hot, White to Neutral, Green to Ground), secure the fixture body, and attach the glass shade. p. 1
Key actions
- Mounting the fixture p. 1
- Connecting wires p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimming | ELV / LED compatible | Compatible with ELV and/or LED compatible wall dimmer switches. | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for installing the Minka Lavery 2001/2002-77-L vanity light. Important: Always shut off power at the fuse box or circuit breaker before beginning installation. The fixture is compatible with ELV and/or LED compatible wall dimmer switches.
Mounting the fixture
- Shut off power at the fuse box or circuit breaker box and remove the old fixture.
- Unpack the new fixture and organize all parts.
- Loosen screws (D) to remove the mounting plate (A) from the fixture body (C).
- Attach the mounting plate (A) to the junction box using the provided mounting screws (B). Ensure the side marked "GND" faces out.
- Place the fixture body (C) over the mounting plate (A) and secure it with screws (D).
- Slide screws (E) through plastic gaskets (F) and the glass shade (G), then secure them on the heat sink (H).
Connecting the wires
Follow these wiring connections to ensure safety:
- Black or Smooth fixture wire: Connect to Black (Hot) house wire.
- White or Ribbed fixture wire: Connect to White (Neutral) house wire.
- Green or Bare Copper fixture wire: Connect to Green (Ground) house wire. If the junction box does not have a ground wire, connect the fixture's ground wire directly to the mounting plate (A) using the provided green screw.
After connections are made, carefully tuck all wires inside the junction box.
Practical help
Common problems
Fixture does not turn on after installation
Verify that the power is turned on at the circuit breaker and check that all wire connections are secure.
Dimmer switch compatibility
Ensure you are using an ELV or LED compatible wall dimmer switch.
Before use
- Shut off power at the fuse box or circuit breaker.
- Remove the old fixture and mounting hardware.
- Ensure the junction box is compatible (not included).
- Verify all parts are present (Mounting Plate, Ground Screw, Mounting Screws).
Show more Show less
Images and diagrams

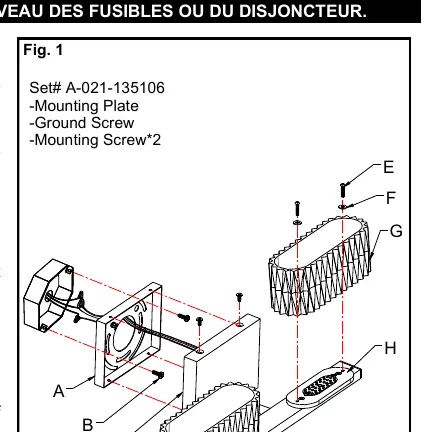

- Fig. 1 illustrates the mounting process, showing the attachment of the mounting plate to the junction box and the fixture body to the plate.
- Fig. 2 illustrates the correct wiring connections for Hot, Neutral, and Ground wires.
Model compatibility
- Requires a standard junction box (not included).
- Compatible with ELV and LED dimmers.
