Installation Instructions for Minka Lavery 2003-77-L Vanity Light
A comprehensive installation guide for the Minka Lavery 2003-77-L vanity light. Includes step-by-step mounting instructions, wiring diagrams, and compatibility information for dimmers.
Quick answers from the manual
Quick answer
- This document provides installation instructions for the Minka Lavery 2003-77-L vanity light, covering mounting, wiring, and finishing steps. p. 1
Key actions
- Mounting the fixture p. 1
- Connecting the wires p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimming | ELV/LED compatible | Compatible with ELV and/or LED wall dimmer switches. | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Warning: Always shut off power at the fuse box or circuit breaker box before beginning any installation work. Failure to do so may result in electrical shock or injury.
Mounting the Fixture
- Shut off power at the fuse box or circuit breaker box and remove the old fixture, including the existing mounting hardware.
- Unpack the new fixture and lay out all parts in a clear area to ensure nothing is missing.
- Loosen the screws (D) to remove the mounting plate (A) from the fixture body (C).
- Position the mounting plate (A) on the wall and mark the location for two drywall anchors (I). Pre-drill the holes and insert the drywall anchors into the wall.
- Attach the mounting plate (A) to the junction box (not included) using the provided mounting screws (B). Important: The side of the mounting plate marked "GND" must face outward.
- Secure the mounting plate (A) to the wall by driving the woodscrews (J) through the holes into the drywall anchors (I).
Connecting the Wires
Follow the wiring diagram (Fig. 2) to ensure correct connections:
- Black (Hot) Wire: Connect the fixture's black or smooth wire to the house black wire.
- White (Neutral) Wire: Connect the fixture's white or ribbed wire to the house white wire.
- Ground Wire: If the junction box has a ground wire (green or bare copper), connect the fixture's ground wire to it. If not, connect the fixture's ground wire directly to the mounting plate (A) using the provided green screw.
Ensure all wire connectors are secure and tuck the wires carefully inside the junction box.
Finishing the Installation
- Place the fixture body (C) over the mounting plate (A) and secure it using the screws (D).
- Slide the screws (E) through the plastic gaskets (F) and the glass shade (G), then secure them onto the heat sink (H).
- Return power to the circuit and test the fixture.
Compatibility and Notes
This fixture is dimmable using ELV and/or LED compatible wall dimmer switches. Note that the LED module should be provided by a specified supplier.
Practical help
Common problems
Fixture not grounding properly
If the junction box lacks a ground wire, connect the fixture's ground wire directly to the mounting plate using the provided green screw.
Mounting plate orientation
Ensure the side of the mounting plate marked "GND" is facing outward during installation.
Before use
- Shut off power at the fuse box or circuit breaker.
- Verify the junction box is compatible and installed.
- Ensure you have all parts: mounting plate, screws, gaskets, and glass shade.
- Check if your dimmer switch is ELV or LED compatible.
Show more Show less
Specs in practice
- ELV/LED Dimmer
- The fixture is compatible with Electronic Low Voltage (ELV) and LED-specific wall dimmer switches.
Images and diagrams

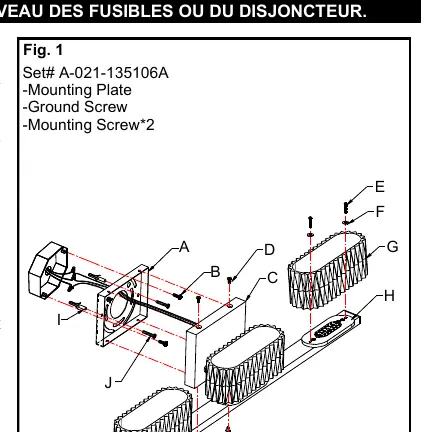

- Fig. 1 illustrates the mounting plate assembly and screw locations.
- Fig. 2 provides a wiring guide showing how to match fixture wires to house wires.
Model compatibility
- Compatible with ELV and LED wall dimmer switches.
