Installation Instructions for Minka Lavery 2012-66A-L LED Vanity Light

A comprehensive installation and maintenance guide for the Minka Lavery 2012-66A-L LED Vanity Light. This guide covers mounting procedures, electrical wiring diagrams, and instructions for replacing the LED module.

Quick answers from the manual

Quick answer

  • This manual provides instructions for installing the Minka Lavery 2012-66A-L LED Vanity Light and replacing its LED module. p. 1

Key actions

  • Mounting the fixture p. 1
  • Connecting wires p. 1

First start

  • Shut off power at the fuse box or circuit breaker before starting installation. p. 1
Show 4 more answers Show less

Problems and fixes

LED module replacement

Follow the specific steps in Fig 3 to disconnect wires via quick connectors and remove the module.

p. 1

Maintenance and reset

  • The LED module is replaceable by a qualified electrician. p. 1

Technical specifications

Parameter Value Meaning Pages
Dimming ELV / LED compatible Compatible with ELV and/or LED wall dimmer switches. p. 1

Where to find it in the PDF

  • Installation and LED Replacement Instructions p. 1
Table of contents

Manual images

Click an image to enlarge

Quick Guide

This document provides installation and maintenance instructions for the Minka Lavery 2012-66A-L LED Vanity Light. Important: Always shut off power at the fuse box or circuit breaker before beginning any installation or maintenance work.

Mounting the Fixture

Follow these steps to mount the fixture to your junction box:

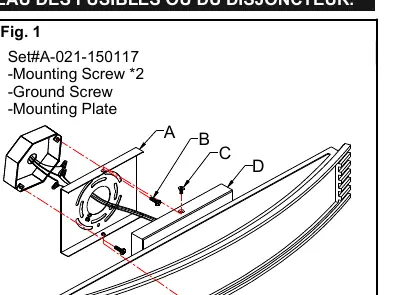

Mounting the fixture to the junction box
Mounting the fixture to the junction box
  • Shut off power at the fuse box or circuit breaker.
  • Remove the old fixture and mounting hardware.
  • Loosen screws (C) to remove the mounting plate (A) from the fixture body (D).
  • Attach the mounting plate (A) to the junction box using the provided mounting screws (B). Ensure the side marked "GND" faces outward.
  • Place the fixture body (D) over the mounting plate (A) and secure it using screws (C).

Connecting the Wires

Ensure all wire connectors are secure. Follow the wiring configuration below:

Wiring diagram
Wiring diagram
  • Black or Smooth wire: Connect to the House Black (Hot) wire.
  • White or Ribbed wire: Connect to the House White (Neutral) wire.
  • Bare Copper or Green wire: Connect to the House Green (Ground) wire. If the junction box lacks a ground wire, connect the fixture's ground wire directly to the mounting plate (A) using the provided green screw.
  • Tuck all wire connectors neatly into the junction box.

Replacing the LED Module

The LED module can be replaced by a qualified electrician without cutting wires or damaging decorative elements:

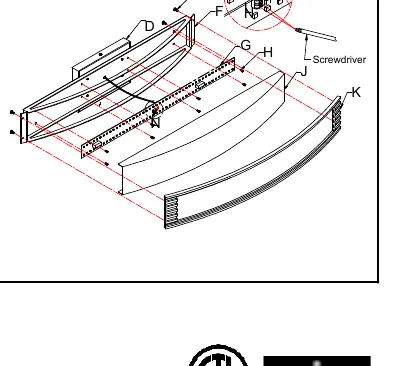

LED module replacement diagram
LED module replacement diagram
  1. Shut off the power.
  2. Remove screws (C) and detach the fixture body from the mounting plate (A).
  3. Disconnect wire connectors and place the fixture on a clean surface.
  4. Loosen screws (E) to remove the rectangular plate (K) and acrylic shade (J).
  5. Use a screwdriver to press the button marked "L" on the quick connector to disconnect the black wire.
  6. Disconnect the white wire marked "N" on the quick connector.
  7. Loosen screws (H) and carefully remove the LED module (G).
  8. Reverse these steps to install the new LED module.

Technical Specifications

The fixture is dimmable using ELV (Electronic Low Voltage) and/or LED compatible wall dimmer switches.

Practical help

Common problems

Fixture does not light up

Verify that power is turned on at the circuit breaker and check that all wire connections are secure.

Dimming issues

Ensure you are using an ELV or LED compatible wall dimmer switch.

Before use

  • Shut off power at the fuse box or circuit breaker.
  • Ensure you have a compatible junction box.
  • Verify all parts are present (Mounting plate, screws, fixture body).
  • Ensure you have a screwdriver for installation and LED replacement.
Show more Show less

Images and diagrams

  • Fig 1: Shows the mounting plate attachment and fixture body securing process.
  • Fig 2: Illustrates the correct wiring connections for Hot, Neutral, and Ground wires.
  • Fig 3: Details the steps for removing and replacing the LED module.

Model compatibility

  • Compatible with ELV and LED dimmers.
