Installation Guide for Minka Lavery 2001/2002-77-L Bath Vanity Light
Step-by-step installation guide for the Minka Lavery 2001/2002-77-L bath vanity light, including wiring instructions, mounting procedures, and dimmer compatibility details.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Minka Lavery 2001/2002-77-L bath vanity light, including mounting, wiring, and assembly steps. p. 1
Key actions
- Mounting the fixture p. 1
- Connecting the wires p. 1
- Finishing installation p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dimmability | ELV/LED compatible | Works with specific wall dimmer switches | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for installing the Minka Lavery 2001/2002-77-L bath vanity light. The most critical safety step is to ensure the power is completely shut off at the fuse box or circuit breaker before beginning any work. The fixture is compatible with ELV and LED-compatible wall dimmer switches.
Mounting the fixture
- Shut off power at the fuse box or circuit breaker box and remove the old fixture.
- Unpack the new fixture and organize all parts.
- Loosen screws (D) to remove the mounting plate (A) from the fixture body (C).
- Attach the mounting plate (A) to the junction box using the provided mounting screws (B). Ensure the side of the mounting plate marked "GND" faces outward.
Connecting the wires
Follow the wiring diagram carefully to ensure all connections are secure:
- Black or Smooth fixture wire: Connect to the Black (Hot) house wire.
- White or Ribbed fixture wire: Connect to the White (Neutral) house wire.
- Green or Bare Copper fixture wire: Connect to the Green (Ground) house wire. If the junction box does not have a ground wire, connect the fixture's ground wire directly to the mounting plate (A) using the provided green screw.
- After connecting, tuck all wires carefully inside the junction box.
Finishing the installation
- Place the fixture body (C) over the mounting plate (A) and secure it using screws (D).
- Slide screws (E) through the plastic gaskets (F) and the glass shade (G), then secure them onto the heat sink (H).
- Once installed, restore power and test the fixture.
Practical help
Common problems
Fixture does not turn on
Verify that the power is turned on at the circuit breaker and that all wire connections are secure.
Before use
- Shut off power at the fuse box or circuit breaker
- Ensure the junction box is compatible
- Verify dimmer compatibility (ELV/LED)
- Ensure all parts (mounting plate, screws, gaskets, shade) are present
Show more Show less
Images and diagrams

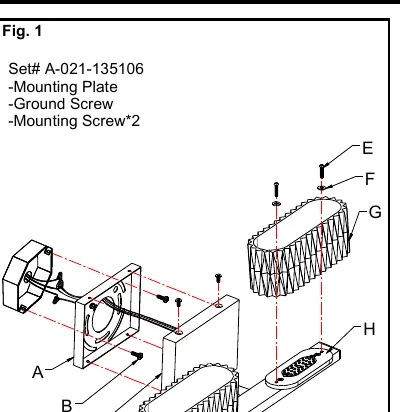

- Fig. 1 illustrates the mounting plate attachment and the assembly of the fixture body to the wall.
- Fig. 2 provides a wiring diagram showing the correct connection of hot, neutral, and ground wires.
Model compatibility
- Compatible with ELV and LED wall dimmer switches.
