Installation Guide for Minka Lavery 10315-855 Pendant Light

Step-by-step installation instructions for the Minka Lavery 10315-855 1-Light Pendant. Includes wiring diagrams, mounting procedures, and safety warnings for proper setup.

Quick answers from the manual

Quick answer

  • This document provides instructions for installing the Minka Lavery 10315-855 pendant light, including mounting the fixture, connecting electrical wires, and installing the light bulb. p. 1

Key actions

  • Mount the fixture to the junction box p. 1
  • Connect electrical wires p. 1
  • Install light bulb p. 1

First start

  • Shut off power at the circuit breaker p. 1
Show 2 more answers Show less

Technical specifications

Parameter Value Meaning Pages
Bulb Type Medium base Compatible bulb base type p. 1
Maximum Wattage 60 watts Maximum wattage per bulb p. 1

Where to find it in the PDF

  • Installation Instructions p. 1
Table of contents

Quick Installation Guide

This guide provides instructions for installing the Minka Lavery 10315-855 1-Light Pendant. For safety, ensure the power is completely shut off at the circuit breaker before beginning any work. It is recommended that the fixture be installed by a qualified electrician.

Installation Steps

  1. Preparation: Shut off power at the circuit breaker and remove the old fixture and mounting hardware.
  2. Assembly: Thread the decorative rods (H) into the fixture body (I).
  3. Mounting Plate: Secure the mounting plate (B) to the junction box (not included) using the provided mounting screws (C). Ensure the side of the mounting plate marked "GND" faces outward.
  4. Adjustment: Adjust the wire to the desired hanging length using the small screw located on the side of the wire grip (G) with the provided Allen wrench.
  5. Wiring: Connect the electrical wires as detailed in the wiring section.
  6. Canopy Attachment: Place the canopy (D) onto the mounting plate (B) and secure it using the mounting screws (F).
  7. Finalizing: Install one medium base bulb (J) up to 60 watts (or CFL/LED equivalent). Do not exceed the maximum wattage rating.

Wiring Instructions

Ensure all wire connectors are secure. Connect the fixture wires to the house supply wires as follows:

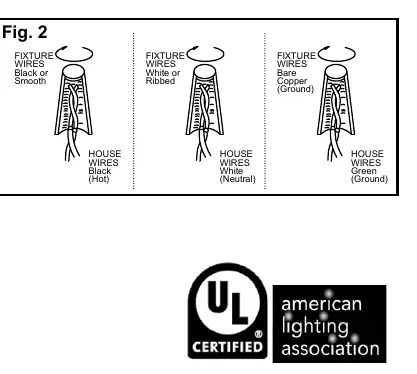

Wiring diagram (Fig 2)
Wiring diagram (Fig 2)
  • Black (Fixture) to Black (House/Hot)
  • White (Fixture) to White (House/Neutral)
  • Bare Copper (Fixture) to Green (House/Ground)

If your outlet does not have a ground wire, connect the fixture's ground wire directly to the mounting plate (B) using the provided green screw.

Practical help

Common problems

Fixture hanging length is incorrect

Use the small screw on the side of the wire grip (G) with the provided Allen wrench to adjust the wire length.

Mounting plate is not secure

Ensure the mounting plate (B) is attached to the junction box using the provided screws (C) and that the side marked 'GND' faces out.

Before use

  • Shut off power at the circuit breaker
  • Verify all parts are included (Mounting Plate, Ground Screw, Mounting Screws)
  • Ensure junction box is installed
  • Have a qualified electrician perform the installation
Show more Show less

Images and diagrams

  • Fig 1 shows the assembly order of the mounting plate, canopy, wire grip, and fixture body.
  • Fig 2 illustrates the correct wire connections: Black to Black (Hot), White to White (Neutral), and Bare Copper to Green (Ground).
