User Manual for NJOY 20C06 Floor Fan
Quick guide for the NJOY 20C06 floor fan. Includes assembly instructions, safety warnings, operating controls, and maintenance tips.
Quick answers from the manual
Quick answer
- The NJOY 20C06 is a floor fan with three speed settings. It requires assembly before use and must be placed on a stable, level surface. p. 4, 5
Key actions
- Assemble the base p. 4
- Operate the fan p. 5
First start
- Ensure the fan is fully assembled and placed on a flat surface before plugging it into an earthed socket. p. 4, 5
Problems and fixes
Fan does not work
Check power connection and ensure the unit is fully assembled.
p. 4, 5Maintenance and reset
- Unplug the power cord, use a damp cloth to remove dirt, and do not use aggressive cleaning agents. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 60W | Power consumption | p. 1 |
| Voltage | 220-220V ~50Hz | Operating voltage | p. 1 |
Where to find it in the PDF
- Assembly p. 4
- Operation p. 5
Table of contents
Quick guide from the manual
This manual provides instructions for the NJOY 20C06 floor fan. Before use, ensure the fan is fully assembled and placed on a stable, level surface. Never operate the fan if it is disassembled or if the grilles are not correctly in place.
Safety instructions
- Connect to an earthed socket with the correct voltage.
- For domestic use only; not for outdoor or commercial use.
- Do not immerse in water or spray liquids on the fan.
- Keep out of reach of children.
- Do not place near open windows, heat sources, or in damp rooms.
- Always unplug when moving, cleaning, or not in use.
Assembly instructions
- Remove packaging from the control box.
- Combine the two base tubes (3) with a screw (5) to form the stand.
- Place spacers on the mounting screws on the fan body.
- Insert the base tube onto the mounting screws.
- Tighten the outer nuts to the fan base.
Note: Ensure cables are outside the base during installation.
Operating instructions
The fan features the following control settings:
- 0: Off
- 1: Quiet soft breeze
- 2: Normal speed
- 3: Maximum speed
Maintenance and cleaning
Always unplug the power cord before cleaning. Use a damp cloth to remove dirt. Do not use aggressive cleaning agents. Ensure the fan is fully reassembled before plugging it back in.
Practical help
Common problems
Fan does not work
Check if the plug is connected and the fan is fully assembled.
Fan is disassembled
Never plug in the fan while disassembled; reassemble according to instructions.
Before use
- Ensure the fan is placed on a solid, level surface.
- Check that the power cord and plug are undamaged.
- Ensure the fan grilles are correctly in place.
- Verify the voltage matches the device specifications.
Images and diagrams

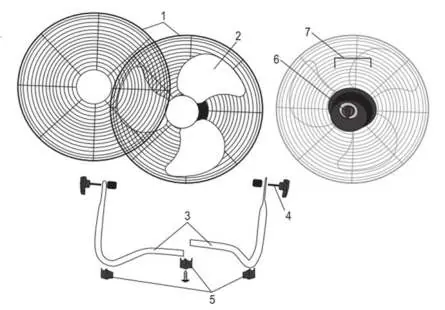

- The diagram shows the fan components including the grille (1), blades (2), base tubes (3), knobs (4), and screws (5).
Model compatibility
- Domestic use only.
- Not suitable for outdoor, commercial, or industrial use.
