User Manual for Lasko 2002W and 2004W Personal Fans
Comprehensive user guide for the Lasko 2002W Personal Fan and 2004W Clip Fan. Includes assembly instructions, operation, maintenance, safety warnings, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Lasko 2002W and 2004W are personal fans with 2-speed controls. The 2002W is a table fan, and the 2004W is a clip fan. They are for residential use only and require a 120V AC power source. p. 1
Key actions
- Assemble the fan by inserting the Fan Head Assembly into the Stand (2002W) or Clip (2004W). p. 2, 3
- Adjust the tilt angle by loosening the knob under the Fan Head. p. 2, 3
First start
- Plug the fan into a 120V AC outlet and turn the speed knob to 1 or 2. p. 2, 3
Problems and fixes
Fan fails to operate
Ensure the power cord is plugged into a working electrical outlet.
p. 1, 4Maintenance and reset
- Clean the fan using a vacuum with a brush attachment. Do not use harsh chemicals. p. 1, 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Source | 120V AC | Standard residential power requirement. | p. 2, 3 |
Where to find it in the PDF
- Safety and Maintenance p. 1, 4
- Assembly and Operation p. 2, 3
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Lasko 2002W and 2004W are personal fans designed for residential use. The 2002W is a table fan, while the 2004W is a clip fan. Both models feature a 2-speed control knob. Ensure the fan is placed on a stable, flat surface and connected to a 120V AC power source.
Important Safety Instructions
To reduce the risk of fire, electrical shock, and injury, follow these precautions:
- Always unplug the power cord before moving, servicing, or cleaning the fan.
- Never use the fan near water, bathtubs, pools, or hot tubs.
- Do not use extension cords, power strips, or outlet-style air fresheners.
- Do not block or obstruct airflow while the fan is in operation.
- Never insert fingers or objects into the grill openings.
- This fan is for residential use only; it is not intended for commercial, industrial, or agricultural settings.
- The fan features a polarized plug designed to fit into an outlet only one way. Do not attempt to bypass this safety feature.

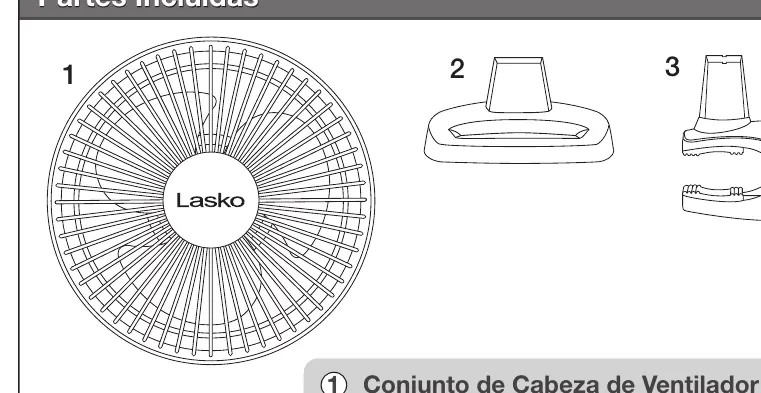

Parts Included
- Fan Head Assembly (2002W/2004W)
- Stand (2002W)
- Clip (2004W)

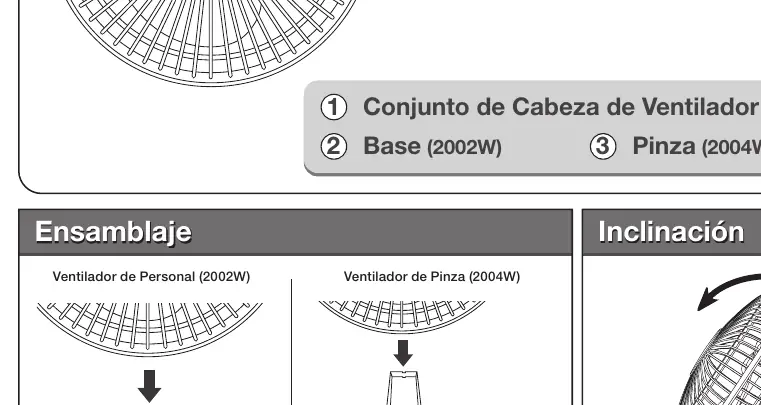

Assembly
For 2002W Personal Fan: Insert the Fan Head Assembly into the top of the Stand until it is fully seated.
For 2004W Clip Fan: Insert the Fan Head Assembly into the top of the Clip until it is fully seated.
Operation and Controls
Use the Fan Speed Knob to adjust the airflow:
- 2: High Speed
- 1: Low Speed
- 0: OFF
To adjust the tilt angle, loosen the knob located under the Fan Head, tilt the head to the desired position, and retighten the knob.

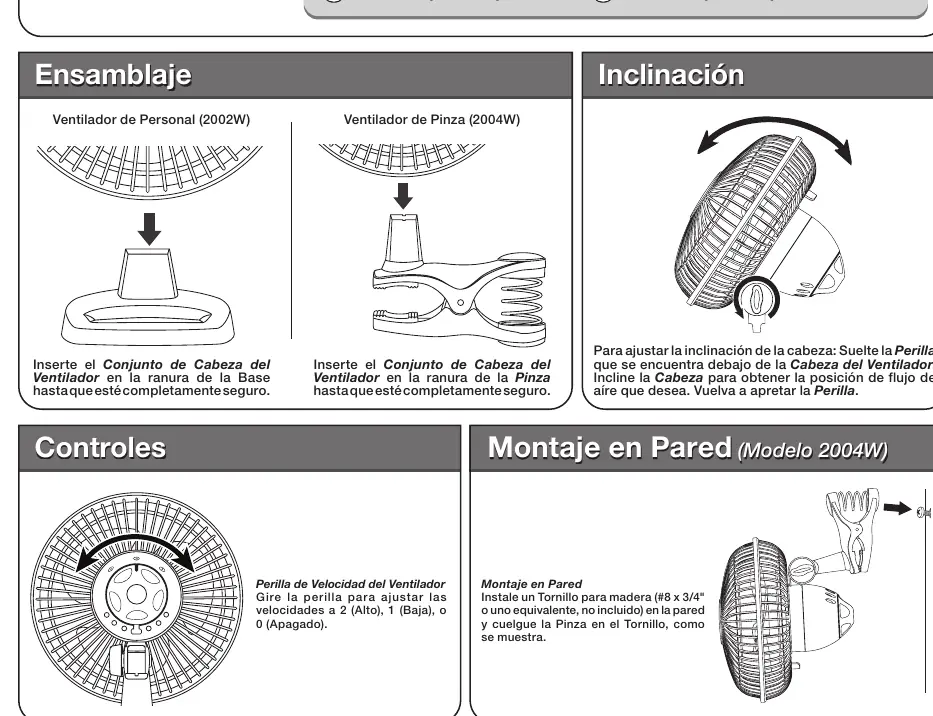

Wall Mounting (2004W Only)
To mount the 2004W Clip Fan on a wall, install a #8 x 3/4" wood screw (or equivalent, not supplied) into the wall and hang the clip on the screw.
Maintenance and Cleaning
- Cleaning: Clean the fan body only with a soft cloth. Use a vacuum equipped with a brush attachment to remove lint and dirt from inside the fan.
- Lubrication: The motor is permanently lubricated and requires no additional maintenance.
- Storage: Store the fan in its original carton in a cool, dry place.
- Prohibited Cleaners: Never use alcohol, gasoline, benzene, paint thinner, or other harsh cleaners.
Troubleshooting
If the fan fails to operate, ensure the power cord is plugged into a working electrical outlet. If the problem persists, contact Lasko Customer Service at (800) 233-0268.
Practical help
Common problems
Fan fails to operate
Ensure the power cord is plugged into a working electrical outlet.
Before use
- Ensure the power source is 120V AC.
- Check that the plug fits tightly into the outlet.
- Do not use extension cords or power strips.
- Place the fan on a stable, flat, level surface.
- Ensure the fan is not near water or wet locations.
Specs in practice
- Polarized Plug
- Safety feature where one blade is wider than the other; must be inserted fully into the outlet.
Images and diagrams
- Assembly: Insert the Fan Head Assembly into the Stand or Clip until fully seated.
- Tilt Adjustment: Loosen the knob under the Fan Head to adjust the angle, then retighten.
- Wall Mounting (2004W): Hang the clip on a #8 x 3/4" wood screw installed in the wall.
Model compatibility
- Not for use in agricultural facilities (NEC Article 547-7).
- Not for use in hazardous locations (NEC Article 500).
- Residential use only.
