User Manual for Pedrollo MC-F Flanged Submersible Pump
Quick guide for the Pedrollo MC-F series flanged submersible pumps. Includes installation, technical specifications, application limits, and maintenance requirements for sewage and wastewater systems.
Table of contents
Manual images
Click an image to enlargeQuick Guide

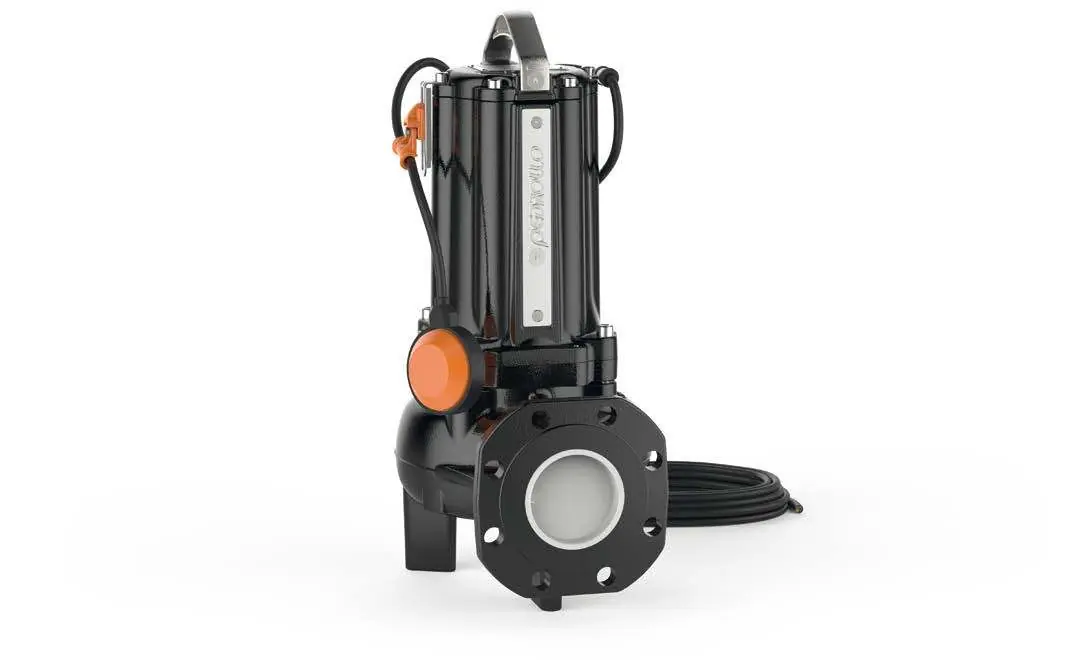

The Pedrollo MC-F series is designed for professional use in draining sewage, wastewater, sludge-mixed water, groundwater, and surface water. These pumps feature a robust cast iron construction and a two-channel impeller system. Important: For three-phase models, the warranty is valid only if the motor's built-in thermal protector is properly connected to the control panel.
Product Description
The MC-F series pumps are constructed from thick cast iron, offering exceptional abrasion resistance and longevity. The two-channel impeller allows for the transfer of suspended solids up to 50 mm or 65 mm, depending on the model. The pump includes a 10-meter power cable. Single-phase models come with a float switch and a compatible switchbox.
Applications
These pumps are suitable for various settings, including:
- Apartment buildings
- Public facilities
- Industrial sites
- Parking facilities
- Washing areas
Installation
The pump can be installed using a coupling foot kit for easier maintenance and removal. When using guide tubes for installation, ensure the following:
- For 3/4" guide pipes, a support must be interposed every 2 meters.
- For 2" guide tubes, a support is recommended every 3 meters.
Ensure the pump is installed at a depth below the water level not exceeding 10 meters, using an appropriately sized power cable.
Electrical Connections
The series is available in single-phase (230 V) and three-phase (400 V) versions. Single-phase models include a switchboard with a capacitor and manual reset motor protection. Three-phase models require an external control panel (such as the QES panel) to connect the thermal motor protection.
Technical Data
The pumps are rated for liquid temperatures up to +40 °C. Minimum immersion depth for continuous service is 320 mm for MC/50 models and 360 mm for MC/65 models. The motor features Class F insulation and an IP X8 protection rating.
Maintenance
The pump utilizes a double mechanical seal system with an interposed oil chamber. The motor side seal (STA-22) uses Ceramic/Graphite/NBR, while the pump side seal (STA-20) uses Silicon carbide/Silicon carbide/NBR.
Practical help
Common problems
Warranty void on three-phase models
Ensure the motor's built-in thermal protector is properly connected to the control panel.
Pump instability in deep installations
Install intermediate guide tube supports every 2 meters for 3/4" pipes or every 3 meters for 2" tubes.
Solids clogging the pump
Verify that the suspended solids do not exceed the maximum diameter for the specific model (50 mm for /50-F, 65 mm for /65-F).
Before use
- Verify the power supply voltage matches the pump specifications (230V single-phase or 400V three-phase).
- Ensure the thermal protection is connected for three-phase models.
- Check that the liquid temperature does not exceed +40 °C.
- Confirm the installation depth is within the 10-meter limit.
- Ensure the minimum immersion depth (320mm or 360mm) is maintained for continuous service.
Specs in practice
- Two-channel impeller
- Design feature allowing the passage of suspended solids and short fibers without clogging.
- Cataphoresis treatment
- A protective coating applied to the cast iron body to enhance corrosion and abrasion resistance.
Images and diagrams
- The manual provides detailed dimensional drawings for both horizontal and vertical delivery configurations.
- Wiring diagrams and component breakdowns are provided to assist in installation and maintenance.
Model compatibility
- Float switch is exclusive to single-phase models.
- Switchbox is included with single-phase versions.
- Coupling foot kit and QES control panel are available upon request.
