User Manual for Princess Auto 12 x 20 ft 2-Section Shelter
Quick guide for the Princess Auto 12 x 20 ft 2-Section Shelter (Model 9161787). Includes specifications, parts list, and assembly overview.
Quick answers from the manual
Quick answer
- The Princess Auto 12 x 20 ft 2-Section Shelter is a tool-free assembly shelter featuring a galvanized steel frame and UV-resistant polyethylene tarpaulin. p. 2
Key actions
- Verify all parts against the parts list before assembly. p. 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Overall Dimensions | 12 x 20 x 9 ft | External size of the shelter | p. 2 |
| Coverage Area | 200 sq. ft | Total footprint of the shelter | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Parts Breakdown p. 3
- Parts List p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Princess Auto 12 x 20 ft 2-Section Shelter is a versatile outdoor structure suitable for use as a picnic tent, patio covering, or storage for vehicles, boats, and RVs. The assembly process is designed to be tool-free, utilizing a galvanized steel frame and a protective polyethylene tarpaulin. Ensure all parts are accounted for before beginning assembly.
Introduction
This shelter provides protection against UV rays, rain, and snow. It features a durable infrastructure that resists rust and corrosion, making it suitable for various outdoor applications.
Specifications
The shelter covers an area of 200 sq. ft with a volume capacity of 2,000 cu. ft. The overall dimensions are 12 x 20 x 9 ft, while the inner dimensions at the peak are 10 x 20 x 9 ft. The frame is constructed from galvanized steel pipes, and the cover is made of polyethylene tarpaulin with a UV-resistant grey coating.
Parts Breakdown
The frame assembly consists of various pipes and fittings. Refer to the parts diagram to identify the correct placement of pipes 1A, 1B, 2, 3, and the fittings (tees and crosses).
Parts List
Ensure all components are present before beginning assembly:
- Pipe 78 in. (1A): 6
- Pipe 44 in. (1B): 6
- Pipe 78 in. (2): 6
- Pipe 68 in. (3): 6
- Tarp 12 x 20 ft: 1
- Ball bungee 8-1/2 in.: 40
- Four-way fitting: 3
- Three-way fitting: 6
- Foot pad: 6
Practical help
Common problems
Missing parts
Verify all components against the parts list on page 4 before starting assembly.
Before use
- Verify all parts against the parts list
- Ensure you have a clear, level area for assembly
- Check that all 40 ball bungees are included
- Confirm all 24 pipes and 15 fittings are present
Specs in practice
- Coverage Area
- 200 sq. ft
- Overall Dimensions
- 12 x 20 x 9 ft
Images and diagrams

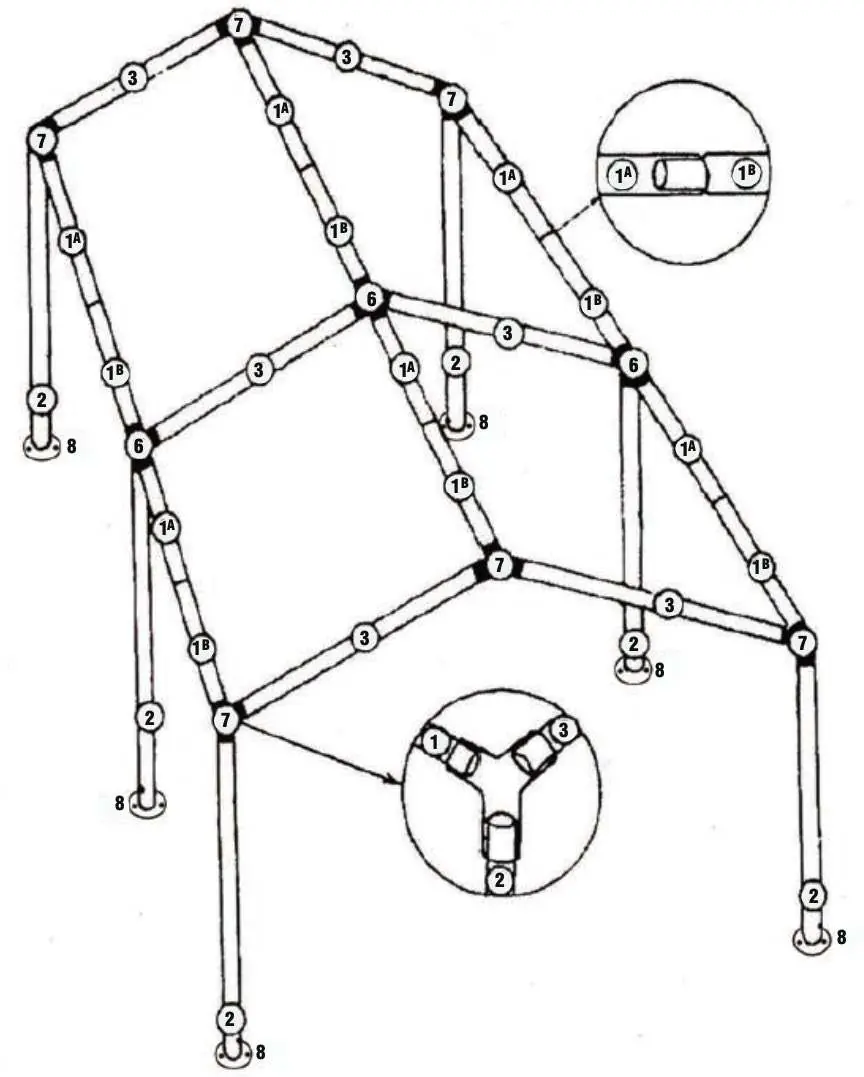

- The parts breakdown diagram illustrates the connection points for pipes 1A, 1B, 2, 3 and fittings 6 and 7.
