User Manual for Ridgid 18V Cordless Brushless Blower R01601

Quick guide from the manual

This manual provides essential instructions for the safe and efficient operation of the Ridgid 18V Cordless Brushless Blower (R01601). Key tasks include assembling the blower tube, installing the battery pack, and utilizing the variable speed, turbo boost, and cruise control features. Always prioritize safety by wearing appropriate protective equipment and keeping bystanders at a safe distance.

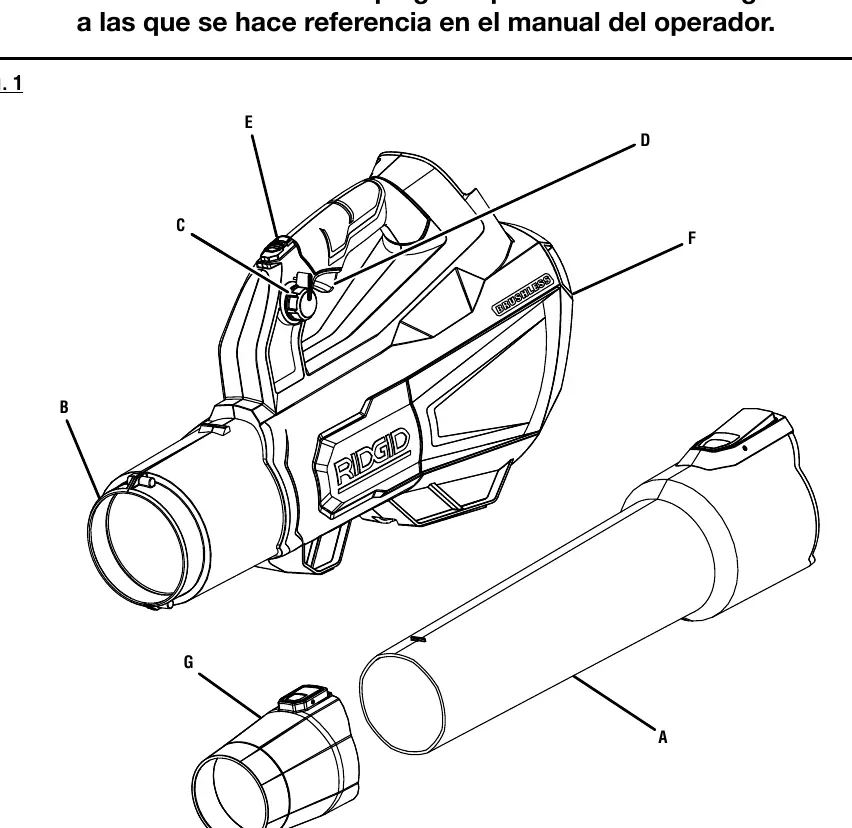

Product Description

The Ridgid 18V Cordless Brushless Blower is a high-performance tool designed for clearing leaves and debris from lawns, decks, and driveways. It features an ergonomic overmold handle, a speed tip for increased air velocity, and a variable speed trigger for precise control.

Assembly

The blower requires minimal assembly before use:

• Unpacking: Carefully remove the blower and accessories from the box. Ensure all items listed in the packing list are present.

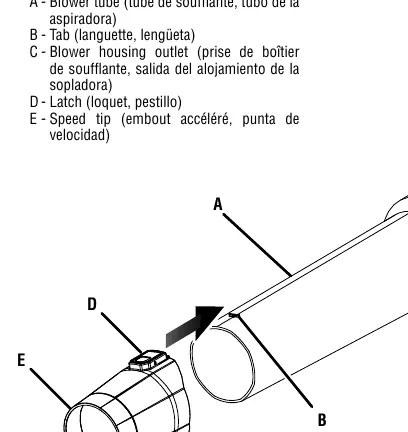

• Installing the Blower Tube: Place the blower tube on the housing outlet and press until the latch locks onto the tab. Pull on the tube to ensure it is secure.
• Installing the Speed Tip: Align the latch on the speed tip with the tab on the blower tube and press until it locks into place.

Operation

Follow these steps for proper operation:

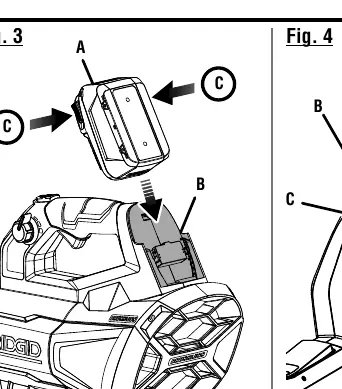

• Battery Installation: Insert the battery pack into the tool until the latches snap into place. Ensure it is fully seated.
• Starting/Stopping: Depress the switch trigger to start the blower and release it to stop.
• Turbo Boost: While the trigger is depressed, press the turbo boost button to temporarily increase airflow to maximum velocity.
• Cruise Control: Depress the trigger to the desired speed, push the cruise control lever down, and release the trigger. To release, pull the lever all the way up.

Maintenance

Regular maintenance ensures the longevity of your tool:

• Cleaning: Keep the blower and handle dry, clean, and free from oil and grease. Use a clean cloth for cleaning. Never use solvents or water to clean the unit.
• Storage: Store the blower indoors in a dry, secure place, out of the reach of children. Do not hang the unit by the switch trigger.
• Inspection: Periodically inspect the product for damaged, missing, or loose parts.

Safety

Always wear safety glasses with side shields and hearing protection. Keep bystanders, children, and pets at least 50 ft. away. Do not operate the blower in explosive atmospheres or near fires. Remove the battery pack before performing any maintenance or cleaning.
