User Manual for Robus Cosmic 125W/170W LED Flood Light
Quick guide for the Robus Cosmic 125W/170W LED Flood Light. Includes installation steps, wiring instructions, technical specifications, and safety guidelines.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Robus Cosmic LED Flood Light is a high-performance lighting fixture designed for outdoor use. Before beginning installation, ensure the mains supply is switched off. This product is non-dimmable and contains no user-serviceable parts. If any part is damaged, disconnect from the mains and discontinue use immediately.
Installation
- Select a suitable location for the luminaire.
- Mark the wall with appropriate fixing positions. Before drilling, ensure that the hole does not impinge on pipe work, cables, or other building services.
- Attach the luminaire and fix the bracket by tightening the screws.
- Adjust the luminaire to the desired angle and ensure it is secure.
Wiring
The luminaire is supplied with a 1m rubber cable. Use a suitable IP-rated enclosure to terminate the connection to the mains supply:
- Brown: Live
- Blue: Neutral
- Green/Yellow: Earth
Technical Specifications
- Voltage: 220-240V ~ 50/60Hz
- Operating Temperature: -20°C to +40°C
- Protection Class: Class I
- Ingress Protection: IP65
- Dimmable: No
Safety and Disposal
This equipment may contain substances hazardous to health and the environment if disposed of carelessly. The product must be disposed of separately from household waste in accordance with local WEEE regulations. Look for the crossed-out wheelie bin symbol on the product, which indicates it must not be disposed of in normal household waste.
Practical help
Common problems
Light does not turn on
Ensure the mains supply is switched on and the wiring connections (Live, Neutral, Earth) are secure and correct.
Damaged component
Disconnect the luminaire from the mains immediately and discontinue use. There are no user-serviceable parts inside.
Before use
- Ensure mains supply is switched off before starting work
- Select a suitable mounting location
- Check for hidden pipes or cables before drilling
- Use an IP-rated enclosure for wiring connections
- Verify the luminaire is securely attached to the bracket
Specs in practice
- Non-dimmable
- Do not connect this light to a dimmer switch as it may cause damage.
Images and diagrams

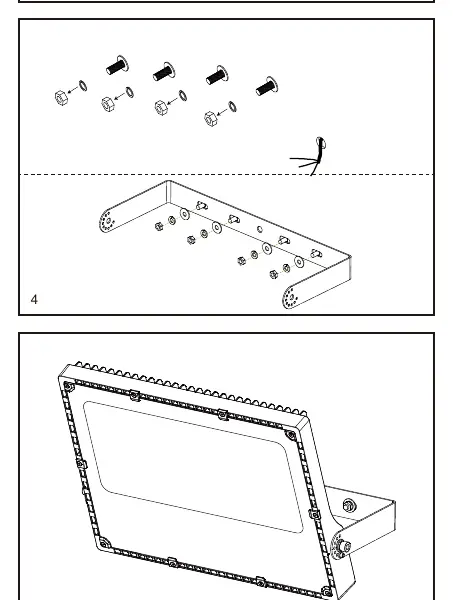

- The installation diagrams illustrate the bracket mounting process and the correct wiring sequence for the power cable.
Model compatibility
- Not compatible with dimmer switches.
- Requires an IP-rated enclosure for external wiring connections.
