Installation Guide for Rockville MS525 Marine Speakers
Step-by-step installation and wiring guide for Rockville MS525 5.25-inch 2-way marine speakers. Includes mounting instructions, amplifier configuration, and tips to prevent speaker damage.
Quick answers from the manual
Quick answer
- The Rockville MS525 is a 5.25-inch 2-way marine speaker. Installation involves cutting a hole using the provided template, securing the speaker, and wiring it to an amplifier with correct polarity. p. 1
Key actions
- Install the speaker p. 1
- Configure amplifier gain p. 1
Problems and fixes
Speaker clipping/distortion
Lower the amplifier gain until the clipping stops.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Speaker Size | 5.25" | Diameter of the speaker | p. 1 |
Where to find it in the PDF
- Installation and Configuration p. 1
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Rockville MS525 is a 5.25-inch 2-way marine speaker. This guide provides the necessary steps for physical installation and proper electrical configuration with an amplifier to prevent damage.
Installation Steps
- Determine location: Choose the mounting location for the speakers.
- Mark the cutout: Use the provided template to mark the required 5.25-inch diameter hole.
- Cut the hole: Carefully cut the marked area.
- Prepare for mounting: Ensure the area is clear and ready for the speaker.
- Mount speaker: Insert the speaker into the cutout and secure it using the provided screws.
Speaker Configuration
When connecting the speakers to an amplifier, ensure the positive (+) and negative (-) speaker wires are connected to the corresponding terminals on the amplifier. Follow the wiring diagram provided in the manual to ensure correct polarity.
Important Warnings
Most speaker damage is caused by amplifiers with too much power (wattage). To properly set your gain:
- Turn your receiver volume to 75% of the maximum.
- Slowly turn up your amplifier gain.
- The moment you hear any slight distortion, turn the gain down one notch and leave it at that setting.
- Amps are not meant to be played with the gain set to the maximum. If you hear distortion, lower the gain until the amplifier stops clipping.
Technical Support
If you need assistance, contact the Rockville technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
Manufacturer information
Rockville
Practical help
Common problems
Speaker damage/distortion
Caused by excessive power. Set receiver volume to 75% max, then adjust amplifier gain until slight distortion is heard, then back off one notch.
Before use
- Determine the installation location
- Use the template to mark the cutout area
- Cut the mounting hole
- Verify positive (+) and negative (-) wire connections to the amplifier
Images and diagrams

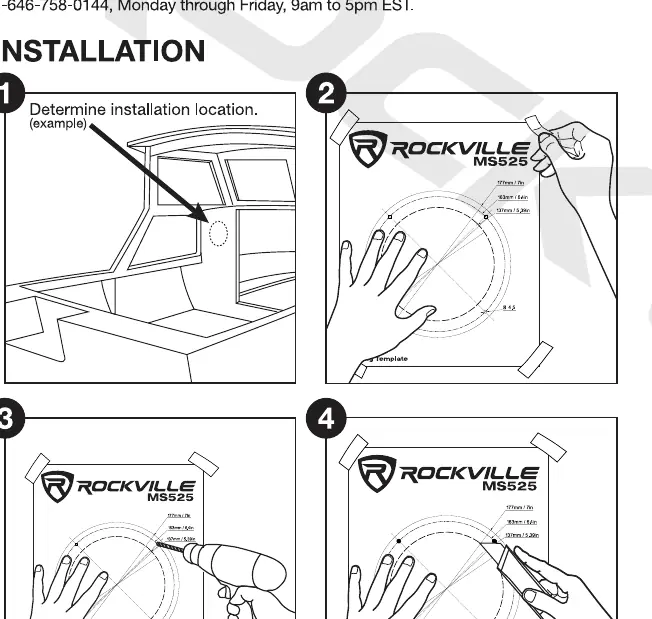

- Steps 1-4: Visual guide for marking and cutting the mounting hole
- Step 5: Visual guide for securing the speaker into the mounting surface
- Wiring Diagram: Shows correct connection of positive and negative wires to amplifier terminals
Model compatibility
- Designed for marine applications
- Requires an amplifier for proper configuration
