User Manual for Ronix 2210C 13mm Impact Drill
Quick guide for the Ronix 2210C 13mm Impact Drill. Learn how to operate, adjust the depth stop, insert drill bits, and maintain your power tool safely.
Quick answers from the manual
Quick answer
- The Ronix 2210C is an 810W, 13mm impact drill featuring variable speed control, a hammer/rotary selector, and a depth stop guide. It is designed for private use and requires manual chuck tightening. p. 10
Key actions
- Inserting the second handle p. 14
- Inserting a drill bit p. 15
First start
- Ensure mains voltage matches the tool, insert the drill bit, and adjust the handle/depth stop before starting. p. 16
Show 4 more answers Show less
Problems and fixes
Overheating
Run the tool without load for two minutes and take a break.
p. 17Maintenance and reset
- Clean the machine with a clean cloth and a brush; ensure ventilation slits are not blocked. p. 17
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input power | 810W | Power consumption | p. 10 |
| No load speed | 0-3000 RPM | Rotational speed | p. 10 |
Where to find it in the PDF
- Specifications and Parts p. 10
- Operation Instructions p. 14, 15, 16
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ronix 2210C is a 13mm impact drill intended for private use. Before operating, ensure the mains voltage matches the machine's rating. Always disconnect the power supply before making any adjustments, such as changing drill bits or attaching the handle. The tool features variable speed control, a hammer/rotary selector, and a locking button for continuous operation.

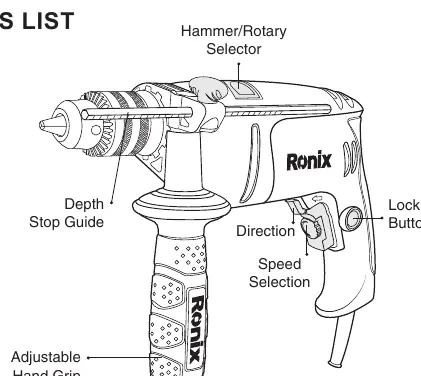

Parts of the drill
- Hammer/Rotary Selector: Switches between drilling and impact drilling modes.
- Direction Switch: Controls the rotation direction (forward/reverse).
- Speed Selection: Regulator wheel for controlling drill speed.
- Lock Button: Enables continuous operation.
- Adjustable Hand Grip: Provides a secondary handle for stability.
- Depth Stop Guide: Allows for precise drilling depth.
Operation and use

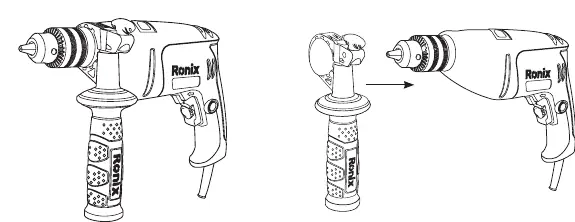

Inserting the second handle: Rotate the lower part of the handle anti-clockwise to loosen it. Slide the handle over the drill chuck onto the flange. Rotate to the desired position and tighten by turning the lower part clockwise.
Adjusting the depth stop guide: Insert the drill bit. Release the handle, push the bit stop forward until it aligns with the drill bit tip, then adjust the depth stop guide to the desired drilling depth.

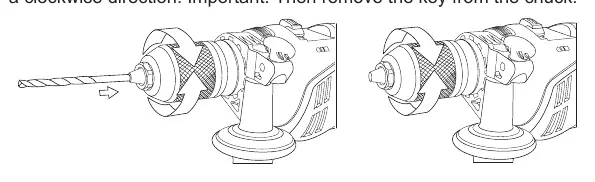

Inserting the drill bit: Ensure the tool is unplugged. Open the chuck jaws by rotating the ring. Insert the drill bit. Use the chuck key in the holes on the chuck body to tighten the jaws securely. Important: Always remove the chuck key after tightening.
Working with the machine
The operating switch controls the speed; pressing it further increases rotation speed. Use the direction switch to set the rotation. Never change the direction or the hammer/rotary mode while the machine is running. For masonry, set the selector to impact drilling. For wood or metal, set it to standard drilling.
Care and maintenance
Avoid excessive force during drilling, as this can overload the motor. If the machine becomes too hot, run it without load for two minutes and take a break. Keep the ventilation slits clean and free of debris. Clean the tool with a dry cloth and a brush.
Safety instructions
Always wear appropriate safety gear, including eye protection, dust masks, and hearing protection. Keep the work area clean and well-lit. Do not operate the tool in explosive atmospheres or near flammable liquids. The machine is double-insulated for protection against electric shock.
Manufacturer information
Ronix Tools
Practical help
Common problems
Machine overheating
Run the machine without load for two minutes and interrupt work for a short time.
Drill bit stuck
Use the direction switch to reverse the rotation and carefully remove the bit.
Before use
- Check that the mains voltage matches the machine's operating voltage.
- Ensure the switch is in the 'off' position before plugging in.
- Wear eye protection and appropriate safety gear.
- Ensure the work area is clean and well-lit.
- Verify the drill bit is securely tightened in the chuck.
Show more Show less
Specs in practice
- No load speed
- 0-3000 RPM, adjustable via the regulator wheel.
Images and diagrams
- Hammer/Rotary Selector: Located on top, switches between drilling and impact modes.
- Direction Switch: Located near the trigger, controls rotation direction.
- Lock Button: Located on the side of the handle, locks the trigger for continuous use.
Model compatibility
- Designed for private use only; not suitable for commercial applications.
- Compatible with standard drill bits up to 13mm.
