Installation Manual for RZB Lighting LINEDO LED Luminaire 952390.832.776.703
Comprehensive installation and safety guide for the RZB Lighting LINEDO LED luminaire (model 952390.832.776.703). Includes detailed mounting instructions, technical specifications, and safety precautions.
PDF source: Deutsch · summary: English
Quick answers from the manual
Quick answer
- The RZB LINEDO LED luminaire (952390.832.776.703) is a professional lighting fixture requiring professional installation. It is rated IP54 and IK03, suitable for ambient temperatures between -25°C and +45°C. The light source is not user-replaceable. p. 1, 2, 3
Key actions
- Mounting the luminaire p. 8, 9, 10, 11
- Replacing the light source p. 3, 13
Problems and fixes
Damaged luminaire
Do not operate; replace immediately.
p. 2
Cracked protective shield
Replace the shield immediately.
p. 3Maintenance and reset
- Light source replacement must be performed by a qualified professional. p. 3, 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 220-240 V | Operating voltage | p. 1 |
| IP Rating | IP 54 | Ingress protection | p. 1 |
| IK Rating | IK 03 | Impact protection | p. 1 |
| Weight | 4.54 kg | Product weight | p. 1 |
| Ambient Temperature | -25°C to +45°C | Operating temperature range | p. 1 |
Where to find it in the PDF
- Technical Specifications p. 1
- Safety Information p. 2, 3
- Installation Instructions p. 4, 5, 6, 8
- Declaration of Conformity p. 7
Table of contents
Manual images
Click an image to enlargeQuick Guide
The RZB Lighting LINEDO LED luminaire is a professional lighting fixture designed for pendant or ceiling mounting. This manual covers the installation, electrical connection, and safety requirements for model 952390.832.776.703. Ensure all installation work is performed by qualified personnel in accordance with local regulations.
Safety Information
- Electrical Connection: Must comply with all applicable national and international safety and accident prevention regulations.
- Damaged Luminaires: Do not operate if the luminaire is damaged.
- Ambient Temperature: The luminaire is rated for an ambient temperature range of -25°C to +45°C. Exceeding this range may reduce the product's lifespan.
- Modifications: Any unauthorized modification, reworking, or re-labeling of the product or its packaging is strictly prohibited and voids liability.
- ESD Precautions: Avoid ESD problems by not routing feed-through wiring directly along the luminaire wiring.
Installation
The LINEDO system supports various mounting configurations, including pendant and ceiling mounting, with options for feed-in from the middle, top, or side. Ensure the ceiling and fastening elements are stable enough to support the weight of the luminaire (4.54 kg).
Mounting Steps
- Prepare the mounting surface and ensure the ceiling can support the weight.
- Install the mounting brackets according to the specific configuration (pendant or ceiling).
- Route the wiring as required by the specific feed-in method (middle, top, or side).
- Connect the luminaire to the power supply (220-240V).
- Secure the luminaire to the mounting brackets.
- Ensure all connections are tight and the protective shield is intact.
Technical Specifications
- Voltage: 220-240 V, 0/50/60 Hz
- IP Rating: IP 54 (Protected against dust and splashing water)
- IK Rating: IK 03 (Protection against mechanical impact)
- Weight: 4.54 kg
- Dimensions: L 2291 mm, B 58 mm, H 76 mm
- Light Source: LED, 3900 lm, 29 W
- Color Temperature: 3000 K
- CRI: 80
- Power Factor (cos φ): 0.99
Maintenance and Disposal
The light source contained in this luminaire must only be replaced by the manufacturer, a service agent, or a similarly qualified person. If the protective shield is cracked, it must be replaced immediately according to DIN EN 60598. At the end of its service life, dispose of the luminaire and its components according to local environmental regulations.
Practical help
Common problems
Luminaire is damaged
Do not operate the luminaire. Contact a qualified service technician for repair or replacement.
Light source failure
The light source is not user-replaceable. It must be replaced by the manufacturer or an authorized service agent.
Cracked protective shield
The protective shield must be replaced immediately to maintain safety standards (DIN EN 60598).
Before use
- Verify the ceiling structure can support the 4.54 kg weight.
- Ensure the power supply is 220-240V, 50/60Hz.
- Check that the ambient temperature is between -25°C and +45°C.
- Confirm the IP54 rating is suitable for the installation environment.
- Ensure all necessary mounting hardware is available.
Images and diagrams

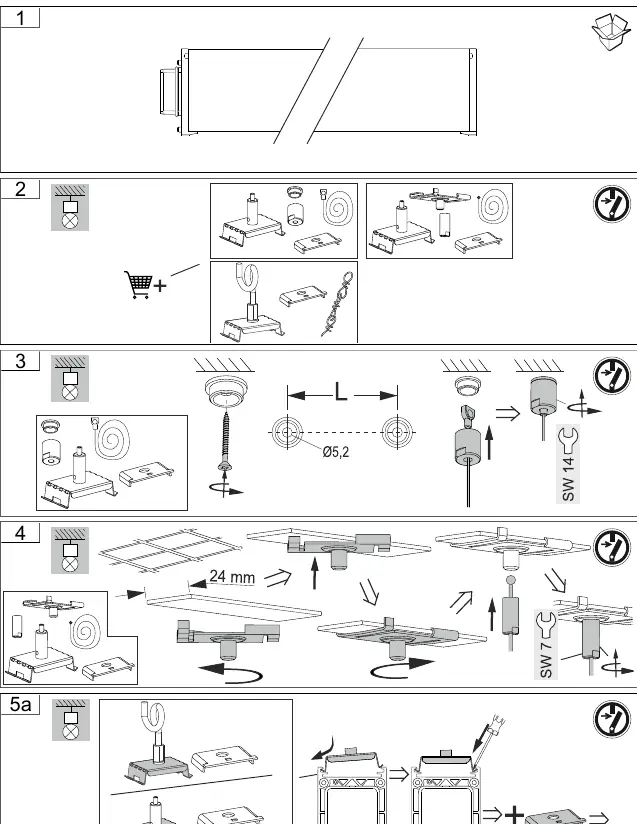

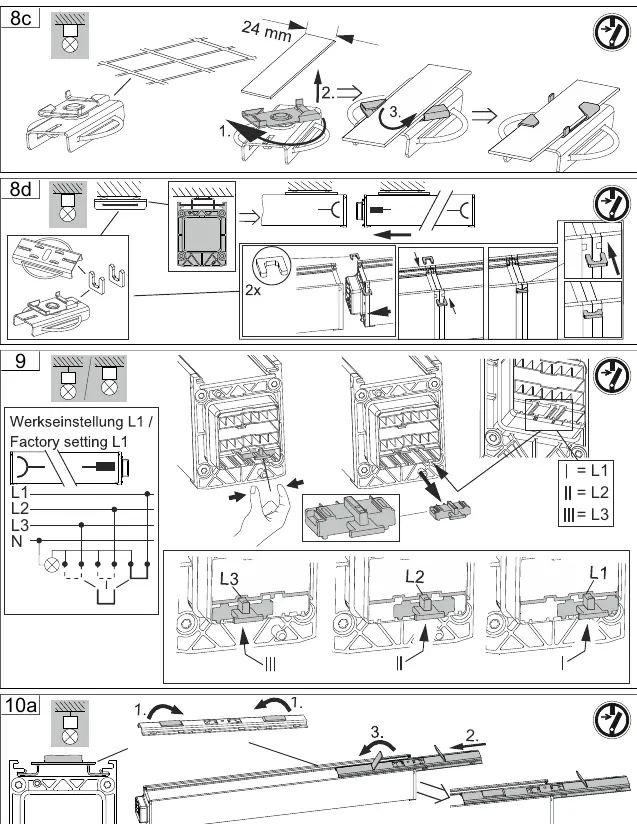

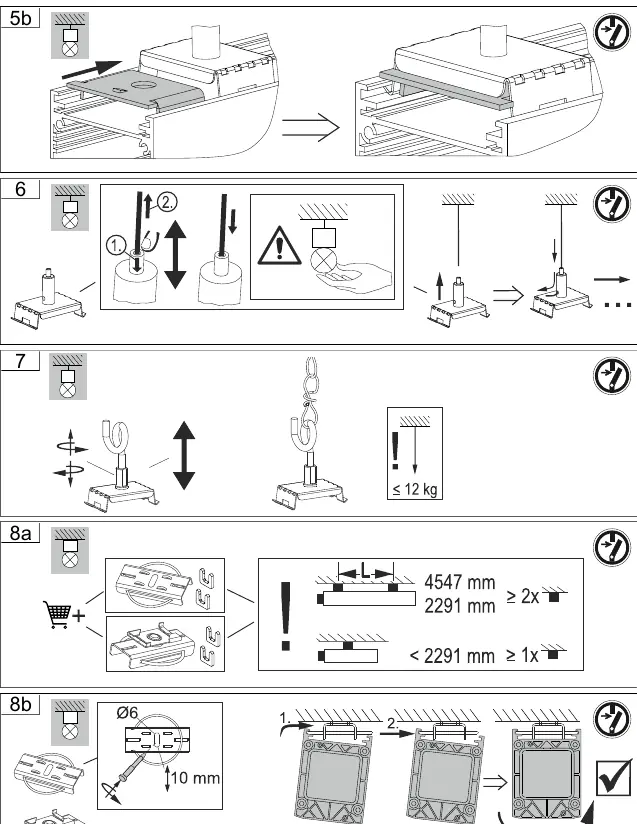

- The manual provides detailed diagrams for various mounting configurations (pendant vs. ceiling) and wiring methods (middle, top, side feed).
- Specific diagrams illustrate the installation of L, X, and T connectors for modular setups.
Model compatibility
- The light source is non-user replaceable.
- Only use genuine parts for repairs.
- Compatible with standard cables suitable for power supply voltage for dimmable control inputs.
