Owner's Manual for Samsung 990 EVO SSD
Quick guide for the Samsung 990 EVO SSD. Learn about key features, technical specifications, performance metrics, and software optimization tools.
Quick answers from the manual
Quick answer
- The Samsung 990 EVO is a high-performance NVMe SSD available in 1TB and 2TB capacities, featuring PCIe 4.0/5.0 compatibility, advanced thermal control, and support for Samsung Magician software. p. 1, 2
Key actions
- Monitor drive health and receive updates using Samsung Magician software. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Sequential Read/Write | Up to 5,000/4,200 MB/s | Maximum data transfer speeds. | p. 1, 2 |
| Form Factor | M.2 (2280) | Physical dimensions of the drive. | p. 2 |
| Encryption | Class 0 (AES 256), TCG/Opal v2.0, MS eDrive | Data security standards supported. | p. 2 |
Where to find it in the PDF
- Product Features and Performance p. 1
- Technical Specifications p. 2
Table of contents
Quick Guide
The Samsung 990 EVO is a high-performance NVMe SSD designed for fast data transfer, power efficiency, and thermal management. It is compatible with PCIe 4.0 x4 and PCIe 5.0 x2 interfaces. This guide provides an overview of the drive's capabilities and technical specifications.
Key Features
- Rapid-Fire Speeds: Delivers read and write speeds of up to 5,000/4,200 MB/s, allowing for fast game loading and file saving.
- Power Efficiency: Offers improved performance per watt compared to the 970 EVO Plus.
- Smart Thermal Control: Features a fine-tuned controller and heat-spreading label to maintain performance and prevent overheating.
- Interface Compatibility: Optimized for PCIe 4.0 x4 and PCIe 5.0 x2 technology.
Software and Optimization
Users can utilize the Samsung Magician software to optimize the SSD. This toolkit allows you to monitor drive health, protect valuable data, and receive important firmware updates.
Technical Specifications
- Form Factor: M.2 (2280)
- Interface: PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
- Capacity Options: 1TB and 2TB
- NAND Type: TLC (revised V6)
- Data Encryption: Class 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)
- Endurance: 600 TBW (1TB model) / 1,200 TBW (2TB model)
Warranty Information
The Samsung 990 EVO comes with a limited 5-year warranty.
Manufacturer information
Samsung Electronics
Practical help
Before use
- Verify that your system motherboard supports PCIe 4.0 or PCIe 5.0 interfaces.
- Ensure your system has an available M.2 (2280) slot.
- Download and install Samsung Magician software to monitor drive health and performance.
- Check your system configuration (CPU, Chipset) to ensure compatibility for maximum performance.
Specs in practice
- PCIe 4.0 x4 / 5.0 x2
- The interface standard used for data transfer; ensures compatibility with modern high-speed storage slots.
- TBW (Total Bytes Written)
- A measure of the drive's endurance; indicates the total amount of data that can be written to the drive before it may need replacement.
Images and diagrams

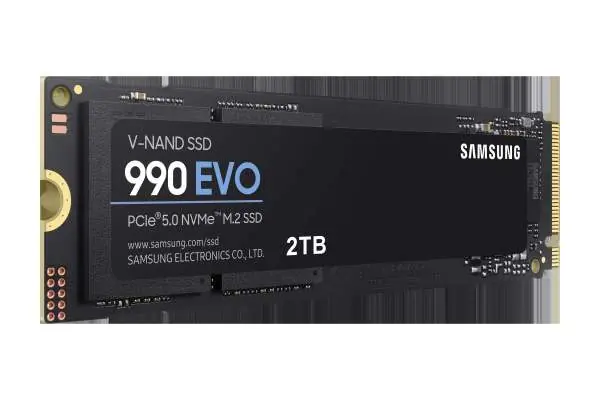

- The SSD includes a heat-spreading label designed to manage thermal output during operation.
Model compatibility
- Compatible with PCIe 4.0 x4 and PCIe 5.0 x2 interfaces.
- Performance may vary depending on SSD firmware, system hardware, and configuration.
