Automatic Toilet Flushing Unit Sanela SLW 02A/SLW 02F User Guide

Quick guide from the manual

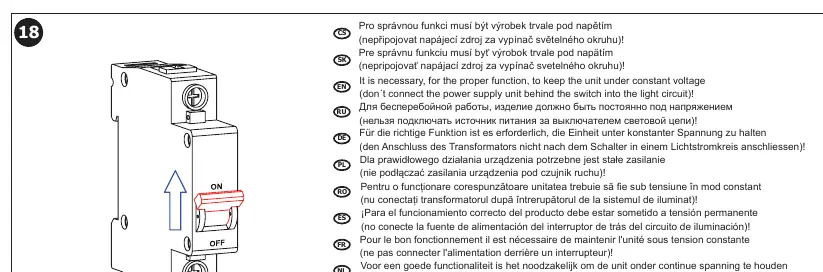

The Sanela SLW 02A and SLW 02F are automatic toilet flushing units designed for the SLR 21 installation system. Important: The unit must be kept under constant voltage. Do not connect the power supply behind a light switch, as this will disrupt operation. Ensure the water pressure is between 0.1 and 0.6 MPa and the sieve mesh size is no larger than 90 µm.

Installation

Before installation, ensure you have the SLR 21 mounting frame. Follow these steps for proper setup:

1. Ensure the power supply is disconnected before starting electrical work.
2. Install the SLR 21 frame according to the manufacturer's instructions.
3. Connect the 24 V DC power supply. Ensure the connection is constant and not controlled by a light switch.
4. Route the cables carefully to avoid damage.
5. Secure the flushing unit into the frame using the provided screws and components.
6. Verify all connections are tight and the unit is properly seated before turning on the power.

Operation and Settings

The unit operates automatically via an infrared sensor. You can adjust the flushing parameters using the SLD 03 remote control or by utilizing the factory settings.

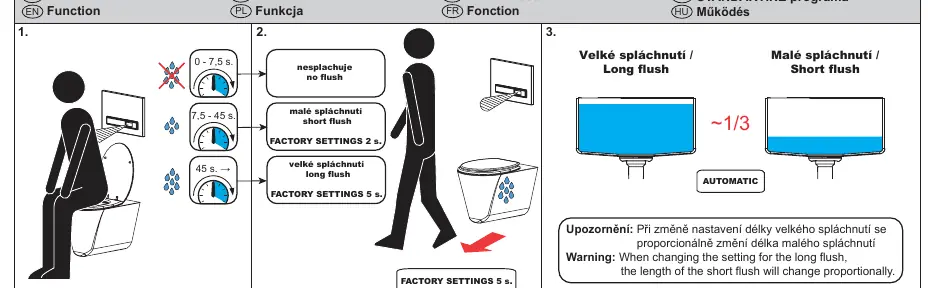

• Factory Settings: The unit comes pre-configured. Changing the long flush duration will proportionally change the short flush duration.
• Manual Flush: A manual flush button is available for override.
• Sensor Range: The sensor range is adjustable (0.3 - 0.7 m).

Maintenance

Regular maintenance ensures the longevity of the flushing unit:

• Sieve Cleaning: Periodically check and clean the water sieve. The mesh size must be ≤ 90 µm to prevent debris from entering the valve.
• Power Supply: Ensure the unit remains under constant 24 V DC power.

Technical Specifications

• Power Supply: 24 V DC.
• Operating Pressure: 0.1 - 0.6 MPa.
• Compatibility: Designed for SLR 21 installation system.
• Sensor Range: 0.3 - 0.7 m.
• Flush Duration: Adjustable (0.5 - 15.5 seconds).
