Sanela SLP 02KZ Urinal Infra-Red Flushing Unit
A comprehensive guide for the Sanela SLP 02KZ and SLP 02KVZ urinal infra-red flushing unit. Includes installation steps, wiring diagrams, parameter adjustments, and maintenance instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sanela SLP 02KZ and SLP 02KVZ are infra-red urinal flushing units designed for automatic operation. Crucial: The unit must be connected to a constant voltage power supply. Do not connect the power supply behind a light switch, as this will cause malfunctions and prevent the unit from operating correctly.
Installation
The unit requires a mounting box installation. Ensure the water pressure is between 0.1 and 0.6 MPa. The sieve dimension must be less than or equal to 90 µm to prevent clogging of the electromagnetic valve.
Electrical Connection
The system operates on 230V AC input, which is converted to 24V DC for the electronics. Follow the wiring diagram carefully: connect the power supply unit to the mains, and then connect the 24V DC output to the electronics unit. Ensure all connections are secure and protected.
Parameter Adjustment

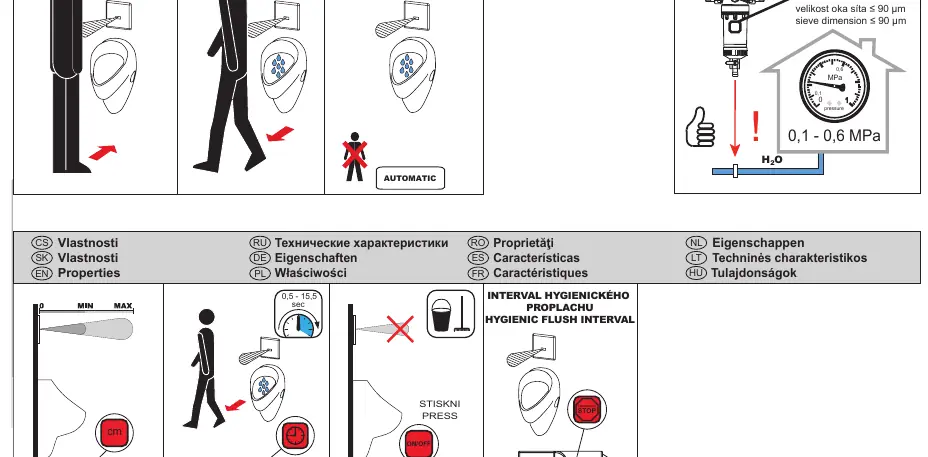

Parameters such as flushing time, sensor range, and hygienic flush interval can be adjusted using the SLD 03 universal remote control. The unit supports various settings for hygienic flushing intervals (8, 24, 64, or 72 hours).
Maintenance
Perform an annual check of the electromagnetic valve sieve to ensure it is not clogged. Clean stainless steel components using only water, soap, and a soft cloth. Do not use aggressive or abrasive cleaning agents. We recommend using the SLA 37 cleaning product for maintenance.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit not flushing or malfunctioning
Ensure the unit is under constant voltage and not connected to a light switch circuit.
Reduced water flow
Check the electromagnetic valve sieve for debris and clean if necessary.
Before use
- Verify water pressure is between 0.1 and 0.6 MPa.
- Ensure the power supply is connected to a constant voltage source.
- Check that the sieve dimension is <= 90 µm.
- Confirm all electrical connections are secure.
- Ensure the unit is not connected behind a light switch.
Specs in practice
- Water Pressure
- 0.1 - 0.6 MPa required for proper operation.
- Sieve Dimension
- Must be <= 90 µm to prevent valve clogging.
Images and diagrams
- Wiring diagram shows 230V AC input to the power supply and 24V DC output to the electronics.
- Installation diagram details the 140mm x 170mm mounting box dimensions.
Model compatibility
- Requires SLD 03 universal remote control for parameter adjustment.
- SLA 02 inlet fitting recommended for urinals with back water inlet.
- SLR 02 mounting frame recommended for plasterboard installations.
