User Manual for Sanela SLP 02KZX Infrared Urinal Flusher
Quick guide for the Sanela SLP 02KZX infrared urinal flusher. Includes technical specifications, installation overview, and configuration details via Bluetooth.
Table of contents
Quick Guide
The Sanela SLP 02KZX is an infrared urinal flusher designed for automatic operation. It detects the presence of a user and triggers a flush after the user leaves the detection zone. The device requires a 230V AC power supply and can be configured via the Sanela Control Bluetooth app or the SLD 03 remote control.
Product Features
- Bluetooth Control: Parameters can be adjusted using the Sanela Control app (available on App Store and Google Play).
- Automatic Detection: Reacts to a person within 0.7m for longer than 7.5 seconds.
- Automatic Flushing: Flushes after the user leaves the detection zone.
- Adjustable Settings: Flush time is adjustable from 0.5 to 15.5 seconds.
- Hygiene Flush: Automatic flush occurs 24 hours after the last valve activation.
- Flow Regulation: Water flow can be regulated via a ball valve.
- Design: Matte finish stainless steel cover.
Technical Specifications
- Power Supply: 230V AC / 50 Hz
- Power Consumption: 7 W
- Detection Range: 0.6 - 0.75 m
- Recommended Operating Pressure: 0.1 - 0.6 MPa
- Flow Rate: 18 l/min (approximate)
- Water Connections: G 3/4" external thread (inlet and outlet)
- Cover Dimensions: 170 x 170 x 10 mm
- Mounting Box Dimensions: 140 x 140 x 75 mm

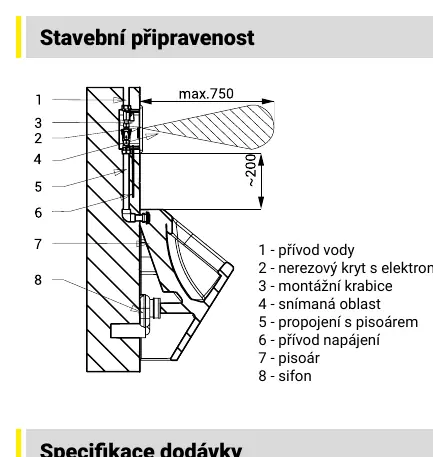

Installation Overview
The installation involves integrating the mounting box into the wall and connecting the water supply and power. The system consists of the following components:
- Water supply
- Stainless steel cover with electronics
- Mounting box
- Detection area
- Connection to urinal
- Power supply
- Urinal
- Siphon
Configuration and Accessories
Parameters such as flush time and sensor sensitivity can be configured using the Sanela Control app (Bluetooth) or the SLD 03 remote control. Recommended accessories include:
- SLD 03: Remote control for parameter settings.
- SLA 02: Inlet fitting with seal for urinals with rear inlet.
- SLR 07: Mounting frame for Sanela mounting boxes.
- SLR 22: Frame for drywall construction, for floor and rear wall anchoring.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Device does not flush
Check if the 230V AC power supply is connected. Verify that the water pressure is within the recommended range (0.1 - 0.6 MPa).
Sensor not detecting user
Ensure the user is within the 0.6 - 0.75m detection range for at least 7.5 seconds.
Before use
- Verify water pressure is between 0.1 and 0.6 MPa.
- Ensure a 230V AC power supply is available at the installation site.
- Download the Sanela Control app if you intend to use Bluetooth configuration.
- Check that the mounting box is correctly installed in the wall.
Specs in practice
- Detection Range
- The distance (0.6 - 0.75m) within which the sensor detects a user.
- Operating Pressure
- The required water pressure (0.1 - 0.6 MPa) for proper valve operation.
Images and diagrams
- The installation diagram identifies the key components: 1. Water supply, 2. Stainless steel cover with electronics, 3. Mounting box, 4. Detection area, 5. Connection to urinal, 6. Power supply, 7. Urinal, 8. Siphon.
Model compatibility
- Compatible with Sanela Control app via Bluetooth.
- Compatible with SLD 03 remote control.
- Compatible with SLA 02 inlet fitting.
- Compatible with SLR 07 and SLR 22 mounting frames.
