Infrared group urinal flush valve Sanela SLP 05KBX
Quick guide for the Sanela SLP 05KBX infrared group urinal flush valve. Includes installation preparation, technical specifications, Bluetooth configuration, and system requirements.
Table of contents
Quick guide from the manual
The Sanela SLP 05KBX is an infrared group urinal flush valve designed to flush multiple urinals simultaneously. It features Bluetooth connectivity for parameter adjustments via the Sanela Control App. The system detects users in the sensor axis (approx. 200 mm from the front edge) and triggers a flush after all persons have left the monitored zone, provided they were present for longer than 7.5 seconds.

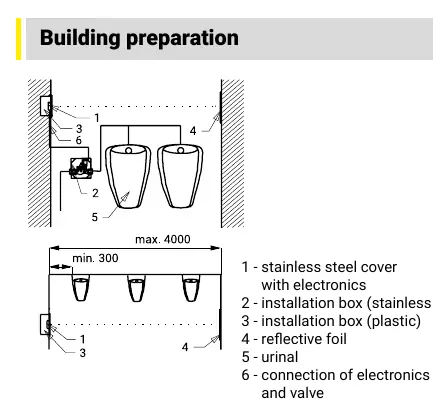

Building Preparation
Installation requires the correct positioning of the stainless steel cover with electronics, the plastic and stainless steel installation boxes, and the reflective foil. Ensure the sensor range is clear up to 3 meters. The system is designed for a group of urinals.
Technical Specifications
- Supply voltage: 6 V
- Power input: 3 W
- Range: 0.3 - 3 m
- Recommended working pressure: 0.15 - 0.6 MPa
- Flow rate: 70 l/min at 0.15 MPa
- Water inlet: Min. 32 mm cross-section, G 1" external thread
- Water outlet: G 1" external thread
- Dimensions (cover): 170 x 170 x 10 mm
Operation and Settings
Flush time is adjustable from 0.5 to 15.5 seconds. Parameter settings and communication with the electronics are managed via the Sanela Control App (Bluetooth) or the SLD 03 remote control. The system includes automatic 24-hour flushing after the last activation and battery status monitoring.
Accessories
Recommended accessories include:
- SLD 03: Remote control for parameter adjustment
- SLA 02: Inlet fitting with gasket for rear inlet urinals
- SLA 30: Reflective foil
- SLA 36: Set of 4 AA alkaline batteries (1.5 V, 2700 mAh)
- Sanela Control App: Available on App Store and Google Play
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Sensor not triggering flush
Ensure the reflective foil is correctly installed and the user is within the 3m range for longer than 7.5 seconds.
Flush time needs adjustment
Use the Sanela Control App via Bluetooth or the SLD 03 remote control to adjust flush time between 0.5 and 15.5 seconds.
Before use
- Verify water pressure is between 0.15 and 0.6 MPa.
- Ensure the reflective foil is installed.
- Check that 4 AA alkaline batteries are installed.
- Download the Sanela Control App for configuration.
- Confirm the sensor is positioned to detect users in the urinal axis.
Specs in practice
- Sensor range
- 0.3 to 3 meters; detects presence for longer than 7.5 seconds.
- Automatic flush
- Occurs 24 hours after the last valve activation.
Images and diagrams
- The building preparation diagram illustrates the placement of the stainless steel cover, installation boxes, reflective foil, and urinal connections.
Model compatibility
- Requires Sanela Control App for Bluetooth settings.
- Compatible with SLD 03 remote control.
