User Manual for Sanela SLZA 04LZ Recessed Coin and Token Machine
Quick guide for the Sanela SLZA 04LZ recessed coin and token machine. Includes installation steps, wiring diagrams, power requirements, and operational instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sanela SLZA 04LZ is a recessed coin and token machine designed to control up to eight single-phase 230V AC appliances. The unit operates on 24V DC. Important: The unit must be kept under constant voltage for proper function. Do not connect the power supply behind a light switch or motion sensor circuit.
Product description
The device is a recessed unit intended for payment-based control of appliances. It features a coin/token slot and a selection interface. It is compatible with up to 8 appliances and requires a 24V DC power supply.
Installation

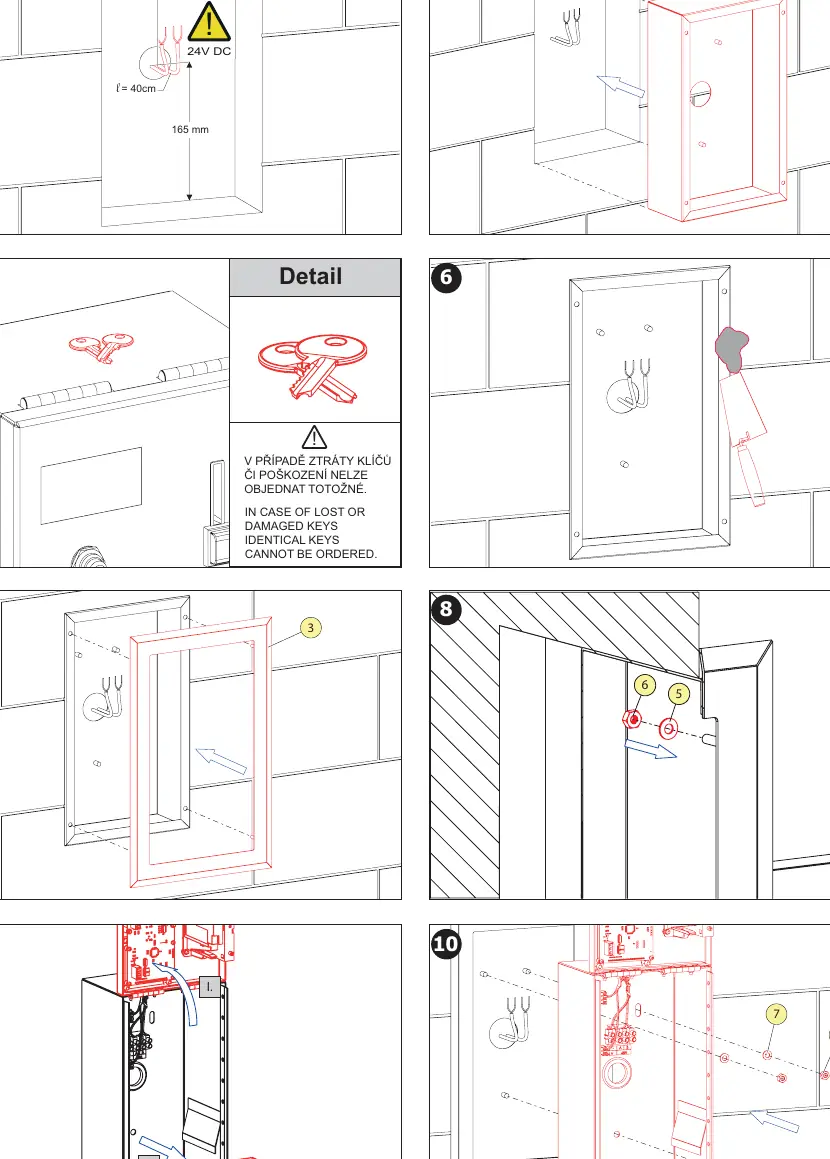

The installation requires a wall cutout. Ensure the following dimensions are prepared: 200mm (+10mm) width, 335mm (+10mm) height, and 90mm (+5mm) depth. The unit is designed for recessed mounting. Ensure all safety instructions provided with the product are read before beginning installation.
Operation

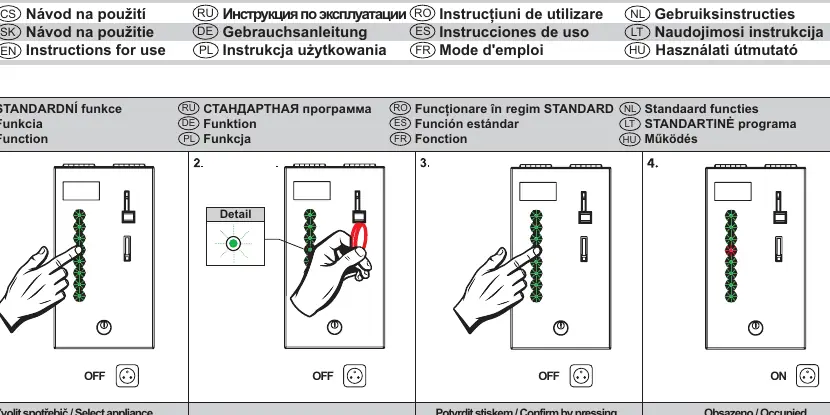

To operate the machine: 1. Select the desired appliance using the interface. 2. Confirm the selection by pressing the button. The status will change to 'Occupied' when in use.
Important warnings
- Constant Voltage: The unit must be permanently connected to power. Do not connect the power supply unit behind a switch in a light circuit.
- Keys: In case of lost or damaged keys, identical keys cannot be ordered.
Accessories
The following accessories are required or recommended for installation:
- SLZA 15A: Connector distributor on DIN rail
- SLZA 53: Connector 24V DC
- SLZA 50: Set of 50 tokens
- Various power supply units (SLZ 01Y, SLZ 01Z, SLZ 04Y, SLZ 04Z, SLZ 04X) depending on the number of appliances.
Maintenance
Regular maintenance is recommended according to the maintenance instructions available at www.sanela.eu/service-download. For technical support, service intervention, or fault resolution, contact the installation company or visit the manufacturer's website.
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit not functioning or resetting
Ensure the unit is under constant voltage. Do not connect the power supply behind a light switch or motion sensor.
Lost or damaged keys
Identical keys cannot be ordered; ensure keys are kept in a safe place.
Before use
- Verify 24V DC power supply is available.
- Ensure the wall cutout dimensions are 200x335mm.
- Confirm the power supply is not connected to a switched circuit.
- Check that all necessary accessories (SLZA 15A, SLZA 53) are on hand.
- Read the attached safety instructions.
Images and diagrams
- Wiring diagram shows the connection for 24V DC power.
- Installation steps illustrate the wall cutout and mounting process.
Model compatibility
- Designed for up to 8 single-phase appliances.
- Requires specific accessories: SLZA 15A (distributor) and SLZA 53 (connector).
