Sanela SLZA 02LM/02LN Shower Timer Installation and Usage Guide
Quick guide for installing and operating the Sanela SLZA 02LM and 02LN coin/token shower timers. Includes wiring, mounting, and power requirements.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sanela SLZA 02LM and 02LN are coin and token-operated shower timers designed for 4 to 8 showers. Crucial: The unit must be kept under constant 24V DC voltage for proper function. Do not connect the power supply unit behind a switch (e.g., a light switch circuit), as this will disrupt operation.
Product description
The system is designed for controlling shower water flow via coins or tokens. There are two main versions:
- SLZA 02LM: Direct control.
- SLZA 02LN: Interactive control.
Both models operate on 24V DC power.
Installation
Before installation, ensure you have read the attached safety instructions. The installation process involves the following steps:
- Preparation: Ensure the power supply is 24V DC and will remain constantly powered.
- Mounting: Drill holes according to the dimensions provided (8mm diameter).
- Wiring: Connect the power supply to the terminal block. Refer to the circuit diagram provided in the manual for specific terminal connections (+, -, A, B).
- Finalizing: Secure the unit to the wall.
Operation

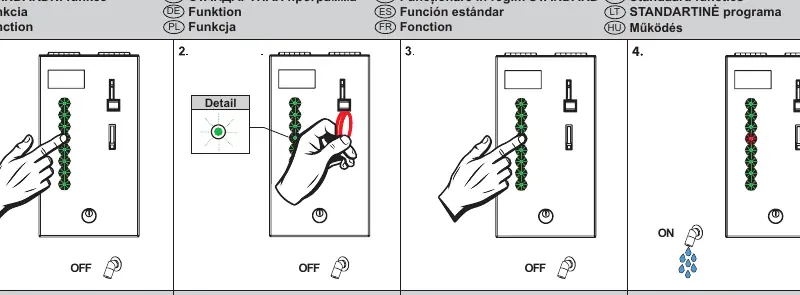

The user interface allows for simple shower selection:
- Select appliance: Choose the desired shower.
- Confirm: Press the button to confirm the selection.
- Status: The system indicates if the shower is occupied.
Maintenance and accessories
Regular maintenance is recommended according to the maintenance instructions available at www.sanela.eu/service-download. In case of lost or damaged keys, identical keys cannot be ordered. A variety of accessories are available, including different power supplies (SLZ 01Y, SLZ 01Z, SLZ 04Y/Z/X), remote controls (SLD 05), and various shower heads (SLA 03, SLA 39, SLA 40).
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit not functioning correctly
Ensure the unit is connected to a constant 24V DC power source and not behind a light switch or other interruptible circuit.
Lost or damaged keys
Identical keys cannot be ordered. Keep keys in a safe place.
Before use
- Verify 24V DC power supply is available.
- Ensure the power supply is not connected to a switched circuit.
- Check that the mounting surface is suitable for drilling 8mm holes.
- Confirm the model type (LM for direct, LN for interactive control).
Images and diagrams
- The wiring diagram shows the terminal block connections for 24V power and control signals (A/B).
- Dimensions diagram provides the necessary spacing for mounting (165mm width, 300mm height).
Model compatibility
- Requires specific Sanela power supplies (e.g., SLZ 01Y, SLZ 04Y).
- Compatible with Sanela shower heads (SLA 03, SLA 39, SLA 40).
- Remote control SLD 05 is required for parameter adjustments.
