Sanela SLO 01A/SLO 01C Automatic Wall Mounted Hand Dryer Instruction Manual
Quick guide for the Sanela SLO 01A and SLO 01C automatic hand dryers. Includes installation steps, technical specifications, safety guidelines, and maintenance procedures.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the installation, operation, and maintenance of the Sanela SLO 01A (white) and SLO 01C (black) automatic wall-mounted hand dryers. Ensure the power supply is compatible with the 1750W requirement before installation.
Installation
The device must be installed by qualified personnel. Before starting, read the attached safety instructions thoroughly.
- Wall Mounting: Use the provided fixing kit. Drill holes with an 8mm diameter according to the technical drawing.
- Electrical Connection: The device can be connected via a mains plug (130cm cable) or a hard-wired connection. Ensure the power supply is 220V-240V, 50-60Hz.
- Concealed Wiring (Option B): If using a concealed wall box, ensure the wiring is prepared according to the technical specifications (110mm diameter hole).
Operation
The dryer features an automatic sensor. Simply place hands under the unit to start. The factory setting for the drying cycle is 30 seconds. The device includes a safety system that prevents continuous operation if the photocells are partially covered; remove the obstruction to restore normal function.
Maintenance
Always disconnect the device from the mains before performing maintenance.
- Cleaning: Use a soft cloth, water, and a neutral detergent.
- Water Container: Empty the water container at least once a week.
- Safety: Do not cover air nozzles or the air inlet grille. Do not insert objects into the dryer.
Technical Data
- Power Supply: 220V - 240V, 50-60 Hz
- Power Consumption: 1450 W
- Protection: Class II, IP 34
- Air Speed: 410 km/hr
- Drying Time: 3 s - 30 s
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Device runs continuously
The photocells are likely partially covered. Remove any obstruction from the sensor area.
Device does not start
Ensure the device is connected to the mains and the power supply is active. Check if the air inlet or nozzles are blocked.
Before use
- Verify power supply and socket are rated for 1750W.
- Ensure the wall surface is suitable for mounting.
- Read all attached safety instructions.
- Check that the water container is empty.
Images and diagrams

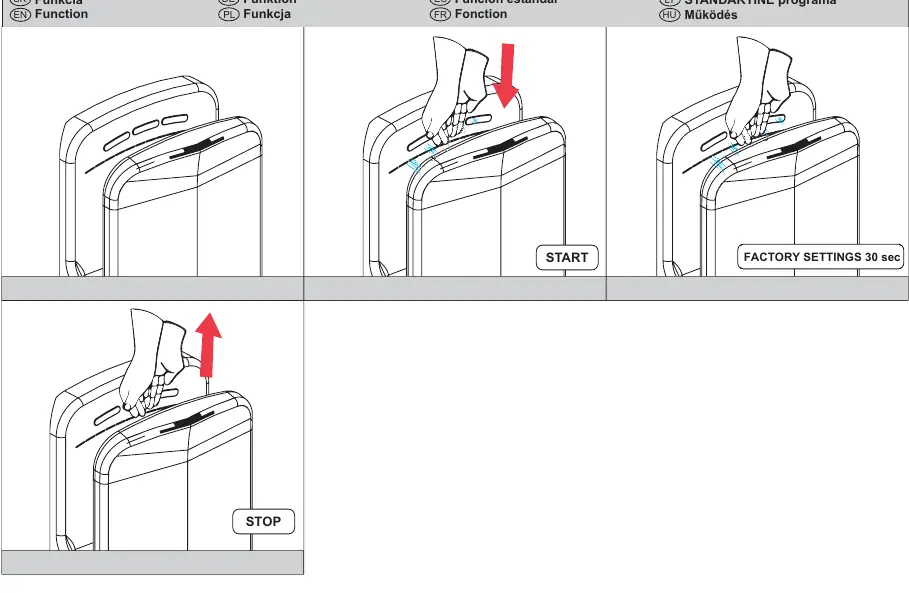

- Page 1: Shows the sensor activation area and factory settings.
- Page 2: Exploded view of components and wall mounting dimensions.
- Page 3: Technical drawing for wall preparation and electrical installation.

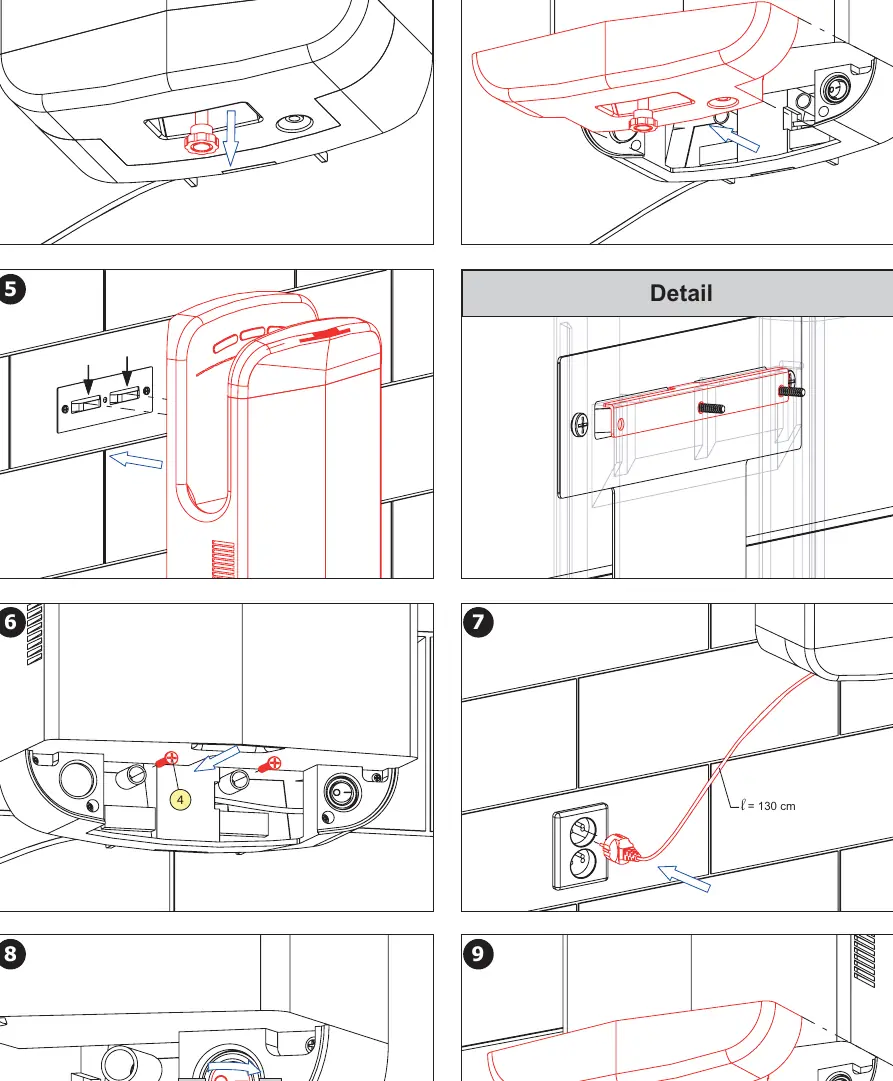

- Page 4: Step-by-step mounting and electrical connection sequence.

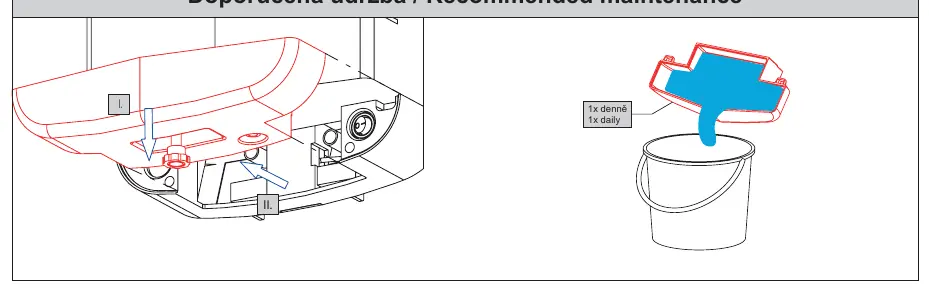

- Page 7: Maintenance steps including emptying the water container.
Model compatibility
- Designed for wall mounting only.
- Compatible with 220V-240V AC power systems.
