Sanela SLP 01ZX Time-Controlled Flush Valve User Guide
Quick guide for the Sanela SLP 01ZX time-controlled flush valve. Learn about installation, Bluetooth configuration, technical specifications, and flush settings.
Table of contents
Quick guide from the manual
The Sanela SLP 01ZX is a time-controlled flush valve designed for urinal troughs. It features Bluetooth connectivity for configuration via the Sanela Control app, a vandal-proof design, and programmable flush intervals and durations. The unit requires a 230V AC power supply for operation.
Product Overview
The system includes a stainless steel cover with integrated electronics and a Bluetooth module, a mounting box with fittings, and a power supply. It is specifically designed for use with urinal troughs SLPN 02 (Z) through SLPN 05 (Z).
Technical Specifications
- Operating voltage: 230 V AC/50 Hz
- Recommended working pressure: 0.15 - 0.6 MPa
- Flow rate: 70 l/min at 0.15 MPa
- Water inlet: Min. 32 mm cross-section, PN 16, external thread G 1"
- Water outlet: External thread G 1"
- Cover dimensions: 170 x 170 x 10 mm
- Mounting box dimensions: 145 x 155 x 100 mm
Installation
The installation involves preparing the wall for the mounting box and connecting the water supply and power input. Ensure the mounting box is securely installed and that the water supply and power lines are correctly routed as indicated in the technical diagram.
Configuration and Settings
All parameter settings are managed via the Sanela Control app, available for download on the App Store and Google Play. Key adjustable features include:
- Flush interval: Adjustable from 00:01 to 99:59 hours.
- Flush duration: Adjustable from 0.5s to 15.5s.
- Scheduling: 7-day adjustable schedule for individual days or the entire week, plus a 24-hour schedule for activating flushes within the day.
Note: After switching on the 230 V AC power supply, the SLP 01ZX will start flushing according to the set interval.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Flush not activating
Verify that the 230V AC power supply is connected and active.
Incorrect flush timing
Adjust the flush interval and duration settings using the Sanela Control app.
Low water flow
Ensure the water pressure is within the recommended range of 0.15 - 0.6 MPa.
Before use
- Ensure a 230V AC/50Hz power supply is available.
- Verify water pressure is between 0.15 and 0.6 MPa.
- Check that the water inlet has a minimum cross-section of 32 mm.
- Download the Sanela Control app from the App Store or Google Play.
- Confirm compatibility with urinal troughs SLPN 02 (Z) - SLPN 05 (Z).
Specs in practice
- Operating voltage
- Requires 230V AC/50Hz power source.
- Flush interval
- Time between flushes, adjustable from 1 minute to 99 hours and 59 minutes.
- Flush duration
- Length of the flush, adjustable from 0.5 to 15.5 seconds.
- Working pressure
- Optimal performance requires pressure between 0.15 and 0.6 MPa.

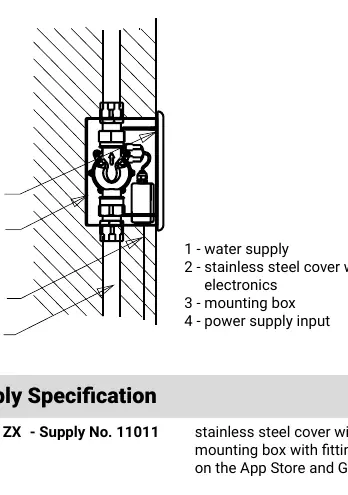

Images and diagrams
- 1: Water supply connection.
- 2: Stainless steel cover with electronics.
- 3: Mounting box.
- 4: Power supply input.
Model compatibility
- Compatible with urinal troughs SLPN 02 (Z) - SLPN 05 (Z).
