Saris Solo 101B Trunk Car Rack Installation Guide
Quick installation and safety guide for the Saris Solo 101B trunk car rack. Learn how to mount the rack, secure your bike, and maintain the equipment safely.
Table of contents
Manual images
Click an image to enlargeQuick installation guide
Follow these steps to install your Saris Solo 101B rack:
- Vehicle Compatibility: Check the Saris Fit Guide at www.saris.com to ensure your vehicle (Sedan, SUV, Hatchback) is approved.

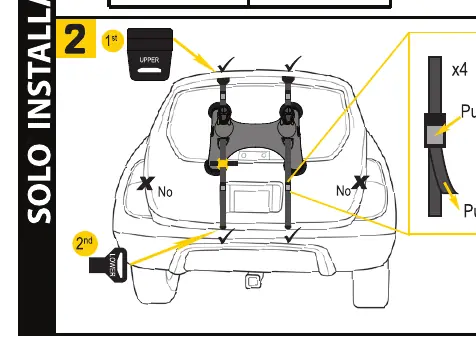

- Attachment: Secure the upper and lower straps to your vehicle. Ensure the "Upper" strap is at the top and "Lower" at the bottom. Pull straps tight.

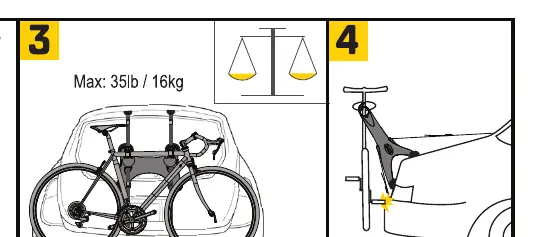

- Weight and Clearance: Do not exceed the maximum weight capacity of 35lb (16kg). Ensure there is at least 12 inches of clearance from the vehicle exhaust.
- Bike Mounting: Mount the bike. Use pads as needed to prevent bike-to-car contact.

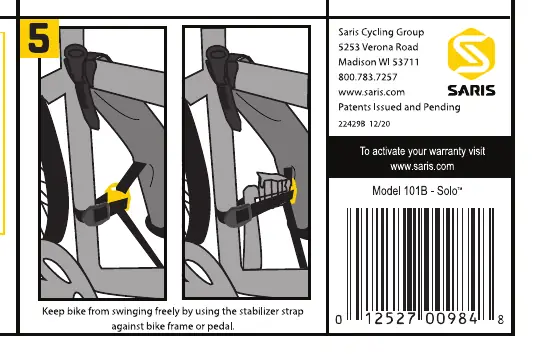

- Stabilization: Use the stabilizer strap against the bike frame or pedal to keep the bike from swinging freely.
Safety precautions
- Always check the Saris Fit Guide for vehicle compatibility.
- Do not use on off-road terrain.
- Do not exceed 65 mph (105 km/h).
- Remove the rack when not in use.
- Ensure the bike does not touch the exhaust.
- Check that all straps are tight and secure before driving.
Maintenance
- Wash the rack with soap and water.
- Use only water-soluble cleaners.
- Lubricate straps and check for loose bolts regularly.
- Check for scratches and touch up as needed.
Official resources from the manual
Practical help
Common problems
Bike swinging while driving
Use the stabilizer strap against the bike frame or pedal to secure it.
Exhaust heat damage
Ensure there is at least 12 inches of clearance between the bike and the vehicle exhaust.
Bike-to-car contact
Use protective pads as needed between the bike and the vehicle.
Before use
- Check Saris Fit Guide for vehicle compatibility.
- Ensure rack is clean and straps are in good condition.
- Verify bike weight is under 35lb (16kg).
- Check for 12" clearance from exhaust.
- Ensure all straps are tightened securely.
Specs in practice
- Max Weight Capacity
- 35lb / 16kg maximum load.
Images and diagrams
- Step 1: Verify vehicle type compatibility.
- Step 2: Secure upper and lower straps.
- Step 5: Use stabilizer strap to prevent bike sway.
Model compatibility
- Check Saris Fit Guide for specific vehicle model approval.
- Not for off-road use.
