User Manual for Norauto STRAP 100-3R Bike Rack

Quick Guide

The Norauto STRAP 100-3R is a rear-mounted bike rack designed to carry up to 3 bicycles. Before use, ensure your vehicle is listed in the compatibility table provided in the manual. The rack is only compatible with vehicles featuring a metal tailgate and spoiler.

• Maximum load: 45 kg total (max 15 kg per bike).
• Maximum speed: 130 km/h.
• Compatibility: Only for vehicles listed in the manual with metal tailgates.
• Prohibited: Do not use with electric bikes. Do not use a drill or screwdriver to tighten the frame support.

Safety Instructions

Failure to follow instructions can cause significant damage to your vehicle and endanger others. Always respect the Highway Code. Ensure the number plate and signal lights remain visible; if not, add extra ones. Never drive off-road with the rack installed. Remove all accessories (baskets, child seats) from bikes before mounting.

Vehicle Compatibility

This rack is only compatible with specific vehicles. Consult the allocation list on pages 8-15 of the manual to verify your vehicle model and the required settings (A, B, C, etc.).

Installation

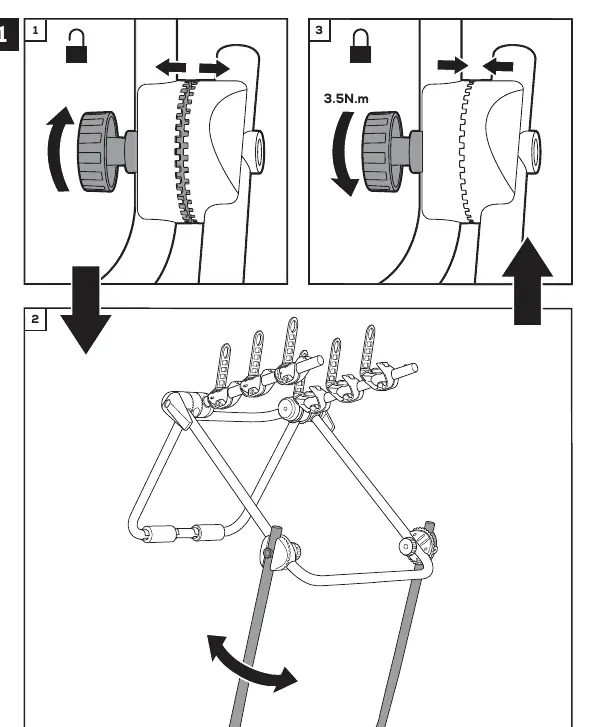

Ground Adjustment: Before mounting on the vehicle, adjust the rack angle on the ground according to the settings required for your vehicle model (see pages 18-20).

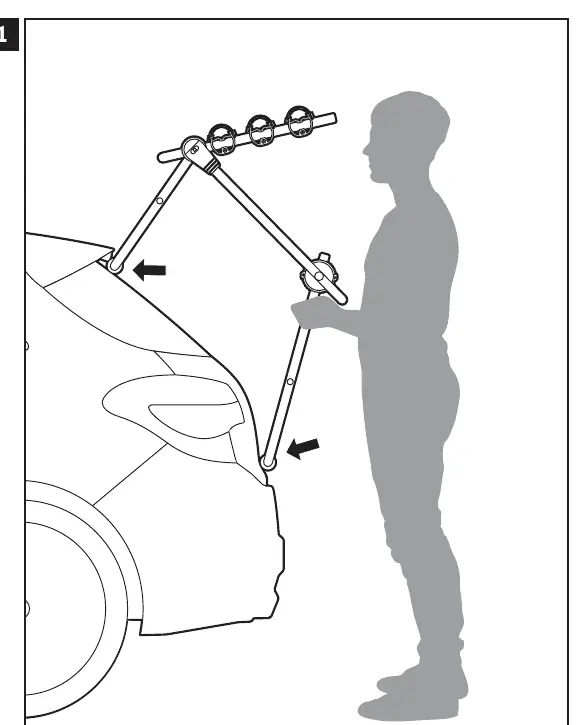

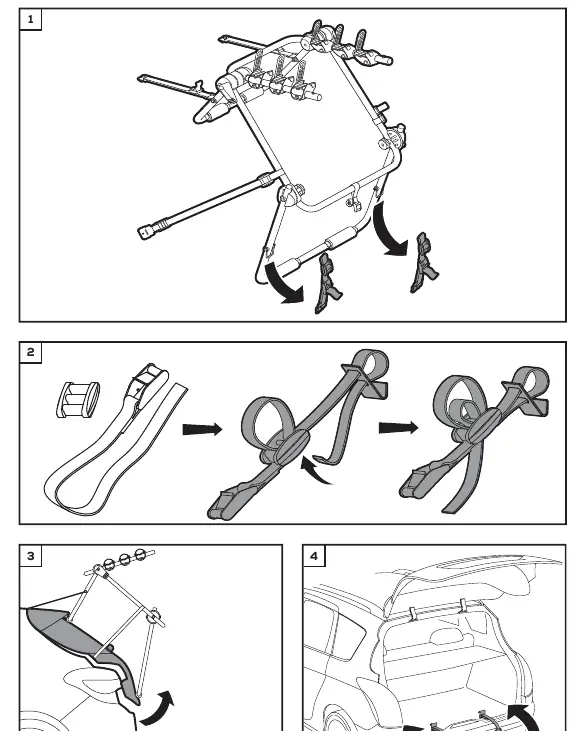

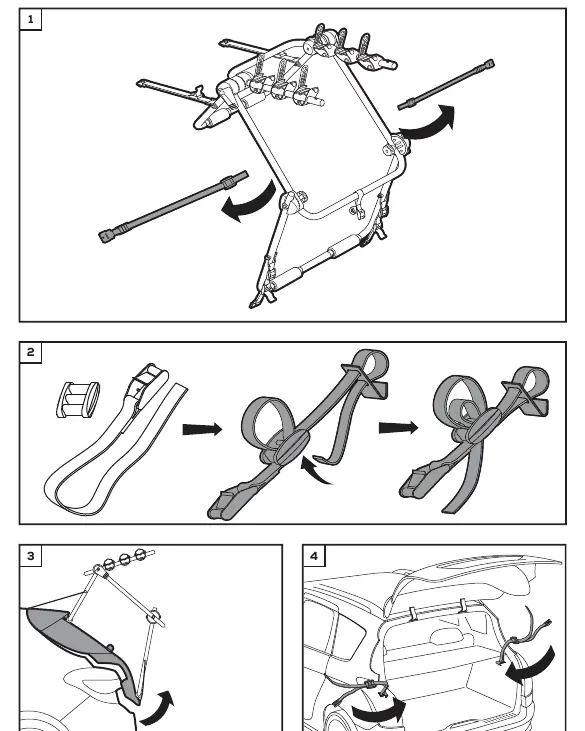

Mounting on Vehicle: Position the rack on the vehicle tailgate. Use the specific side strap attachment system (C1) and lower strap attachment system (C2) to secure the rack firmly. Ensure all straps are tightened to the recommended tension (25kg pull).

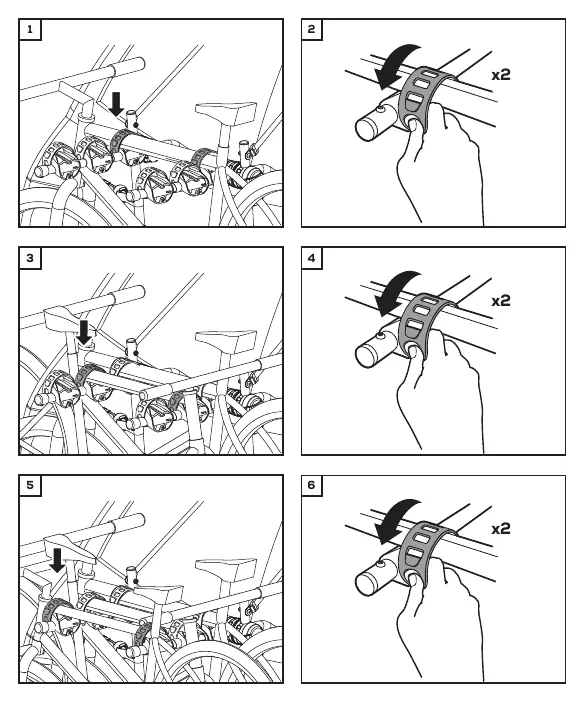

Mounting Bicycles

Place the bicycles onto the rack arms. Use the provided safety strap to secure the bikes to the rack. Ensure the load's center of gravity is as low as possible and that there is at least 20 cm of clearance between the ground and the lowest part of the load.

Maintenance

Inspect the rack before every use, checking the tension of all straps and hubs. Do not use aggressive chemical products for cleaning. Remove the rack before using automatic or high-pressure car washes. Store in a dry, well-ventilated place. In winter, rinse with water and mild soap to remove road salt.
