Schuller 225090D Pendant Light Installation Manual
A comprehensive installation and setup guide for the Schuller 225090D pendant light. Includes safety warnings, cable length configuration, and remote control instructions.
PDF source: español · summary: English
Quick answers from the manual
Quick answer
- The Schuller 225090D is a 15.8 kg pendant light requiring two-person installation. It uses an RF remote control (pre-set to channel 1) and supports dimmable LED bulbs. p. 2, 4
Key actions
- Adjust cable lengths before installing the lamp. p. 2, 4
- Ensure the remote control is set to channel 1. p. 2, 4
Problems and fixes
Remote control not working
Check that the remote is set to channel 1, matching the receiver.
p. 2, 4Show 3 more answers Show less
Maintenance and reset
- Spare bulbs are available using reference code 5035. p. 2, 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight | 15.8 kg | Total weight of the fixture | p. 2, 4 |
Where to find it in the PDF
- Assembly Instructions p. 2, 4, 6, 8
- Cable Configuration p. 3, 5, 7, 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

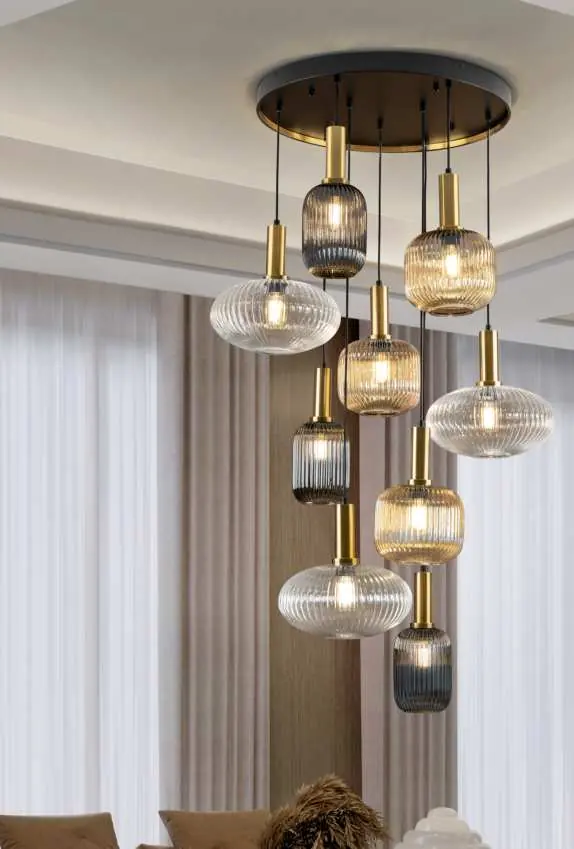

The Schuller 225090D is a heavy pendant light fixture weighing 15.8 kg. Due to its weight, installation must be performed by two people to ensure safety. The fixture includes dimmable LED bulbs and an RF remote control. Please ensure your ceiling structure is capable of supporting the weight before installation.
Installation and safety
Schuller recommends using the provided special screws and anchors for installation. Ensure the fixture is securely fixed to the ceiling. Important: Adjust the length of the cables before installing the glass shades and mounting the fixture to the ceiling (Step 3).
Cable length configuration
The lamp is designed to be configured at a 220 cm drop. The manual provides specific cable lengths for each of the nine light points (labeled A through I) to achieve this design. For other heights (up to a maximum of 3.2 meters), use the provided measurements as a reference to maintain the design proportions.
Remote control and dimming
The product includes dimmable LED bulbs, a receiver, and an RF remote control. The receiver is pre-set to channel 1. Ensure your remote control is also set to channel 1 to operate the light. If you intend to use a wall dimmer, it must be compatible with LED lighting.
Maintenance and support
The glass shades are hand-crafted and may have slight imperfections, which are accepted by quality control. Two spare bulbs are included. Schuller guarantees the availability of these bulbs for at least 5 years from the date of purchase (reference code 5035). For technical questions, contact the Schuller Technical Department via email at [email protected] or by phone at 961 601 051.
Practical help
Common problems
Remote control not responding
Ensure the remote control is set to channel 1, matching the receiver installed in the product.
Wall dimmer flickering
Ensure the wall dimmer switch is specifically compatible with LED lighting.
Before use
- Ensure two people are available for the installation process.
- Verify the ceiling can support the 15.8 kg weight of the fixture.
- Adjust cable lengths (A-I) before installing the glass shades.
- Check that the wall dimmer (if used) is LED-compatible.
Show more Show less
Specs in practice
- Max cable length
- 3.2 meters; use the provided table for configuration.
Images and diagrams

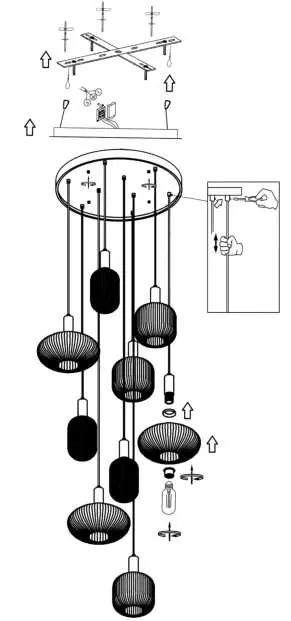

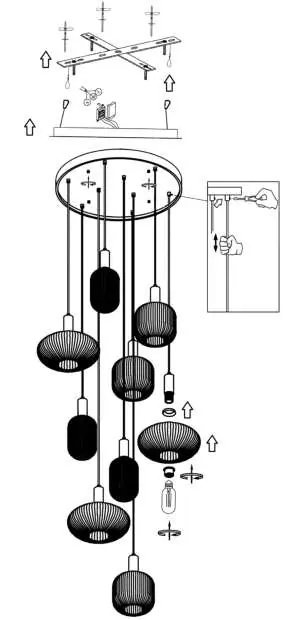

- The assembly diagram illustrates the 6-step installation process, including ceiling mounting and cable adjustment.
- The cable configuration diagram provides specific lengths for each cable (A-I) to achieve the standard 220cm drop.
Model compatibility
- Wall dimmers must be suitable for LED bulbs.
- Remote control receiver is pre-set to channel 1.
