Installation Guide for Schuller 225892D LED Pendant Light
A comprehensive installation and setup guide for the Schuller 225892D LED pendant light. Includes safety warnings, cable adjustment instructions, remote control pairing, and technical specifications.
Quick answers from the manual
Quick answer
- The Schuller 225892D is a 32 kg LED pendant light. It requires two-person installation and includes a remote control pre-set to channel 1. Cable lengths are adjustable up to 5 meters. p. 1, 3
Key actions
- Securely anchor the fixture to the ceiling using the included special screws. p. 1, 3
- Adjust cable lengths according to the provided table for a 350cm drop. p. 2, 4
First start
- Ensure the receiver and remote are on the same channel (default 1). p. 1, 3
Show 4 more answers Show less
Problems and fixes
Dimmer issues
Use a wall control suitable for LED.
p. 1, 3Maintenance and reset
- Spare bulbs are available under reference code 5035. p. 1, 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight | 32 kg | Total weight of the fixture | p. 1, 3 |
Where to find it in the PDF
- Installation and Setup p. 1, 3
- Cable Configuration p. 2, 4
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Schuller 225892D is a heavy-duty LED pendant light weighing 32 kg. Due to its weight, installation must be performed by two people. The fixture includes dimmable LEDs, a receiver, and a radio frequency remote control. The receiver is pre-set to channel 1.
Safety and Installation
Warning: This is a very heavy item (32 kg). Ensure the ceiling structure is capable of supporting this weight and that the fixture is properly anchored. Schuller recommends using the included special screws for installation.
The assembly of this lamp must be done by two people to ensure safety and proper handling.
Cable Configuration

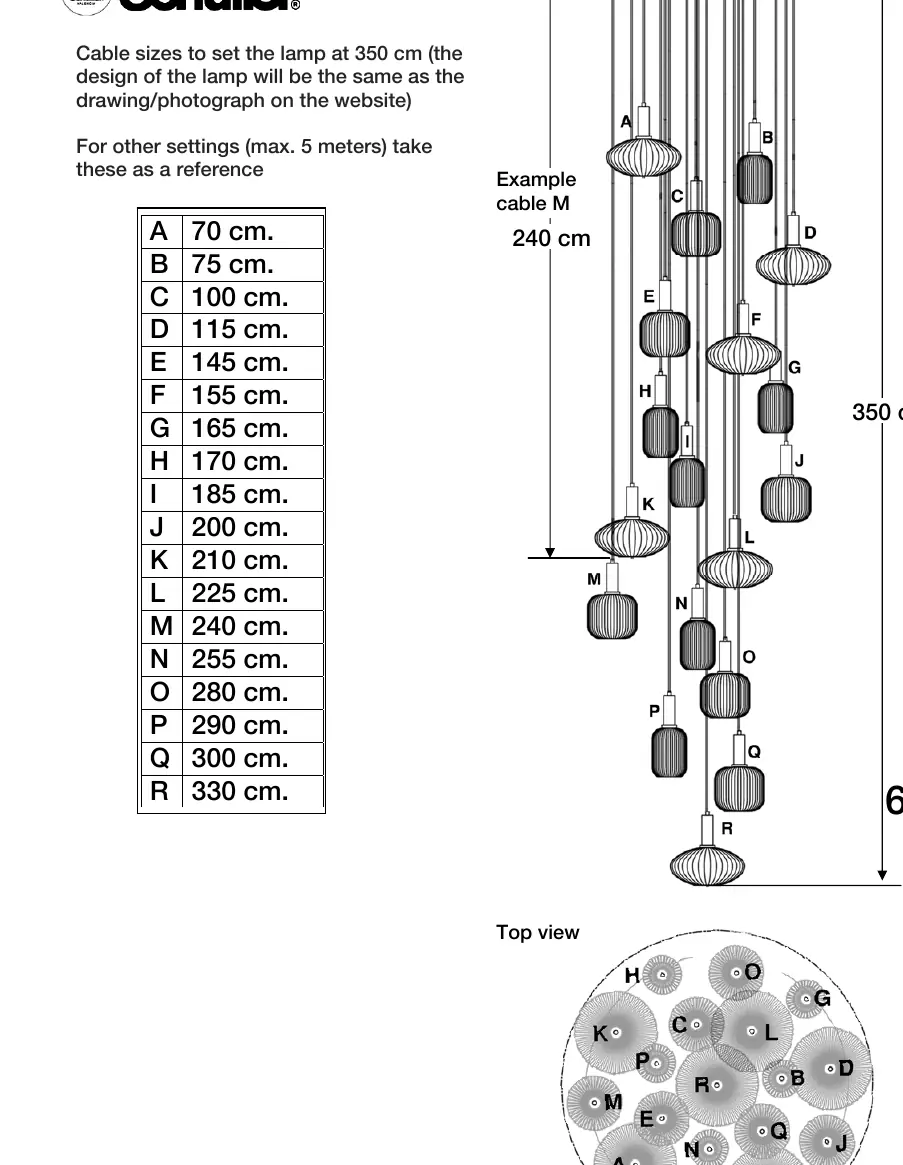

The lamp cables can be adjusted to achieve a specific design. The provided table lists the required cable lengths to set the lamp at a 350 cm drop, matching the design shown on the website. For other heights (up to a maximum of 5 meters), use these measurements as a reference.
- A: 70 cm
- B: 75 cm
- C: 100 cm
- D: 115 cm
- E: 145 cm
- F: 155 cm
- G: 165 cm
- H: 170 cm
- I: 185 cm
- J: 200 cm
- K: 210 cm
- L: 225 cm
- M: 240 cm
- N: 255 cm
- O: 280 cm
- P: 290 cm
- Q: 300 cm
- R: 330 cm
To adjust the cable length, use the screw shown in step 3. Once all cables are adjusted, secure them with the cable grip inside the rosette.
Remote Control and Dimming
The product includes dimmable LEDs and a radio frequency remote control. The receiver installed in the product is set to channel 1 by default. Ensure the remote control is set to the same channel. If you intend to use a wall control, it must be suitable for LED lighting.
Maintenance and Spare Parts
The glass shades are handcrafted, which may result in slight imperfections that are accepted by the manufacturer's quality control. Place the glass shades only after the lamp has been installed on the ceiling in its final position.
Three additional spare light bulbs are included. Schuller guarantees the availability of these bulbs for at least 5 years from the date of purchase. You may order replacements using reference code 5035.
Technical Support
For technical questions, contact the Schuller Technical Department via email at [email protected] or by phone at 961 601 051.
Practical help
Common problems
Light does not respond to the remote control
Ensure the receiver and the remote control are set to the same channel (default is channel 1).
Flickering when using a wall dimmer
Ensure the wall control is specifically suitable for LED lighting.
Before use
- Verify the ceiling can support a weight of 32 kg.
- Ensure two people are available for the installation process.
- Check that the receiver is set to channel 1.
- Verify the wall dimmer is compatible with LED technology.
- Use the included special screws for mounting.
Show more Show less
Specs in practice
- Cable Lengths
- Adjustable up to 5 meters; specific lengths provided for a 350 cm drop.
Images and diagrams
- The installation diagram illustrates the ceiling mounting plate and the cable adjustment mechanism.

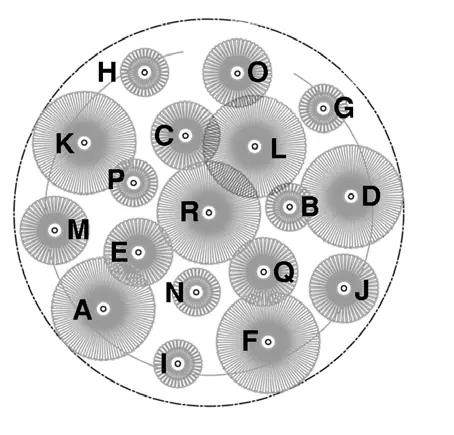

- The top view diagram shows the layout of the individual pendants (A-R).
